M23 Automotive Waterproof Connectors Round 8 Pin Cable To Board Connector
Product Overview

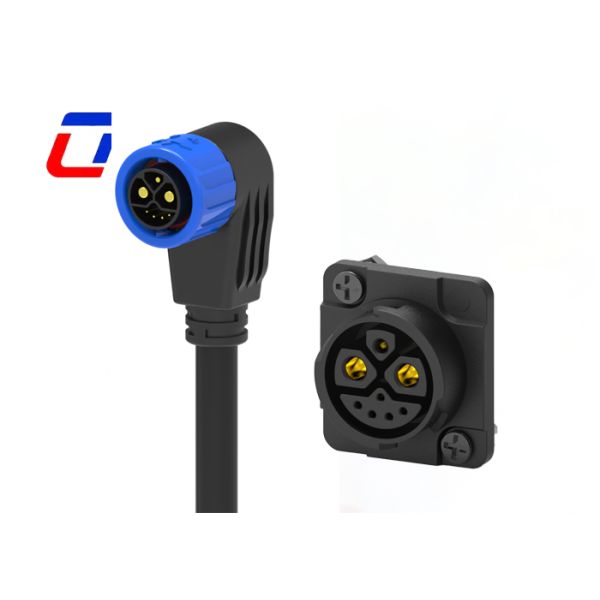

This M23 90-degree molded cable connector features a 2+1+5 pin separate pin layout with push-lock structure and IP67 waterproof design. Manufactured through integrated molding process for firm cable-to-connector connection. The 90-degree bending design accommodates narrow installation spaces while enabling precise partitioned transmission of power and signals. Widely used in industrial automation equipment, CNC machine tools, sensors, outdoor monitoring equipment and other scenarios requiring stable, reliable waterproof circuit connections in complex environments.

Application Industries
  • Growth Lights
  • Communications Application
  • Product Coding Machines
  • Inventory Product Coding
  • Inkjet Systems
  • Solar System
  • Industrial Inkjet Equipment
  • Electric Power Equipment
  • Laboratory Forensic & Pathology Equipment
  • Communications Equipment
  • Heavy Machinery
Technical Features
  • 90-Degree Molded Structure for Narrow Spaces: 90-degree bending integrated molding design saves installation space, ideal for narrow areas; precise molding ensures regular cable routing to prevent damage from twisting and pulling.
  • 2+1+5 Pin Partitioned Layout for Precise Transmission: Separate pin design (2-pin + 1-pin + 5-pin) corresponds to different power circuits and signal channels, preventing interference between signal types; high-conductive metal pins with minimal contact resistance and transmission loss.
  • Push-Lock Design for Firm Connection: Convenient push-type locking structure simplifies plugging/unplugging; tight fit provides excellent shock resistance and anti-fall performance against vibration and external pulling.
Electrical Parameters
Number of Poles 8pin waterproof connector
Current Rating 50+15A +5Amax.
Voltage Rating 300VAC max
Durability Voltage 1500VAC @ 60 s.
Technical Parameters
Contact Resistance 10 mΩ max
Insulation Structure 500 MΩ at 500VDC
Operating Temperature -40°C ~ +105°C
IP Class IP67 (1m / 30min) when mated
Mold Material PA66
Contact/Terminal Material Gold Plated Brass
Seal Material Silicone
Operation Parameters
Voltage Rating 600VAC max
Current Rating 50A max
Min Wire Size OD 3.0mm ~ 6.0mm
Max Wire Size OD 8.0mm ~ 16.0mm
Max Cable Cross Section Area 0.5mm² ~ 10.0mm²
Frequently Asked Questions
Q1: Are you a factory or trading company?
We are a factory located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China.
Q2: Can I have custom label?
Yes, we support private labeling and custom packaging. Our professional design team can assist with packaging design requirements.
Q3: What payment methods do you accept?
We accept T/T (Telegraphic Transfer), L/C (Letter of Credit), PayPal, and West Union. For large orders, standard terms are 30% down payment with 70% balance before shipment.
Q4: How many materials you can provide?
We offer various materials for connectors (PVC/Nylon) and cables (PVC/Rubber/Silicone). Materials can be customized according to your specific requirements.
