M19 6 pin IP67 male female connector dustproof water tight connector For Signal
M19 6 pin IP67 male female connector dustproof water tight connector For Signal
M19 6 pin IP67 male female connector dustproof water tight connector For Signal
M19 6 pin IP67 male female connector dustproof water tight connector For Signal
M19 6 pin IP67 male female connector dustproof water tight connector For Signal
M19 6 pin IP67 male female connector dustproof water tight connector For Signal
M19 6 pin IP67 male female connector dustproof water tight connector For Signal
M19 6 pin IP67 male female connector dustproof water tight connector For Signal
Specifications
Current :
10A
Connecting mode :
Push locking
Flame-resistant rating :
UL94-V0
Rated voltage :
300V
Brand Name :
Ulinkcon
Model Number :
M19
Certification :
CE/Rohs
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T,D/A,D/P,L/C
Supply Ability :
100000 pairs each month
Delivery Time :
3~6 working days
Packaging Details :
High Quality export carton
Number of Pins :
6Pin
Waterproof Rating :
IP67
Description

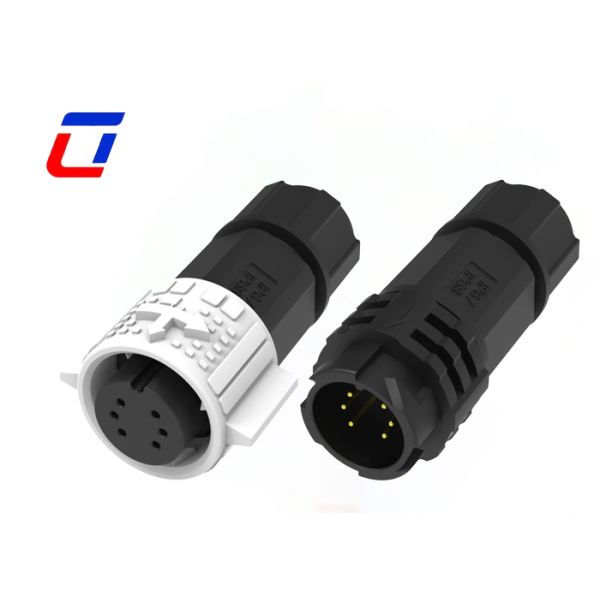

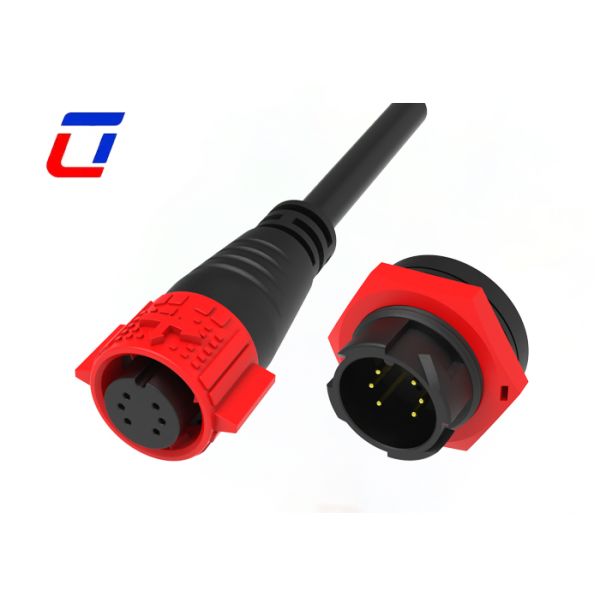

M19 6 pin IP67 male female connector dustproof water tight connector For Signal


Description of Industrial Waterproof Circular Connector


This M19 6-pin male-female connector features IP67 dustproof and waterproof performance as its core protection, specially designed for signal transmission scenarios. The precise 6-pin layout enables independent transmission of multiple signal channels, the male-female docking is smooth, and the PA66 housing is sturdy and durable, making it a reliable choice for signal connection in complex environments.

Performance focuses on signal stability and protection: gold-plated copper pins reduce transmission loss and ensure signal integrity; IP67 dustproof and waterproof rating can resist water immersion, spray and dust intrusion. The anti-electromagnetic interference design avoids signal crosstalk and is compatible with various low-voltage signal systems.

The male-female structural design is practical: M19 specification with foolproof alignment to eliminate wrong insertion; PA66 housing resists temperature from -40℃ to 105℃, suitable for harsh working conditions; the tail is compatible with 0.5-1.5mm² signal wires, integrating sealing and locking to improve connection reliability.

Widely used in security monitoring, industrial sensors, outdoor testing equipment, smart home and other scenarios, the dustproof and waterproof characteristics are suitable for complex environments, and the male-female quick-connect design makes signal connection and maintenance more efficient.

Main Feature


  • Push lock quick release system
  • Multic-core options: 2Pin,3Pin,4Pin,5Pin for power
  • 3+2,3+3,3+4,3+5,2+20Pin is Power and signal combination
  • 9Pin,10Pin,12Pin,14Pin,16Pin,18Pin for signal
  • Field assembly version:both wire to wire and wire to board options
  • High current rated waterproof connector good choice up to 10A for long time working
  • Cable assembly service supported, welcome to custom
  • OEM/ODM welcome


Electrical Parameters
Number of Poles 6Pin waterproof connector
Current Rating 10A max
Voltage Rating 300VAC max
Durability Voltage 1000VAC @ 60 s.


Technical Parameters
Contact Resistance 10 mΩ max
Insulation Structure 500 MΩ at 500VDC
Operating Temperature -40°C ~ +105°C
IP Class IP67 (1m / 30min)
Mold Material PA66
Contact/Terminal Material Gold Plated Brass
Seal Material Silicone


Application industries


  • Communications Application
  • product coding machines
  • inventory product coding
  • inkjet systems
  • Solar System
  • industrial inkjet equipment
  • Electric power equipment
  • Laboratory forensic&pathology equipment
  • Communications equipment
  • Heavy machinery


Production Dimension


More Technical Details




FAQ


Q1:How to track my shipment?

A1:Once the goods are shipped, we will send you the tracking number and logistics platform link.You can track the real - time status online or contact our team for updates.

Q2:Do you accept other payment currencies besides USD?

A2: Our default currency is USD, but we can also accept EUR, GBP, or other major currencies. Please confirm the exchange rate with our sales team when placing the order.

Q3:Who is responsible for customs clearance? Do you provide necessary documents?

A3: We will provide complete customs clearance documents (commercial invoice, packing list, bill of lading, certification reports). Customs clearance fees and duties are borne by the buyer (EXW/FOB terms). We can assist with document preparation if needed.
