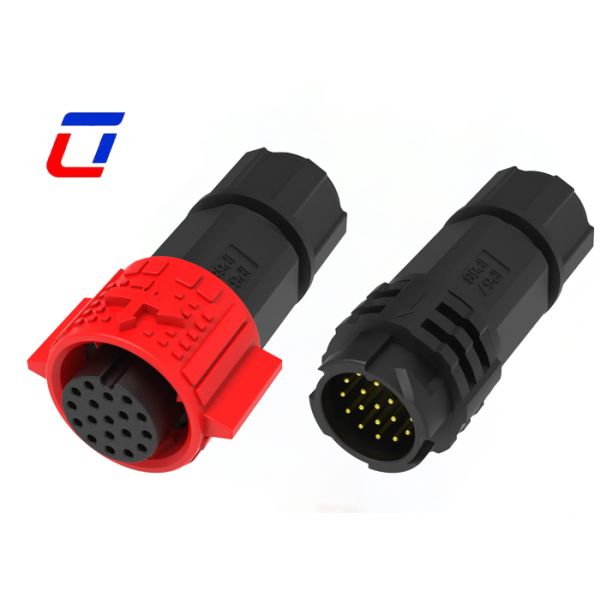

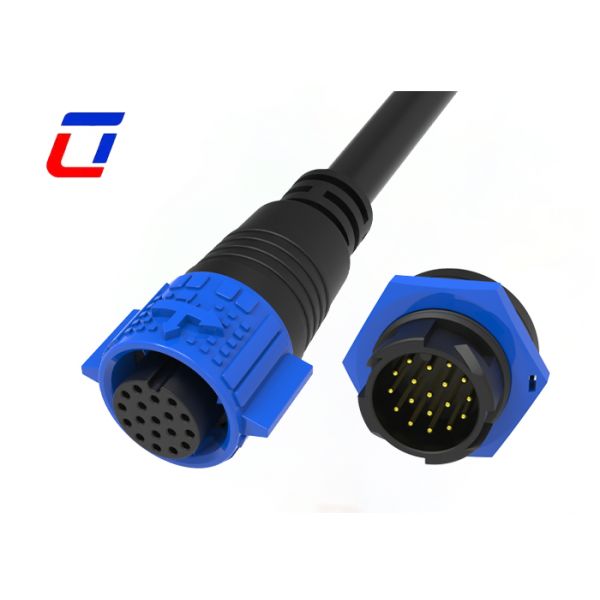

PA66 18 Pin M19 Circular Connector OEM Low Voltage Wire Connectors Waterproof
PA66 18 Pin M19 Circular Connector OEM Low Voltage Wire Connectors Waterproof
PA66 18 Pin M19 Circular Connector OEM Low Voltage Wire Connectors Waterproof
PA66 18 Pin M19 Circular Connector OEM Low Voltage Wire Connectors Waterproof
PA66 18 Pin M19 Circular Connector OEM Low Voltage Wire Connectors Waterproof
PA66 18 Pin M19 Circular Connector OEM Low Voltage Wire Connectors Waterproof
PA66 18 Pin M19 Circular Connector OEM Low Voltage Wire Connectors Waterproof
PA66 18 Pin M19 Circular Connector OEM Low Voltage Wire Connectors Waterproof
Specifications
Brand Name :
Ulinkcon
Model Number :
M19
Certification :
CE/Rohs/TUV/UL
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T,D/P,L/C,D/A,Western Union,MoneyGram
Supply Ability :
100000 pairs Montly
Delivery Time :
3~6working days
Packaging Details :
1.Plastic bag;2.Carton;3.As per customer's requirements
Pin :
18Pin
Current rating :
5A
Rated voltage :
300V
Flame-resistant rating :
UL94-V0
Connector type :
Male Female connector
Material :
Nylon
Description
PA66 18 Pin M19 Circular Connector - OEM Low Voltage Wire Connectors Waterproof
M19 18 Pin Circular Connector for Outdoor Signal Applications
Product Overview
Professional-grade M19 circular connectors designed for reliable outdoor signal transmission with quick-lock mechanism and waterproof protection.
Key Features
  • PA66 engineering plastic shell with superior strength and weather resistance
  • M19 circular structure for precise docking and vibration resistance
  • Push-lock quick release system for easy connection
  • Multiple pin configurations available: 2-18 pin options
  • Power and signal combination variants: 3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin, 2+20Pin
  • Field assembly versions: wire-to-wire and wire-to-board options
  • 20A current rating for continuous operation
  • Cable assembly services available
  • OEM/ODM customization supported
Material Specifications
Shell Material: High-quality PA66 engineering plastic with excellent mechanical strength, impact resistance, and deformation resistance. Resistant to high/low temperatures, UV aging, and corrosion for stable long-term performance in complex outdoor environments.
Electrical Parameters
Parameter Specification
Number of Poles 18 Pin
Current Rating 5A maximum
Voltage Rating 300VAC maximum
Durability Voltage 1500VAC @ 60 seconds
Technical Parameters
Parameter Specification
Contact Resistance 10 mΩ maximum
Insulation Structure 500 MΩ at 500VDC
Operating Temperature -40°C to +105°C
IP Class IP67 (1m / 30min) when mated
Mold Material PA66
Contact/Terminal Material Gold Plated Brass
Seal Material Silicone
Operation Parameters
Parameter Specification
Voltage Rating 300VAC maximum
Current Rating 5A maximum
Minimum Wire Size OD 3.0mm - 6.0mm
Maximum Wire Size OD 8.0mm - 10.0mm
Maximum Cable Cross Section Area 0.5mm² - 2.5mm²
Application Industries
  • Growth Lights
  • Communications Equipment
  • Product Coding Machines
  • Inventory Product Coding Systems
  • Inkjet Systems
  • Solar Systems
  • Industrial Inkjet Equipment
  • Electric Power Equipment
  • Laboratory Forensic & Pathology Equipment
  • Heavy Machinery
Product Design
PA66 18 Pin M19 Circular Connector OEM Low Voltage Wire Connectors Waterproof PA66 18 Pin M19 Circular Connector OEM Low Voltage Wire Connectors Waterproof
Frequently Asked Questions
Are you a factory or trading company?
We are a factory located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China.
How to track my shipment?
Once goods are shipped, we provide tracking numbers and logistics platform links for real-time status updates.
Can I pay after receiving the goods?
For first-time cooperation, advance payment is required. Flexible payment terms available for long-term trusted clients after successful orders.
How many materials can you provide?
We offer various materials including PVC/Nylon for connectors and PVC/Rubber/Silicone for cables. Custom material selection available based on requirements.
