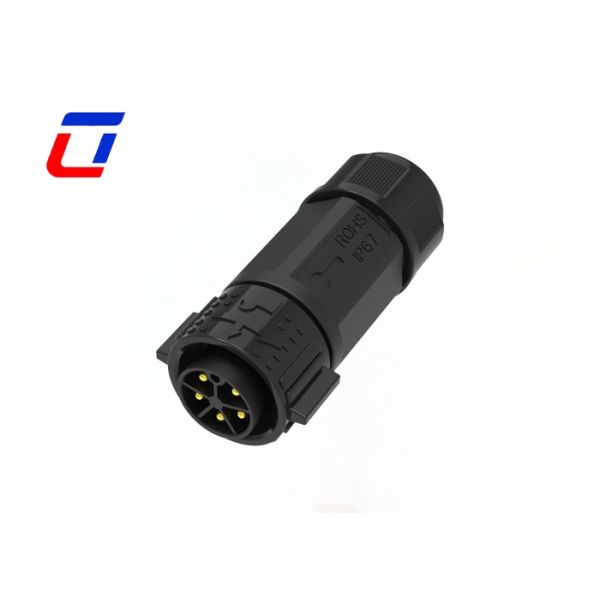

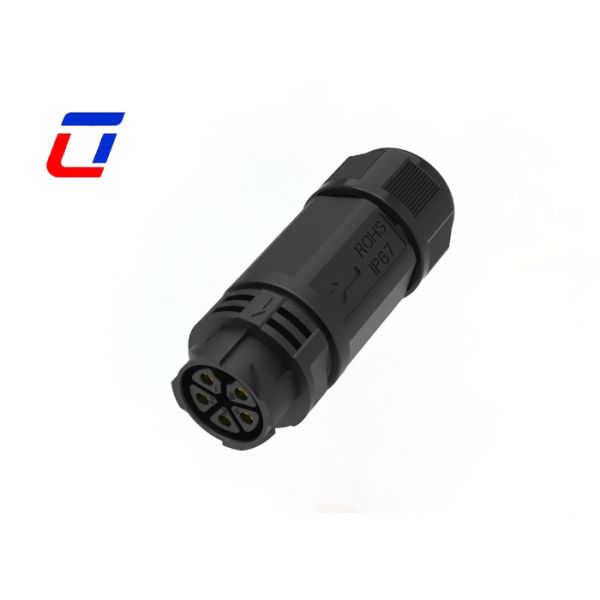

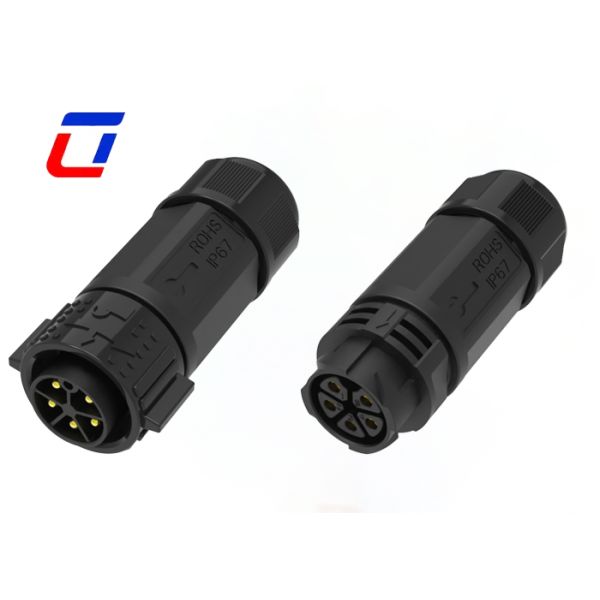

50A M25 5 Pin Male Female Connector IP67 Quick Release Solar Connectors For Power
50A M25 5 Pin Male Female Connector IP67 Quick Release Solar Connectors For Power
50A M25 5 Pin Male Female Connector IP67 Quick Release Solar Connectors For Power
50A M25 5 Pin Male Female Connector IP67 Quick Release Solar Connectors For Power
50A M25 5 Pin Male Female Connector IP67 Quick Release Solar Connectors For Power
50A M25 5 Pin Male Female Connector IP67 Quick Release Solar Connectors For Power
Specifications
Current :
30A
Protection level :
IP67
Flame-resistant rating :
UL94-V0
Rated voltage :
500V
Number of Pins :
5Pin
Brand Name :
Ulinkcon
Model Number :
M25
Certification :
CE/Rohs
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T,D/A,D/P,L/C
Supply Ability :
100000 pairs each month
Delivery Time :
3~6 working days
Packaging Details :
High Quality export carton
Gender :
Male/Female
Description
50A M25 5 Pin Male Female Connector IP67 Quick Release Solar Connectors For Power
5 Pin Waterproof Power Connector M25 Push Lock Male To Female Connectors
Key Features
  • High-Current Core Specifications: 5Pin male-female plug-in structure with rated current up to 50A, specially designed for high-power transmission in solar energy systems
  • IP67 High-Level Waterproof and Dustproof: Complete protection against dust intrusion and immersion in 1-meter water depth for 30 minutes
  • Quick Release Convenient Operation: Tool-free plug-in operation with clear snap-lock feedback for secure connections
  • Weather-Resistant Materials: High-conductivity brass conductors with anti-oxidation treatment and UV-resistant engineering plastic shells
Main Features
  • Push lock quick release system
  • Multicore options: 2Pin, 3Pin, 4Pin, 5Pin, 3+2Pin, 3+3Pin, 3+9Pin, 3+13Pin, 5+2Pin and 2+20Pin available
  • Field assembly version: both wire to wire and wire to board options
  • High current rated waterproof connector suitable for up to 30A continuous operation
  • Cable assembly service supported with custom options
  • OEM/ODM welcome
Electrical Parameters
Number of Poles 5Pin waterproof connector
Current Rating 50A max
Voltage Rating 600VAC max
Durability Voltage 2500VAC @ 60 s
Technical Parameters
Contact Resistance 10 mΩ max
Insulation Structure 500 MΩ at 500VDC
Operating Temperature -40°C ~ +105°C
IP Class IP67 (1m / 30min)
Mold Material PA66
Contact/Terminal Material Gold Plated Brass
Seal Material Silicone
Operation Parameters
Voltage Rating 600VAC max
Current Rating 30A max
Min Wire Size OD 6.5mm ~ 10mm
Max Wire Size OD 10.5mm ~ 18mm
Max Cable Cross Section Area 0.5mm² ~ 6.0mm²
Application Industries
  • Communications Application
  • Product Coding Machines
  • Inventory Product Coding
  • Inkjet Systems
  • Solar System
  • Industrial Inkjet Equipment
  • Electric Power Equipment
  • Laboratory Forensic & Pathology Equipment
  • Communications Equipment
  • Heavy Machinery
Production Dimension
50A M25 5 Pin Male Female Connector IP67 Quick Release Solar Connectors For Power
More Technical Details
50A M25 5 Pin Male Female Connector IP67 Quick Release Solar Connectors For Power
Frequently Asked Questions
How can I get samples?
We are pleased to offer samples, with freight costs to be covered by the customer. Please provide your courier number and detailed address for immediate sample shipment.
What is your Minimum Order Quantity (MOQ)?
MOQ varies by product type—typically 500 units for standard models and 1000 units for customized items. Lower MOQ can be negotiated for trial orders or long-term cooperation.
How to track my shipment?
Once goods are shipped, we provide tracking numbers and logistics platform links for real-time status monitoring. Contact our team for updates.
Can I pay after receiving the goods?
For first-time cooperation, advance payment is required to ensure production. Flexible payment terms can be discussed for long-term trusted clients after successful orders.
50A M25 5 Pin Male Female Connector IP67 Quick Release Solar Connectors For Power
