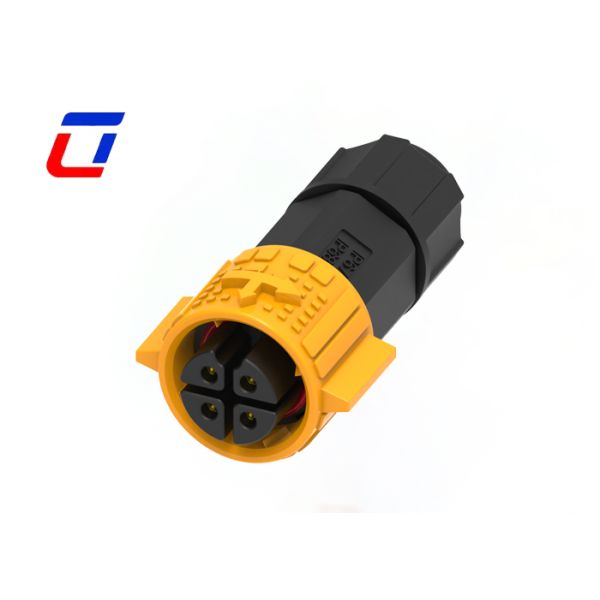

300V 4 Pin M19 Waterproof Connector Male To Female IP67 Circular Connectors
300V 4 Pin M19 Waterproof Connector Male To Female IP67 Circular Connectors
300V 4 Pin M19 Waterproof Connector Male To Female IP67 Circular Connectors
300V 4 Pin M19 Waterproof Connector Male To Female IP67 Circular Connectors
300V 4 Pin M19 Waterproof Connector Male To Female IP67 Circular Connectors
300V 4 Pin M19 Waterproof Connector Male To Female IP67 Circular Connectors
Specifications
Payment Terms :
T/T,D/P,L/C,D/A,Western Union
Rated voltage :
300V
Color :
Red Blue White Black Yellow
Flame-resistant rating :
UL94-V0
Gender :
Male to Female
Brand Name :
Ulinkcon
Model Number :
M19
Certification :
CE/Rohs/TUV/UL
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Supply Ability :
100000 pairs Montly
Delivery Time :
3~6working days
Packaging Details :
1.Plastic bag;2.Carton;3.As per customer's requirements
Current rating :
15A
Material :
Nylon
Description
300V 4 Pin M19 Waterproof Connector Male To Female IP67 Circular Connectors
IP67 Waterproof M19 4 Pin Male To Female Outdoor Connector

Quick Description

  • Core Specifications: Adopts M19 standard circular structure design, equipped with 4-pin power transmission channels, rated voltage 300V, supports precise male-to-female docking, customized for industrial-grade power connection scenarios
  • Structure & Craftsmanship: Shell made of high-weather-resistant engineering plastic, pin core precision-processed with high-conductivity brass material, professional sealing structure for excellent anti-vibration and anti-fall performance
  • Transmission Performance: 300V rated voltage suitable for medium and low voltage power transmission, 4-pin channel design ensures current-carrying stability, low pin core contact resistance reduces transmission energy consumption
  • Application Fields: Widely used in outdoor power distribution systems, industrial automation equipment, new energy outdoor facilities, security monitoring power connections requiring IP67 protection
Main Features
  • Push lock quick release system
  • Multicore options: 2Pin, 3Pin, 4Pin, 5Pin for Power
  • 3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin and 2+20Pin for power signal combined
  • 6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin and 18Pin for signal available
  • Field assembly version: both wire to wire and wire to board options
  • Current rated 15A for long time working
  • Cable assembly service supported, welcome to custom
  • OEM/ODM welcome
Electrical Parameters
Number of Poles 4Pin
Current Rating 15A max.
Voltage Rating 300VAC max
Durability Voltage 1000VAC @ 60 s.
Technical Parameters
Contact Resistance 10 mΩ max
Insulation Structure 500 MΩ at 500VDC
Operating Temperature -40°C ~ +105°C
IP Class IP67 (1m / 30min) when mated
Mold Material PA66
Contact/Terminal Material Gold Plated Brass
Seal Material Silicone
Operation Parameters
Voltage Rating 600VAC max
Current Rating 15A max
Min Wire Size OD 3.0mm ~ 6.0mm
Max Wire Size OD 8.0mm ~ 10.0mm
Max. Cable Cross Section Area 0.5mm² ~ 2.5mm²
Application Industries
  • Growth Lights
  • Communications Application
  • Product coding machines
  • Inventory product coding
  • Inkjet systems
  • Solar System
  • Industrial inkjet equipment
  • Electric power equipment
  • Laboratory forensic & pathology equipment
  • Communications equipment
  • Heavy machinery
Design Sketch
300V 4 Pin M19 Waterproof Connector Male To Female IP67 Circular Connectors 300V 4 Pin M19 Waterproof Connector Male To Female IP67 Circular Connectors
Frequently Asked Questions
Q: Are you a factory or trading company?
A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China
Q: Do you support product customization?
A: Yes, customization is available for specifications, colors, logos, and packaging. Please provide your detailed requirements, and we will quote accordingly with a sample confirmation process.
Q: Who is responsible for customs clearance? Do you provide necessary documents?
A: We will provide complete customs clearance documents (commercial invoice, packing list, bill of lading, certification reports). Customs clearance fees and duties are borne by the buyer (EXW/FOB terms). We can assist with document preparation if needed.
