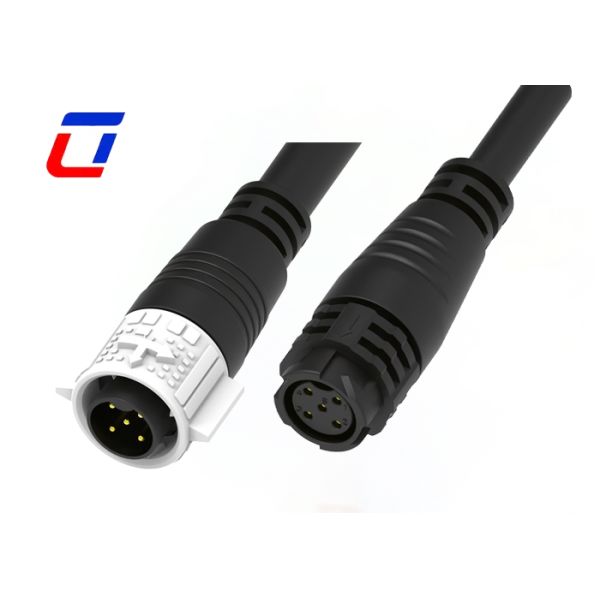

20A M19 5 Pin Waterproof Connector PA66 Power Pin Electrical Connectors
20A M19 5 Pin Waterproof Connector PA66 Power Pin Electrical Connectors
20A M19 5 Pin Waterproof Connector PA66 Power Pin Electrical Connectors
20A M19 5 Pin Waterproof Connector PA66 Power Pin Electrical Connectors
20A M19 5 Pin Waterproof Connector PA66 Power Pin Electrical Connectors
20A M19 5 Pin Waterproof Connector PA66 Power Pin Electrical Connectors
Specifications
Rated voltage :
300V
Material :
Nylon
Pin :
5Pin
Flame-resistant rating :
UL94-V0
Brand Name :
Ulinkcon
Model Number :
M19
Certification :
CE/Rohs/TUV/UL
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Supply Ability :
100000 pairs Montly
Delivery Time :
3~6working days
Packaging Details :
1.Plastic bag;2.Carton;3.As per customer's requirements
Current rating :
20A
Payment Terms :
T/T,D/P,L/C,D/A,Western Union
Gender :
Male to Female
Description
20A M19 5 Pin Waterproof Connector PA66 Power Pin Electrical Connectors
Product Overview

5 Pin Circular M19 PA66 300V Waterproof Connector designed for industrial multi-channel power connection needs with M19 standard circular interface and 20A high current carrying capacity.

Main Features
  • Push lock quick release system
  • Multicore options: 2Pin, 3Pin, 4Pin, 5Pin for Power
  • 3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin and 2+20Pin for power signal combined
  • 6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin and 18Pin for signal available
  • Field assembly version: both wire to wire and wire to board options
  • Current rated 20A for long time working
  • Cable assembly service supported, welcome to custom
  • OEM/ODM welcome
Technical Specifications
Parameter Specification
Number of Poles 5Pin
Current Rating 20A max.
Voltage Rating 300VAC max
Durability Voltage 1500VAC @ 60 s.
Contact Resistance 10 mΩ max
Insulation Structure 500 MΩ at 500VDC
Operating Temperature -40°C ~ +105°C
IP Class IP67 (1m / 30min) when mated
Mold Material PA66
Contact/Terminal Material Gold Plated Brass
Seal Material Silicone
Application Industries
  • Growth Lights
  • Communications Application
  • Product coding machines
  • Inventory product coding
  • Inkjet systems
  • Solar System
  • Industrial inkjet equipment
  • Electric power equipment
  • Laboratory forensic & pathology equipment
  • Communications equipment
  • Heavy machinery
Design Sketch
20A M19 5 Pin Waterproof Connector PA66 Power Pin Electrical Connectors 20A M19 5 Pin Waterproof Connector PA66 Power Pin Electrical Connectors
Frequently Asked Questions
Q: Are you a factory or trading company?

A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China

Q: Are your products certified? What certifications do you have?

A: All our products are certified by RoHS, CE, and other international standards. Specific certifications (e.g., FCC, UL) can be provided upon request based on your target market.

Q: How can I get samples?

A: It's my honor to offer you samples, and the freight should be paid by yourself. You can let me know your courier number and your detail address, then I can send you sample at once.

Q: What shipping methods do you offer? How long is the delivery time?

A: We provide multiple shipping options: 1) Courier (DHL/UPS/FedEx): 3 - 7 working days for small parcels; 2) Air freight: 7 - 15 working days; 3) Sea freight: 20 - 45 working days. Delivery time varies by destination and shipping method.
