M19 3+5 Pin 20A Push Locking System Molded Cable Connector Multi Pin Connector Types
IP67 Waterproof Connector 3+5 Pin M19 Quick Release Plug Socket
Product Overview
  • 3+5 Differentiated Mixed Pin Layout for Hierarchical Transmission: Adopting a dedicated 3-power-pin + 5-signal-pin mixed multi-pin structure, it separates strong and weak current channels to realize integrated dual-mode transmission in a single connector. The 3 power pins support 15A continuous high-current power supply for main circuit load, while the 5 signal pins undertake 5A precise weak signal transmission.
  • Graded Current Load & Stable Wide-Voltage Electrical Performance: Equipped with dual 15A/5A graded current specifications, the thickened high-power terminals ensure sufficient conductive cross-section, low temperature rise and no ablation under full load. The precision signal terminals feature balanced impedance for zero-delay and high-fidelity weak signal transmission.
  • Integrated Molded Cable Structure for Superior Toughness: Adopting one-piece injection molding technology for cable and connector integration without splicing gaps, it solves common defects of traditional assembled connectors such as fracture, water leakage and wire detachment.
  • Push-Lock System for Tool-Free Rapid Connection: Upgraded with professional push-locking system, it realizes automatic precise locking by simple pressing and easy unlocking without tools or thread operation.
  • All-Weather Sealing Protection for Harsh Outdoor Conditions: Featured with multi-layer closed sealing structure and weather-resistant elastic silicone gaskets, it delivers excellent dustproof, moisture-proof and waterproof performance.
  • Wide-Temperature Weather-Resistant Material for Full-Range Adaptability: Made of high-strength modified engineering plastic with superior toughness, wear resistance, flame retardancy and corrosion resistance, it operates stably in an ultra-wide temperature range of -40℃~+105℃.
Electrical Specifications
Parameter Specification
Number of Poles 3+5 Pin
Current Rating 15A +5Amax
Voltage Rating 300VAC max
Dielectric Strength 1500VAC @ 60 s
Technical Specifications
Parameter Specification
Contact Resistance 10 mΩ max
Insulation Resistance 500 MΩ at 500VDC
Operating Temperature -40°C to +105°C
IP Rating IP67 (1m / 30min) when mated
Mold Material PA66
Contact/Terminal Material Gold Plated Brass
Seal Material Silicone
Operation Parameters
Parameter Specification
Voltage Rating 300VAC max
Current Rating 20A max
Wire Size OD (Min) 3.0mm - 6.0mm
Wire Size OD (Max) 8.0mm - 10.0mm
Max Cable Cross Section 0.5mm² - 2.5mm²

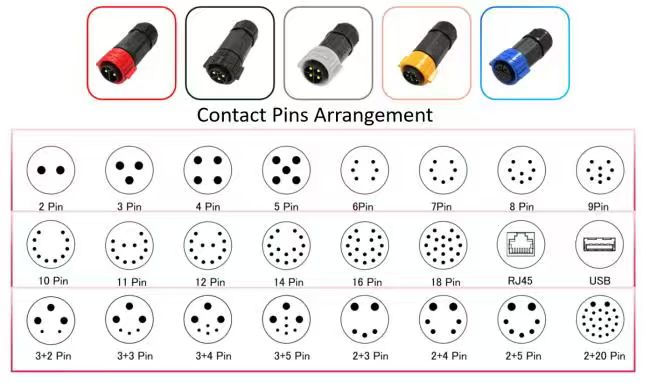

Configuration Options
  • Push lock quick release system
  • Multiple core options: 2Pin, 3Pin, 4Pin, 5Pin for Power
  • Power-signal combinations: 3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin and 2+20Pin
  • Signal options: 6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin and 18Pin
  • Field assembly versions: wire to wire and wire to board options
  • Current rated 20A for continuous operation
  • Cable assembly service supported with custom options
  • OEM/ODM services available
Application Industries
  • Growth Lights
  • Communications Equipment
  • Product Coding Machines
  • Inventory Product Coding Systems
  • Inkjet Systems
  • Solar Systems
  • Industrial Inkjet Equipment
  • Electric Power Equipment
  • Laboratory Forensic & Pathology Equipment
  • Heavy Machinery
Product Design
M19 3+5 Pin 20A Push Locking System Molded Cable Connector Multi Pin Connector Types
