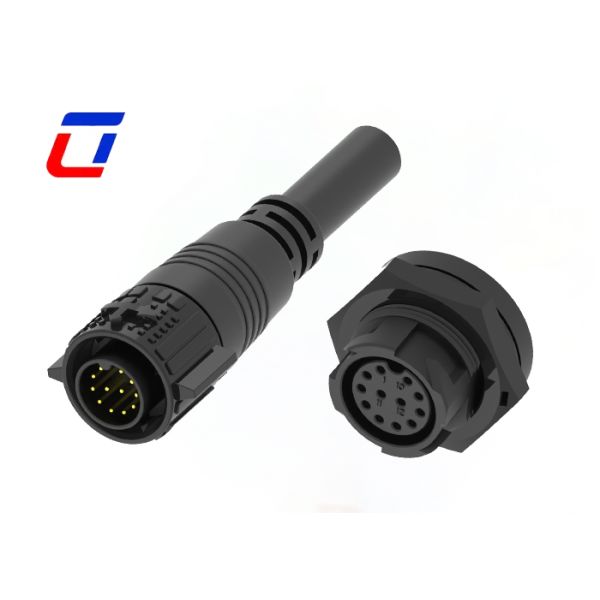

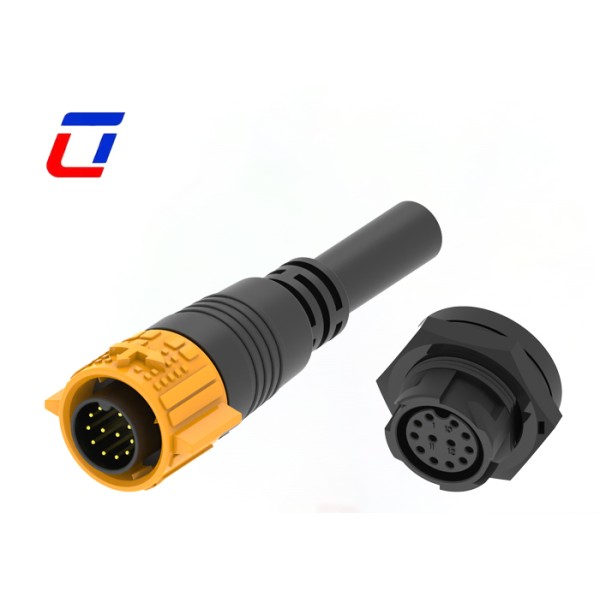

Nylon M19 12 Pin Outdoor Molded Cable Connector IP67 300V Waterproof Data Connector
Nylon M19 12 Pin Outdoor Molded Cable Connector IP67 300V Waterproof Data Connector
Nylon M19 12 Pin Outdoor Molded Cable Connector IP67 300V Waterproof Data Connector
Nylon M19 12 Pin Outdoor Molded Cable Connector IP67 300V Waterproof Data Connector
Nylon M19 12 Pin Outdoor Molded Cable Connector IP67 300V Waterproof Data Connector
Nylon M19 12 Pin Outdoor Molded Cable Connector IP67 300V Waterproof Data Connector
Nylon M19 12 Pin Outdoor Molded Cable Connector IP67 300V Waterproof Data Connector
Nylon M19 12 Pin Outdoor Molded Cable Connector IP67 300V Waterproof Data Connector
Specifications
Certification :
CE/Rohs/TUV/UL
Material :
Nylon
Model Number :
M19
Current rating :
5A
Payment Terms :
T/T,D/P,L/C,D/A,Western Union
Price :
Negotiation
Sealing Material :
Sealing Gasket/Waterproof O-Ring
Supply Ability :
100000 pairs Montly
MOQ :
Negotiation
Delivery Time :
3~6working days
Flame-resistant rating :
UL94-V0
Brand Name :
Ulinkcon
Rated voltage :
300V
Packaging Details :
1.Plastic bag;2.Carton;3.As per customer's requirements
Place of Origin :
Shenzhen,China
Operating temperature :
-40℃-+105℃
Description
Nylon M19 12 Pin Outdoor Molded Cable Connector IP67 300V Waterproof Data Connector
Product Overview

300V Waterproof Plug And Socket 12 Pin IP67 M19 Cable Data Connectors

Key Features
  • 12-pin high-density layout for simultaneous multi-channel data transmission
  • Molded cable construction for superior bend and tensile resistance
  • 300V rated withstand voltage for stable low-voltage performance
  • IP67 waterproof and dustproof for all-weather outdoor deployment
  • Weather-resistant nylon housing with wide operating temperature range (-40℃ to +105℃)
  • Standard M19 form-factor with broad engineering compatibility
Technical Specifications
Electrical Parameters Specifications
Number of Poles 12 Pin
Current Rating 5A max.
Voltage Rating 300VAC max
Durability Voltage 1500VAC @ 60 s.
Contact Resistance 10 mΩ max
Insulation Structure 500 MΩ at 500VDC
Operating Temperature -40°C ~ +105°C
IP Class IP67 (1m / 30min) when mated
Operation Parameters
Parameter Specification
Voltage Rating 300VAC max
Current Rating 5A max
Min Wire Size OD 3.0mm ~ 6.0mm
Max Wire Size OD 8.0mm ~ 10.0mm
Max Cable Cross Section Area 0.5mm² ~ 2.5mm²
Materials
Component Material
Mold Material PA66
Contact/Terminal Material Gold Plated Brass
Seal Material Silicone
Application Industries
  • Growth Lights
  • Communications Equipment
  • Product Coding Machines
  • Inkjet Systems
  • Solar Systems
  • Industrial Inkjet Equipment
  • Electric Power Equipment
  • Laboratory Forensic & Pathology Equipment
  • Heavy Machinery

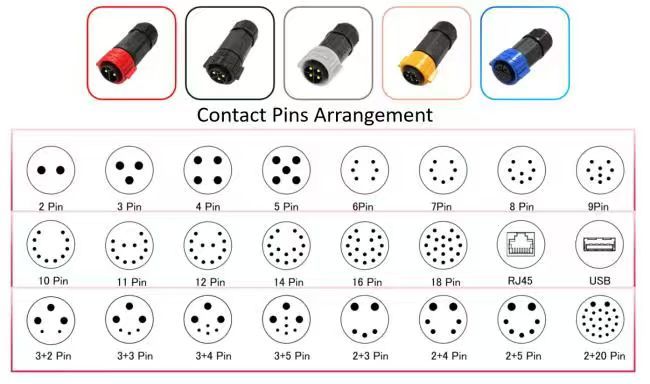

Design Sketch
Nylon M19 12 Pin Outdoor Molded Cable Connector IP67 300V Waterproof Data Connector Nylon M19 12 Pin Outdoor Molded Cable Connector IP67 300V Waterproof Data Connector
Frequently Asked Questions
Q: Are you a factory or trading company?
A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China
Q: Do you accept other payment currencies besides USD?
A: Our default currency is USD, but we can also accept EUR, GBP, or other major currencies. Please confirm the exchange rate with our sales team when placing the order.
Q: Can I have custom label?
A: Yes, of course, you can make your own private label and package. If you need to design the packaging, we also have professional designer to serve you.
Nylon M19 12 Pin Outdoor Molded Cable Connector IP67 300V Waterproof Data Connector
