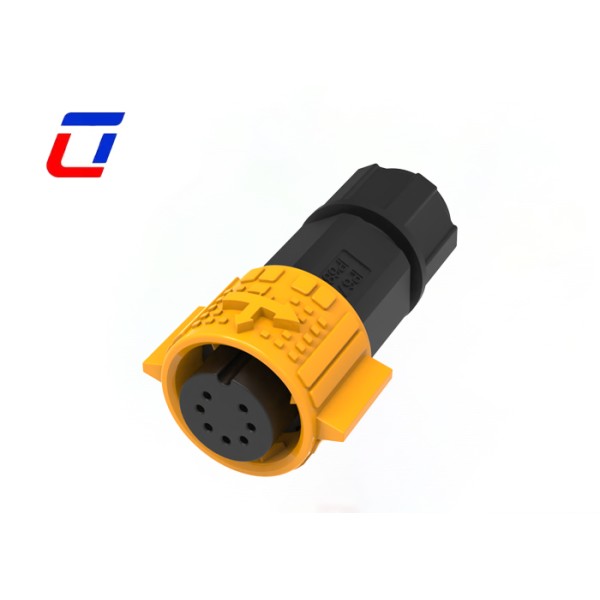

300V 7 Pin M19 IP67 Waterproof Connector PA66 Outdoor Data Quick Lock Connectors
300V 7 Pin M19 IP67 Waterproof Connector PA66 Outdoor Data Quick Lock Connectors
300V 7 Pin M19 IP67 Waterproof Connector PA66 Outdoor Data Quick Lock Connectors
300V 7 Pin M19 IP67 Waterproof Connector PA66 Outdoor Data Quick Lock Connectors
300V 7 Pin M19 IP67 Waterproof Connector PA66 Outdoor Data Quick Lock Connectors
300V 7 Pin M19 IP67 Waterproof Connector PA66 Outdoor Data Quick Lock Connectors
300V 7 Pin M19 IP67 Waterproof Connector PA66 Outdoor Data Quick Lock Connectors
300V 7 Pin M19 IP67 Waterproof Connector PA66 Outdoor Data Quick Lock Connectors
Specifications
Certification :
CE/Rohs/TUV/UL
Current/Voltage rating :
5A/300V
Model Number :
M19
Connector type :
Male Female Quick connector
MOQ :
Negotiation
Delivery Time :
3~6working days
Color :
Yellow
Payment Terms :
T/T,D/P,L/C,D/A,Western Union
Price :
Negotiation
Flame-resistant rating :
UL94-V0
Supply Ability :
100000 pairs Montly
Brand Name :
Ulinkcon
Name :
M19 7 Pin Data Connector
Packaging Details :
1.Plastic bag;2.Carton;3.As per customer's requirements
Place of Origin :
China
Material :
Nylon
Description
300V 7 Pin M19 IP67 Waterproof Connector PA66 Outdoor Data Quick Lock Connectors
Product Overview

Our 7 Pin M19 Wire-to-Board Male-Female Connector is engineered for rugged outdoor applications, delivering reliable connectivity that stands up to harsh environmental conditions. Designed with a precision M19 housing, this connector ensures secure wire-to-board integration while enabling stable transmission of power and signals for industrial and outdoor devices.

Key Features
  • 7-Pin Standard Layout: Professional design for low-voltage multi-channel data signal transmission with uniform pin arrangement and optimal insulation spacing
  • 300V Rated Voltage: Compatible with civil and industrial outdoor low-voltage electrical systems for safe operation
  • Quick-Lock Structure: Tool-free fast installation with excellent anti-loosening and tensile resistance
  • IP67 Full-Range Protection: Complete protection against dust, water immersion, and moisture penetration
  • Modified PA66 Housing: Superior weather resistance with UV and aging resistance treatment
  • Compact & Universal Design: M19 standard circular structure saves installation space
Technical Specifications
Electrical Parameters
Number of Poles 7Pin
Current Rating 5A max.
Voltage Rating 300VAC max
Durability Voltage 1500VAC @ 60 s.
Technical Parameters
Contact Resistance 10 mΩ max
Insulation Structure 500 MΩ at 500VDC
Operating Temperature -40°C ~ +105°C
IP Class IP67 (1m / 30min) when mated
Operation Parameters
Min Wire Size OD 3.0mm ~ 6.0mm
Max Wire Size OD 8.0mm ~ 10.0mm
Max Cable Cross Section Area 0.5mm² ~ 2.5mm²
Materials
  • Mold Material: PA66
  • Contact/Terminal Material: Gold Plated Brass
  • Seal Material: Silicone
Product Images
300V 7 Pin M19 IP67 Waterproof Connector PA66 Outdoor Data Quick Lock Connectors
Design Sketch
300V 7 Pin M19 IP67 Waterproof Connector PA66 Outdoor Data Quick Lock Connectors
Application Industries
  • Growth Lights
  • Communications Equipment
  • Product Coding Machines
  • Inkjet Systems
  • Solar Systems
  • Industrial Inkjet Equipment
  • Electric Power Equipment
  • Laboratory Forensic & Pathology Equipment
  • Heavy Machinery
Frequently Asked Questions
Q: Are you a factory or trading company?
A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China.
Q: Can I have custom label?
A: Yes, of course. You can create your own private label and packaging. If you need packaging design, we have professional designers to serve you.
Q: How do I place an order? What is the process?
A: The order process is simple: 1) Confirm product details and get a proforma invoice (PI); 2) Make the down payment as agreed; 3) We start production and update you with progress; 4) Pay the balance before shipment; 5) Arrange delivery and provide tracking information.
