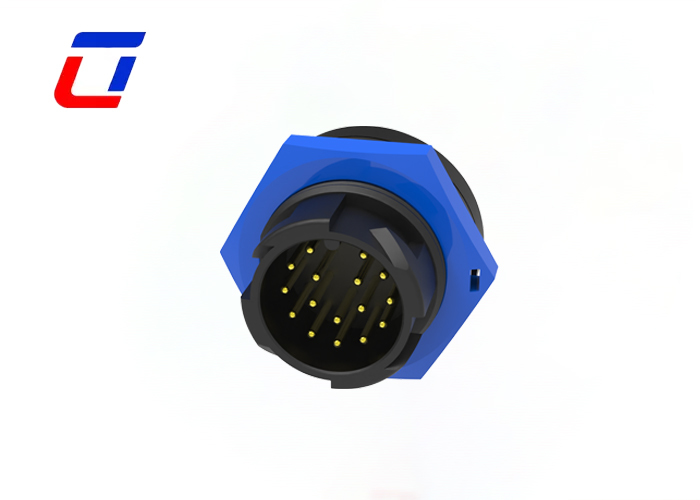

PA66 16 Pin M19 Panel Mount Circular Connector 5A IP67 Waterproof Quick Connector
PA66 16 Pin M19 Panel Mount Circular Connector 5A IP67 Waterproof Quick Connector
PA66 16 Pin M19 Panel Mount Circular Connector 5A IP67 Waterproof Quick Connector
PA66 16 Pin M19 Panel Mount Circular Connector 5A IP67 Waterproof Quick Connector
PA66 16 Pin M19 Panel Mount Circular Connector 5A IP67 Waterproof Quick Connector
PA66 16 Pin M19 Panel Mount Circular Connector 5A IP67 Waterproof Quick Connector
Specifications
Model Number :
M19
Payment Terms :
T/T,D/P,L/C,D/A,Western Union,
Rated voltage :
300V
Flame-resistant rating :
UL94-V0
Supply Ability :
100000 pairs Montly
Pin :
16 Pin For Data
Brand Name :
Ulinkcon
Packaging Details :
1.Plastic bag;2.Carton;3.As per customer's requirements
MOQ :
Negotiation
Delivery Time :
3~6working days
Protection level :
IP67
Price :
Negotiation
Material :
Nylon&Brass Gold-Plated
Certification :
CE/Rohs/TUV/UL
Place of Origin :
Shenzhen,China
Operating temperature :
-40℃-+105℃
Description
PA66 16 Pin M19 Panel Mount Circular Connector 5A IP67 Waterproof Quick Connector
Ulinkcon M19 16Pin panel-mount circular waterproof connector adopts industrial flame-retardant PA66 housing and high-density 16-pin pure signal layout. Rated at 5A current and IP67 waterproof grade, it features stable multi-channel weak-current transmission and quick connection design. With firm embedded panel installation and excellent weather resistance, it is a high-density professional data connector for outdoor industrial terminals and sensor devices.
Product Overview
  • High-Density 16-Pin Multi-Channel Signal Transmission:Precisely arranged 16 pure signal pins provide sufficient independent transmission channels without power circuit interference. It supports synchronous transmission of multi-group sensor data, control commands and communication signals, perfectly meeting high-precision and multi-signal interaction requirements of integrated intelligent control systems.
  • Flame-Retardant PA66 Industrial Housing:Upgraded PA66 engineering nylon housing delivers outstanding flame retardancy, impact resistance and compression resistance. It features excellent high and low temperature resistance, UV resistance and anti-aging performance, maintaining stable structural strength under long-term harsh outdoor working conditions.
  • Panel Mount & Quick Connection Structure:Standard embedded panel mounting design ensures accurate positioning and firm installation on equipment shells and control panels, ideal for automated mass production and space-saving assembly. The optimized quick-connect structure is vibration-proof and anti-loosening, ensuring continuous and stable connection during long-term equipment operation.
  • IP67 Waterproof & Anti-Interference Performance:High-precision annular sealing gaskets realize standard IP67 dustproof and waterproof protection, effectively blocking rainwater, moisture and dust ingress. The independent signal circuit shields electromagnetic interference, achieving zero-delay and lossless multi-channel data transmission for all-weather stable equipment operation.
Main Features
  • Push lock quick release system
  • Multic-core options: 2Pin,3Pin,4Pin,5Pin for Power
  • 3+2Pin,3+3Pin,3+4Pin,3+5Pin,3+9Pin and 2+20Pin for power signal combined
  • 6Pin,7Pin,8Pin,9Pin,10Pin,11Pin,12Pin,14Pin,16Pin and 18Pin for signal available
  • Field assembly version: both wire to wire and wire to board options
  • Cable assembly service supported, welcome to custom
  • OEM/ODM welcome
Application Industries
  • Growth Lights
  • Communications Application
  • Product coding machines
  • Inventory product coding
  • Inkjet systems
  • Solar System
  • Industrial inkjet equipment
  • Electric power equipment
  • Laboratory forensic & pathology equipment
  • Communications equipment
  • Heavy machinery
Technical Specifications
Electrical Parameters
Number of Poles 16Pin
Current Rating 5A max.
Voltage Rating 300VAC max
Durability Voltage 1500VAC @ 60 s.
Technical Parameters
Contact Resistance 10 mΩ max
Insulation Structure 500 MΩ at 500VDC
Operating Temperature -40°C ~ +105°C
IP Class IP67 (1m / 30min) when mated
Mold Material PA66
Contact/Terminal Material Gold Plated Brass
Seal Material Silicone
Operation Parameters
Voltage Rating 300VAC max
Current Rating 5A max
Min Wire Size OD 3.0mm ~ 6.0mm
Max Wire Size OD 8.0mm ~ 10.0mm
Max. Cable Cross Section Area 0.5mm² ~ 2.5mm²
PA66 16 Pin M19 Panel Mount Circular Connector 5A IP67 Waterproof Quick Connector
Design Sketch
PA66 16 Pin M19 Panel Mount Circular Connector 5A IP67 Waterproof Quick Connector
Frequently Asked Questions
Q: Are you a factory or trading company?
A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China
Q: How to track my shipment?
A: Once the goods are shipped, we will send you the tracking number and logistics platform link. You can track the real - time status online or contact our team for updates.
Q: How many materials you can provide?
A:There's some different materials from connector and cable, we usually use PVC/Nylon material to product connector, PVC/Rubber/Silicone material was used in cable. Of course we can also according to your requirments to choose the material.
