Specifications
Brand Name :
SIPU
Place of Origin :
CHINA
MOQ :
100
Payment Terms :
Gender
Model Number :
BNC-J5-2
Certification :
ISO9001, RoHS, CE
Packaging Details :
Carton
Price :
Discuss
Delivery Time :
6-8weeks
Product name :
BNC Male RF Coaxial Connector – Straight Type, for RG142/U Cable
Gender :
Male
Type :
Straight
Material :
Brass
Plating :
Nickle
Insulating medium :
PTFE
Durability :
500 times
Description

BNC Male RF Coaxial Connector – Straight Type, for RG142/U Cable

Product Overview

The BNC series is a bayonet-style RF coaxial connector developed and manufactured in accordance with MIL-C-39012/16–24 standards. It features quick connect/disconnect capability, reliable electrical contact, and full interchangeability with similar international products.

Applications:
Used for connecting RF coaxial cables to radio equipment, electronic instruments, and systems requiring stable and repeatable RF connections.

Product Features:

Straight male connector design

Compatible with RG142/U and equivalent coaxial cables

Bayonet coupling mechanism for fast and secure mating

Operating frequency up to 4 GHz

Reliable contact and stable electrical performance

Ideal for applications requiring frequent connection and disconnection

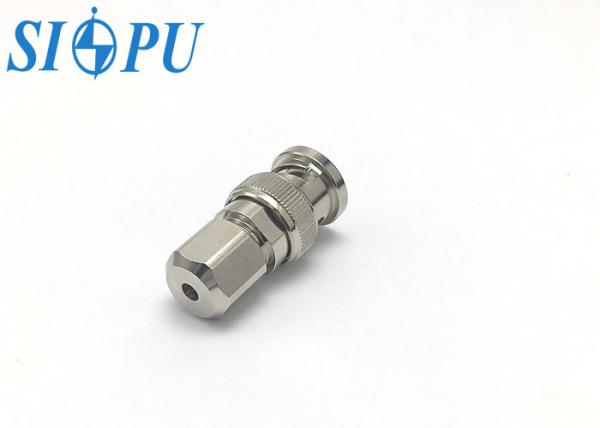

Product Appearance

BNC Male RF Coaxial Connector – Straight Type, for RG142/U Cable

Important Technical Parameters

Electrical property

 Temperature range -55～+165℃

Characteristic impedance

 50Ω Frequency range DC-4GHz

Dielectric withstanding voltage

 1500V VSWR ≤1.3

Insulation resistance

 ≥5000MΩ Insertion loss

≤0.06√F(GHz)dB
Contact resistance Center conductor ≤2.0mΩ Mechanical property
Outer conductor ≤0.2mΩ Durability 500times

Materials and Surface Treatment

Center conductor

 Brass,gold plating Insulating medium PTFE

Outer conductor

 Brass,nickel plating / /

Product Image Gallery

BNC Male RF Coaxial Connector – Straight Type, for RG142/U CableBNC Male RF Coaxial Connector – Straight Type, for RG142/U CableBNC Male RF Coaxial Connector – Straight Type, for RG142/U CableBNC Male RF Coaxial Connector – Straight Type, for RG142/U Cable
