Specifications
Brand Name :
SIPU
Place of Origin :
China
MOQ :
50
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Model Number :
N-KFK
Certification :
ISO9001, RoHS, CE
Price :
Discuss
Packaging Details :
Carton
Supply Ability :
100000
Delivery Time :
5-8work days
Product name :
N Female to N Female RF Coax Adapter – Flange Mounted
Gender :
Female
Type :
Straight
Material :
Brass
Plating :
Nickel
Description

N Female to N Female RF Coax Adapter – Flange Mounted

Product Overview

This RF coaxial adapter enables reliable interconnection between RF components, supporting transitions both within the same connector series and across different types. It acts as a critical link in various RF systems, ensuring signal integrity and mechanical stability.

Applications
Ideal for system conversion and connectivity in test equipment, test cables, and laboratory setups.

Key Features

Flange-mounted design for secure installation

N female connectors on both ends

High reliability and excellent electrical performance

Strong resistance to environmental stress and mechanical wear

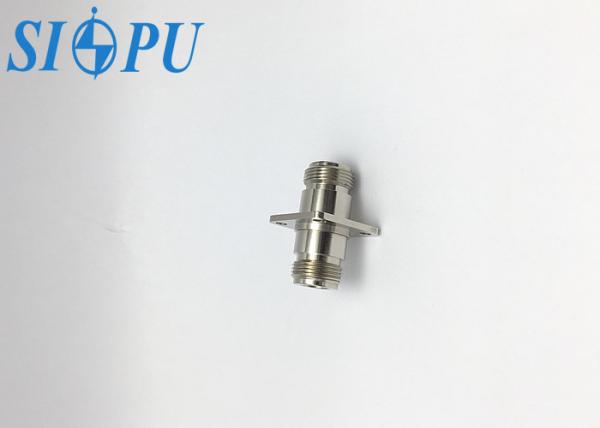

Product Appearance

N Female to N Female RF Coax Adapter – Flange Mounted

Important Technical Parameter

Electrical property

Tempeature range

-65～+125℃

Characteristic impedance

 50Ω

Frequency range

 DC-11GHz

Dielectric withstanding voltage

 1500V

VSWR

 ≤1.3

Insulation resistance

≥5000MΩ

Insertion loss

≤0.06√F(GHz)dB

Contact resistance

Center conductor

 ≤1.5mΩ

Mechanical property

Outer conductor

 ≤2.0mΩ

Durability

 500次

Materials and Surface Treatment

Center conductor

Bronze,gold plating

Insulating medium

PTFE

Outer conductor

Brass,nickel plating

 / /

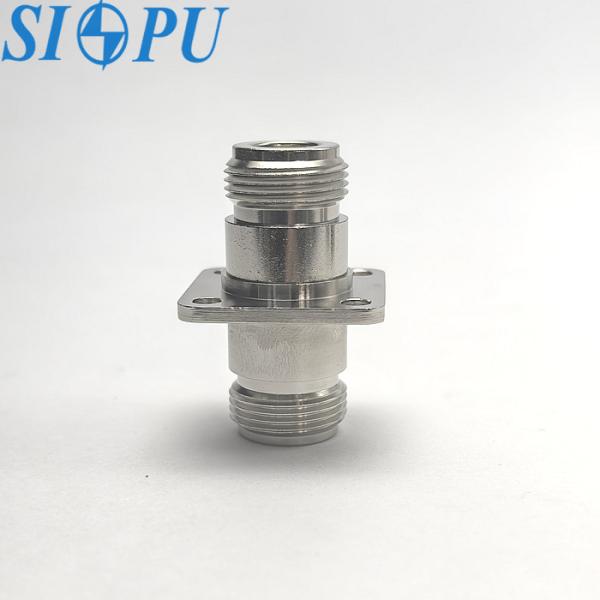

Product Image Gallery

N Female to N Female RF Coax Adapter – Flange MountedN Female to N Female RF Coax Adapter – Flange MountedN Female to N Female RF Coax Adapter – Flange MountedN Female to N Female RF Coax Adapter – Flange MountedN Female to N Female RF Coax Adapter – Flange MountedN Female to N Female RF Coax Adapter – Flange Mounted
