SSMA Female RF Coaxial Connector – Microstrip, Flange Mounted
SSMA Female RF Coaxial Connector – Microstrip, Flange Mounted
SSMA Female RF Coaxial Connector – Microstrip, Flange Mounted
SSMA Female RF Coaxial Connector – Microstrip, Flange Mounted
SSMA Female RF Coaxial Connector – Microstrip, Flange Mounted
SSMA Female RF Coaxial Connector – Microstrip, Flange Mounted
Specifications
Brand Name :
SIPU
Place of Origin :
CHINA
MOQ :
100
Payment Terms :
L/C, T/T, Western Union
Model Number :
SSMA-KFD7
Certification :
IOS9001-2017, RoHS, CE
Packaging Details :
Carton
Price :
Discuss
Delivery Time :
6-8weeks
Supply Ability :
100000pcs/year
Product name :
SSMA Female RF Coaxial Connector – Microstrip, Flange Mounted
Gender :
Female
Type :
Straight
Material :
Brass
Plating :
Gold
Durability :
500 times
Description

SSMA Female RF Coaxial Connector – Microstrip, Flange Mounted

Product Overview

SSMA RF coaxial connectors are known for their compact size, high reliability, and excellent mechanical and electrical performance. Designed for use with small-diameter cables, they are widely applied in digital communication systems, microwave equipment, and other high-frequency environments.

Applications

Test and measurement instruments

Electronic components and modules

Base stations

Telecommunication systems

Product Features

Two-hole flange-mounted microstrip socket

Microstrip dimensions: φ0.9 × 1.5 mm

Stable electrical performance and low VSWR

Compact design for high-density layouts

High mechanical durability and easy installation

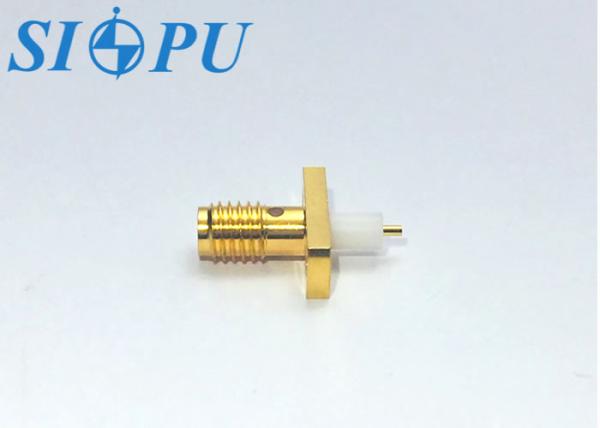

Product Appearance

SSMA Female RF Coaxial Connector – Microstrip, Flange Mounted

Important Technical Parameter

Electrical property

 Temperature range -65～+125℃

Characteristic impedance

 50Ω Frequency range DC-30GHz

Dielectric withstanding voltage

 750V VSWR ≤1.05+0.012F(GHz)

Insulation resistance

 ≥1000MΩ Insertion loss

≤0.05√F(GHz)dB

Contact resistance

 Center conductor ≤4.0mΩ Mechanical property
Outer conductor ≤2.5mΩ Durability 500times

Materials and Surface Treatment

Center conductor

 Beryllium bronze, gold plating Insulating medium PTFE

Outer conductor

 Brass, gold plating / /

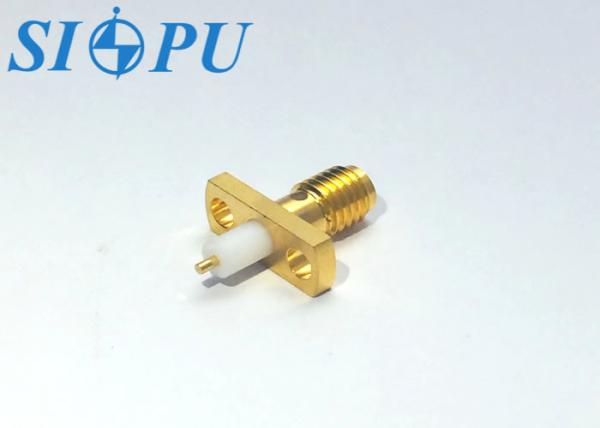

Product Image Gallery

SSMA Female RF Coaxial Connector – Microstrip, Flange MountedSSMA Female RF Coaxial Connector – Microstrip, Flange Mounted
