SMA Female Flange-Mounted RF Coaxial Socket
SMA Female Flange-Mounted RF Coaxial Socket
SMA Female Flange-Mounted RF Coaxial Socket
SMA Female Flange-Mounted RF Coaxial Socket
SMA Female Flange-Mounted RF Coaxial Socket
SMA Female Flange-Mounted RF Coaxial Socket
SMA Female Flange-Mounted RF Coaxial Socket
SMA Female Flange-Mounted RF Coaxial Socket
SMA Female Flange-Mounted RF Coaxial Socket
SMA Female Flange-Mounted RF Coaxial Socket
Specifications
Brand Name :
SIPU
Place of Origin :
China
MOQ :
50
Payment Terms :
L/C, T/T, Western Union
Model Number :
SMA-KK1
Certification :
ISO9001-2017, RoHS, CE
Price :
Discuss
Packaging Details :
master carton
Delivery Time :
6-8Weeks
Supply Ability :
100000pcs/yesr
Product name :
SMA Female Flange-Mounted RF Coaxial Socket
Gender :
Female
Type :
Straight
Material :
Brass
Plating :
Gold
Durability :
500 times
Sealing :
Watertight
Description

SMA Female Flange-Mounted RF Coaxial Socket


Product Overview

The SMA Series Connectors are one of the most widely used RF coaxial connectors. Featuring small threaded connections, they are generally applied in microwave equipment and digital communication systems for connecting cables or microstrip lines.


Applications
Wireless communication, telecommunications, networking, aerospace, etc.


Key Features

Adopting screw connections and flange-mounted installation, the microstrip connection adopts threaded connections instead of conventional welding. It boasts the characteristics of high reliability, wide frequency bandwidth, excellent performance, and long service life.

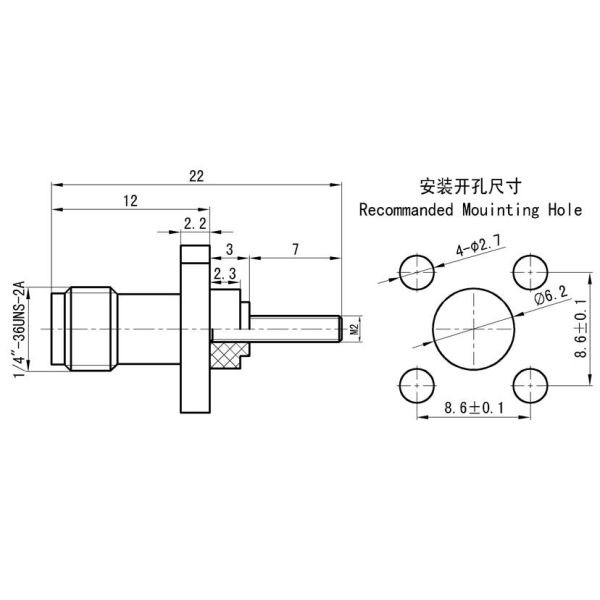

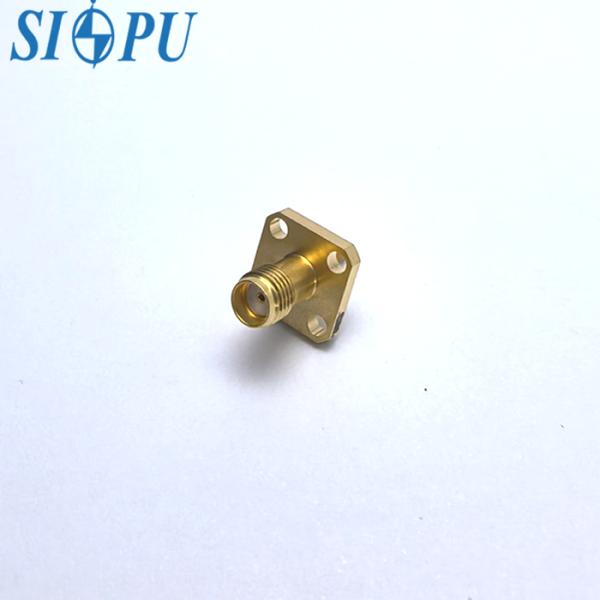

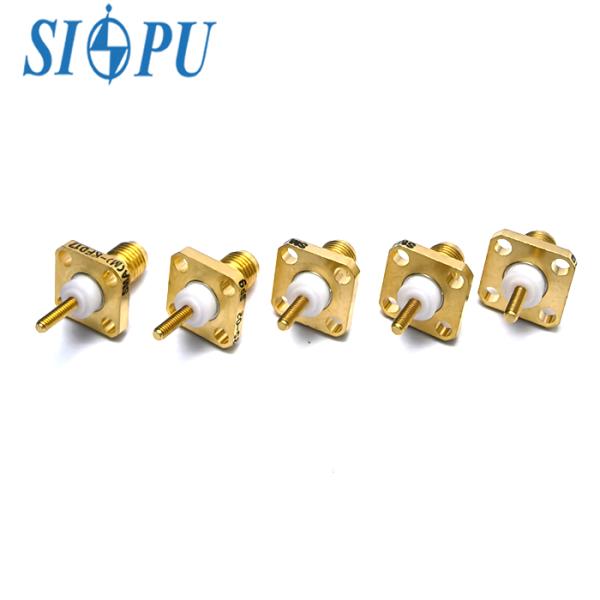

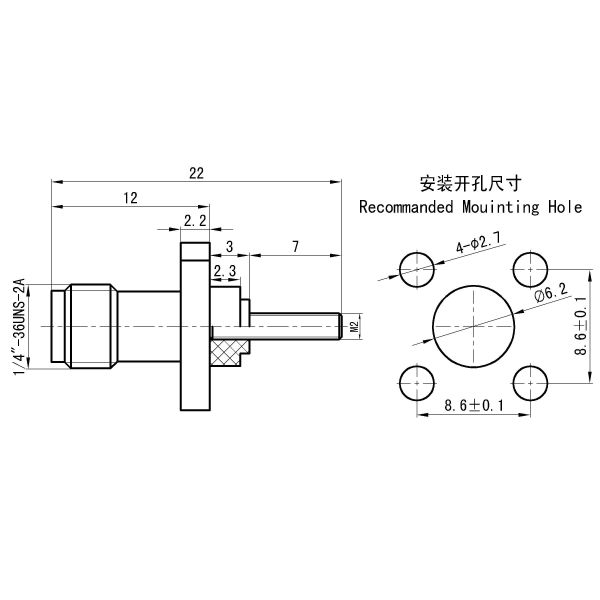

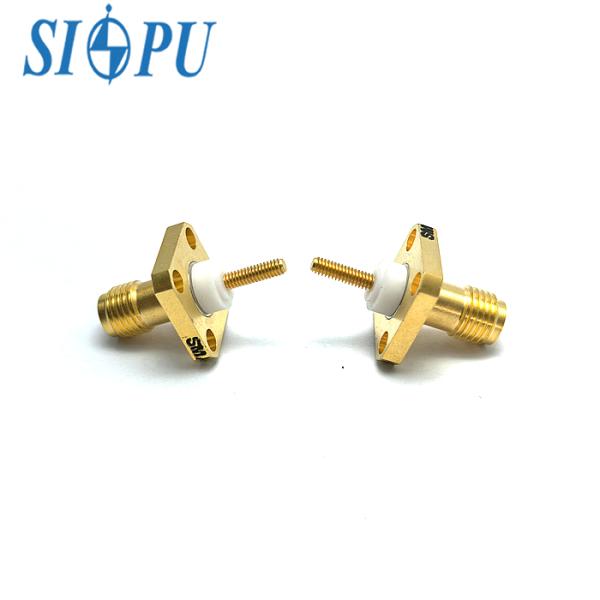

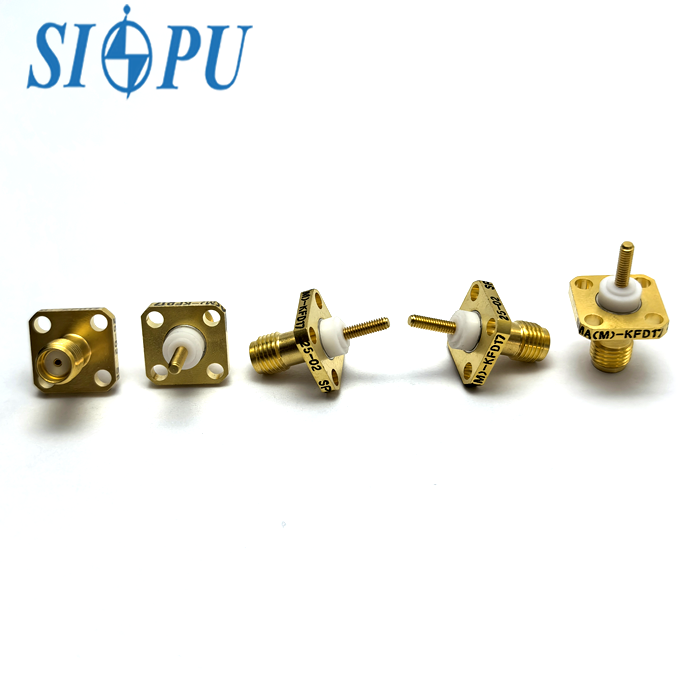

Product Appearance

​SMA Female Flange-Mounted RF Coaxial Socket

Important Technical Parameter

Electrical property

Temperature range

-65～+125℃

Characteristic impedance

50Ω

Frequency range

DC-18GHz

Dielectric withstanding voltage

1000V

VSWR

≤1.05+0.012F(GHz)

Insulation resistance

≥5000MΩ

Insertion loss

≤0.05dBSMA Female Flange-Mounted RF Coaxial Socket

Contact resistance

Center conductor

≤3.0mΩ

Mechanical property

Outer conductor

≤2.0mΩ

Durability

500 cycles


Materials and Surface Treatment

Center conductor

Beryllium bronze,gold plating

Insulating medium

PTFE

Outer conductor

Brass,gold plating

Sealing ring



SMA Female Flange-Mounted RF Coaxial SocketSMA Female Flange-Mounted RF Coaxial Socket
