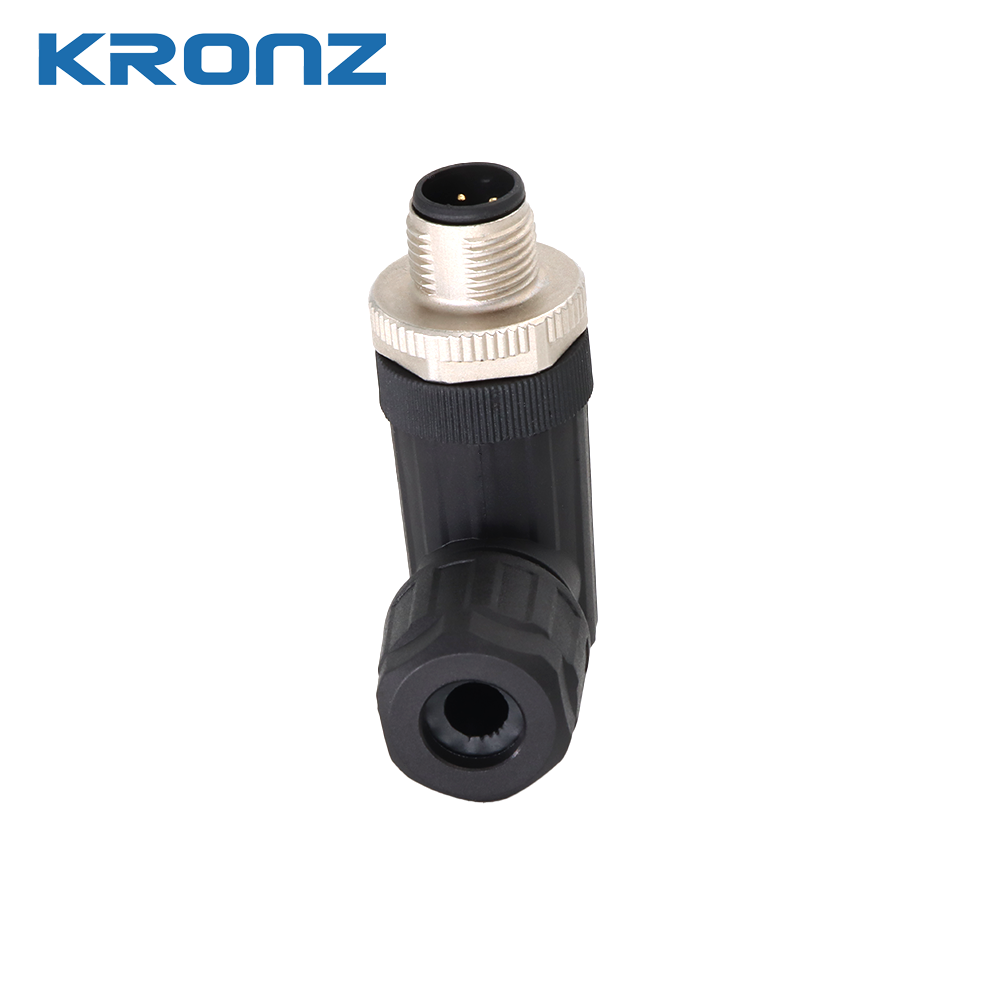

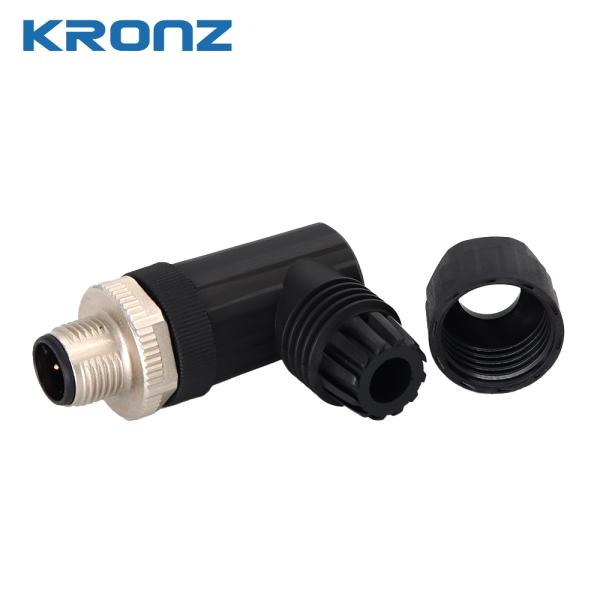

Industrial M12 Connector With Angle Cable Outlet Coding A Insulation Resistance ≥100MΩ
Industrial M12 Connector With Angle Cable Outlet Coding A Insulation Resistance ≥100MΩ
Industrial M12 Connector With Angle Cable Outlet Coding A Insulation Resistance ≥100MΩ
Industrial M12 Connector With Angle Cable Outlet Coding A Insulation Resistance ≥100MΩ
Industrial M12 Connector With Angle Cable Outlet Coding A Insulation Resistance ≥100MΩ
Industrial M12 Connector With Angle Cable Outlet Coding A Insulation Resistance ≥100MΩ
Specifications
Brand Name :
KRONZ
Model Number :
H1205MA-9/L
Place of Origin :
Guangdong, China
Certification :
CE
MOQ :
5
Price :
Negotiable
Packaging Details :
Polybag packing
Delivery Time :
5-8 working days
Payment Terms :
T/T, Western Union,
Supply Ability :
100000 pieces per month
Coding :
A
Seal material :
FPM/FKM
Contact carrier material :
PA, Black
Insulation resistance :
≥100MΩ
Contact resistance :
≤5mΩ
Degree of protection :
IP67
Mating cycles :
>100
Ambient temperature :
-25~+85℃
Description
Industrial M12 Connector With Angle Cable Outlet Coding A Insulation Resistance ≥100MΩ
Product Specifications
Attribute Value
Coding A
Seal material FPM/FKM
Contact carrier material PA, Black
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Degree of protection IP67
Mating cycles >100
Ambient temperature -25~+85℃
Product Overview
The M12 Male Connector features FPM/FKM seal material for excellent resistance to moisture, dust, and chemicals, ensuring long-term performance in harsh environments. Its screw connect design allows for tool-free installation, while the PA (Polyamide) contact carrier provides mechanical strength and thermal resistance.
With contact resistance ≤5mΩ, this connector minimizes energy loss and heat generation. The brass, nickel-plated contact nut offers enhanced durability and corrosion resistance for reliable connections in demanding applications.
Key Features
  • M12 Male Connector with angle cable outlet
  • FPM/FKM seal material for environmental protection
  • PA contact carrier material for strength and thermal resistance
  • Brass, nickel-plated contact nut for durability
  • Gold-plated brass contact surfaces
  • IP67 protection rating
  • Wide operating temperature range (-25~+85℃)
Industrial M12 Connector With Angle Cable Outlet Coding A Insulation Resistance ≥100MΩ Industrial M12 Connector With Angle Cable Outlet Coding A Insulation Resistance ≥100MΩ Industrial M12 Connector With Angle Cable Outlet Coding A Insulation Resistance ≥100MΩ
Technical Parameters
Cable Outlet Diameter 4-8mm
Contact surface material Brass, Gold-plated
Contact nut material Brass, Alloy
Connect Screw Connect
Cable outlet Angle
Rated current 4A
Voltage 60V
Pin 5
Applications
KRONZ M12 connectors are CE certified and suitable for various industrial applications with their robust design and wide temperature range (-25~+85℃). Available in 4, 5, or 8 pin configurations with voltage ratings up to 250V.
  • Industrial Automation: Connecting sensors, actuators, and control devices
  • Transportation: Railway systems and vehicle electronics
  • Renewable Energy: Solar panel installations and wind turbines
  • Manufacturing: Machine connectivity on production floors
  • Outdoor Applications: Lighting and surveillance systems
Industrial M12 Connector With Angle Cable Outlet Coding A Insulation Resistance ≥100MΩ Industrial M12 Connector With Angle Cable Outlet Coding A Insulation Resistance ≥100MΩ
Support & Services
Our technical support team provides assistance with installation, troubleshooting, and maintenance. We offer training programs to help customers maximize their M12 connector systems' potential.
Industrial M12 Connector With Angle Cable Outlet Coding A Insulation Resistance ≥100MΩ
Packaging & Shipping
Each M12 connector is packaged in protective polybags (4 x 2 x 1 inches). Standard shipping is available with costs calculated at checkout. Minimum order quantity is 5 units with delivery in 5-8 working days.
Industrial M12 Connector With Angle Cable Outlet Coding A Insulation Resistance ≥100MΩ Industrial M12 Connector With Angle Cable Outlet Coding A Insulation Resistance ≥100MΩ
