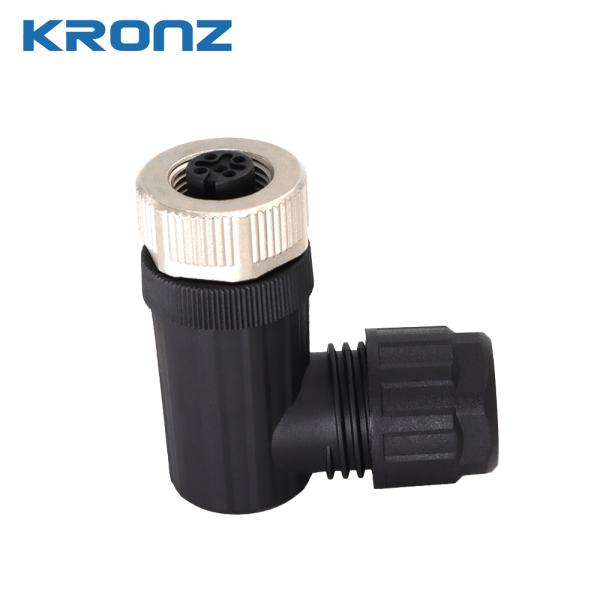

M12 Female Connector Screw Connection ABS Contact Carrier Material for Industrial Needs
M12 Female Connector Screw Connection ABS Contact Carrier Material for Industrial Needs
M12 Female Connector Screw Connection ABS Contact Carrier Material for Industrial Needs
M12 Female Connector Screw Connection ABS Contact Carrier Material for Industrial Needs
M12 Female Connector Screw Connection ABS Contact Carrier Material for Industrial Needs
M12 Female Connector Screw Connection ABS Contact Carrier Material for Industrial Needs
Specifications
Contact carrier material :
ABS, PA, Black
Contact surface material :
Brass, Gold-plated
Rated current :
4A
Insulation resistance :
≥100MΩ
Pollution degree :
3
Contact resistance :
≤5mΩ
Cable Outlet Diameter :
4-8mm
Contact nut material :
Brass, Alloy
Brand Name :
KRONZ
Model Number :
H1205FA-9/L
Place of Origin :
Guangdong, China
Certification :
CE
MOQ :
5
Price :
Negotiable
Packaging Details :
Polybag packing
Delivery Time :
5-8 working days
Payment Terms :
T/T, Western Union,
Supply Ability :
100000 pieces per month
Description
M12 Female Connector Screw Connection ABS Contact Carrier Material for Industrial Needs
Product Specifications
Attribute Value
Contact carrier material ABS, PA, Black
Contact surface material Brass, Gold-plated
Rated current 4A
Insulation resistance ≥100MΩ
Pollution degree 3
Contact resistance ≤5mΩ
Cable Outlet Diameter 4-8mm
Contact nut material Brass, Alloy
Product Description

The M12 Connector is an ideal solution for industrial connectivity needs, featuring a pre-assembled cable with angle outlet for flexible installation. Designed with Coding A for secure mating connections, this robust connector prevents mismating and ensures reliable performance in demanding applications.

Key Features
  • Housing material: TPU, Black
  • Ambient temperature range: -25 to +85℃
  • Screw connection type
  • Insulation resistance: ≥100MΩ
  • Gold-plated brass contact surfaces
  • Durable design with >100 mating cycles
  • Available in 4, 5, or 8 pin configurations
M12 Female Connector Screw Connection ABS Contact Carrier Material for Industrial Needs M12 Female Connector Screw Connection ABS Contact Carrier Material for Industrial Needs M12 Female Connector Screw Connection ABS Contact Carrier Material for Industrial Needs
Technical Parameters
Clamp matrix material ABS, PBT/PA, Black
Seal material NBR
Mating cycles >100
Voltage 60V
Rated current 4A
Coding A
Connect Screw Connection
Cable outlet Angle
Pin 5
Pollution degree 3
Applications

KRONZ M12 Connectors are versatile solutions for industrial automation, machinery, and sensor applications. Certified to IEC 61076-2-101 standard, these connectors offer reliable performance in diverse environmental conditions (-25 to +85℃) with excellent electrical properties (≥100MΩ insulation resistance, ≤5mΩ contact resistance).

M12 Female Connector Screw Connection ABS Contact Carrier Material for Industrial Needs M12 Female Connector Screw Connection ABS Contact Carrier Material for Industrial Needs
Support and Services

Our technical support team provides comprehensive assistance for installation, configuration, and troubleshooting to ensure optimal performance of your M12 Connectors.

M12 Female Connector Screw Connection ABS Contact Carrier Material for Industrial Needs
Packing and Shipping

Each M12 Connector is packed with warranty information. Standard shipping delivers within 5-7 business days.

M12 Female Connector Screw Connection ABS Contact Carrier Material for Industrial Needs M12 Female Connector Screw Connection ABS Contact Carrier Material for Industrial Needs
