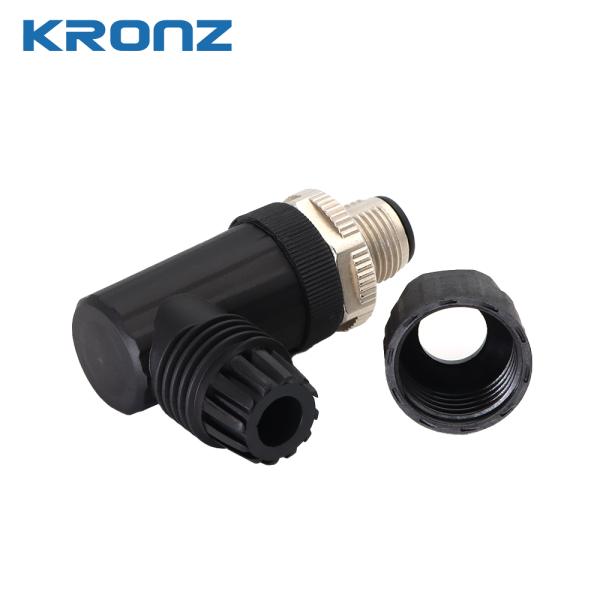

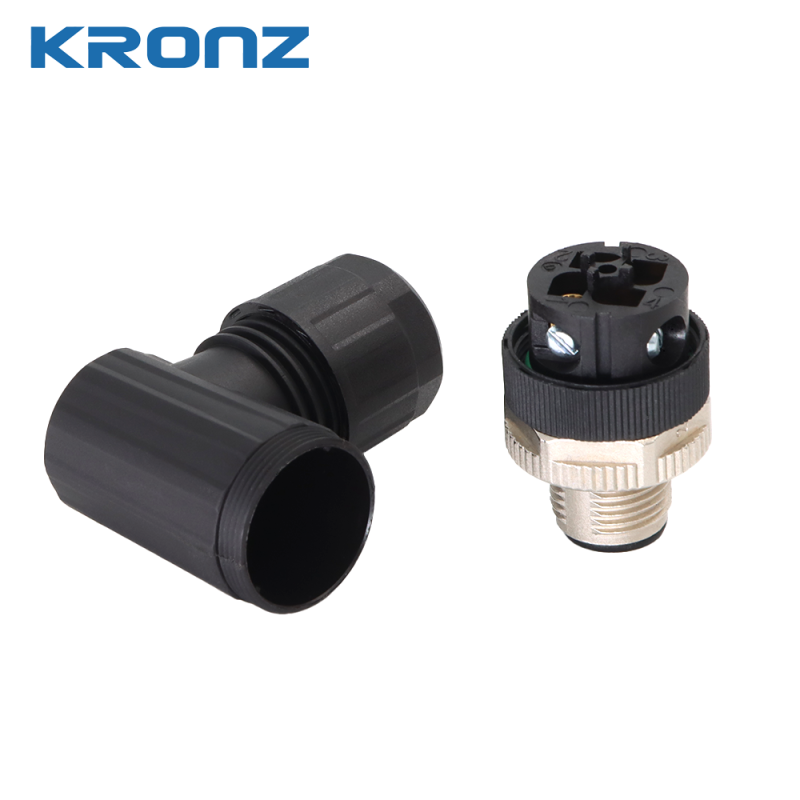

M12 Sensor Connector Angled Screw Waterproof IP67 Circular Connectors 5-pin A Code
M12 Sensor Connector Angled Screw Waterproof IP67 Circular Connectors 5-pin A Code
M12 Sensor Connector Angled Screw Waterproof IP67 Circular Connectors 5-pin A Code
M12 Sensor Connector Angled Screw Waterproof IP67 Circular Connectors 5-pin A Code
M12 Sensor Connector Angled Screw Waterproof IP67 Circular Connectors 5-pin A Code
M12 Sensor Connector Angled Screw Waterproof IP67 Circular Connectors 5-pin A Code
Specifications
Brand Name :
KRONZ
Model Number :
H1205MA-9/L
Place of Origin :
Guangdong, China
Certification :
CE
MOQ :
5
Price :
Negotiable
Packaging Details :
Polybag packing
Delivery Time :
5-8 working days
Payment Terms :
T/T, Western Union,
Supply Ability :
100000 pieces per month
Connect :
Screw Connection
Mating cycles :
>100
Contact nut material :
Brass, Alloy
Voltage :
60V
Cable Outlet Diameter :
4-8mm
Contact surface material :
Brass, Gold-plated
Standard :
IEC 61076-2-101
Pin :
5
Description
M12 Sensor Connector Angled Screw Waterproof IP67 Circular Connectors 5-pin A Code
Product Specifications
Attribute Value
Connect Screw Connection
Mating cycles >100
Contact nut material Brass, Alloy
Voltage 60V
Cable Outlet Diameter 4-8mm
Contact surface material Brass, Gold-plated
Standard IEC 61076-2-101
Pin 5
Product Overview

The M12 Connector is a high-performance circular connector designed for industrial applications, featuring a durable screw connection mechanism and IP67 waterproof rating. Its robust construction ensures reliable performance in demanding environments.

Key Features
  • 5-pin A-coded M12 connector with screw locking mechanism
  • Rated current: 4A with 60V voltage capacity
  • High-quality materials: Brass alloy contacts with gold plating
  • Durable construction with ABS, PBT/PA clamp matrix
  • Wide operating temperature range: -25°C to +85°C
  • Angled cable outlet for flexible installation
  • IP67 protection against dust and water immersion
M12 Sensor Connector Angled Screw Waterproof IP67 Circular Connectors 5-pin A Code M12 Sensor Connector Angled Screw Waterproof IP67 Circular Connectors 5-pin A Code M12 Sensor Connector Angled Screw Waterproof IP67 Circular Connectors 5-pin A Code
Technical Parameters
Parameter Value
Insulation resistance ≥100MΩ
Connect type Screw Connection
Seal material NBR
Contact resistance ≤5mΩ
Contact carrier material ABS, PA, Black
Standard compliance IEC 61076-2-101
Mating cycles >100
Applications

The M12 Connector is ideal for industrial automation, sensor networks, and electrical installations requiring reliable, waterproof connections. Its versatile design makes it suitable for:

  • Factory automation systems
  • Industrial sensor connections
  • Robotics and motion control
  • Process control equipment
  • Outdoor industrial applications
M12 Sensor Connector Angled Screw Waterproof IP67 Circular Connectors 5-pin A Code M12 Sensor Connector Angled Screw Waterproof IP67 Circular Connectors 5-pin A Code
Support & Services

Our comprehensive support includes technical assistance, installation guidance, and maintenance recommendations to ensure optimal performance of your M12 connectors.

M12 Sensor Connector Angled Screw Waterproof IP67 Circular Connectors 5-pin A Code
Packaging & Shipping

Each M12 Connector is individually packaged in protective polybags. Standard shipping delivers within 3-5 business days.

M12 Sensor Connector Angled Screw Waterproof IP67 Circular Connectors 5-pin A Code M12 Sensor Connector Angled Screw Waterproof IP67 Circular Connectors 5-pin A Code
