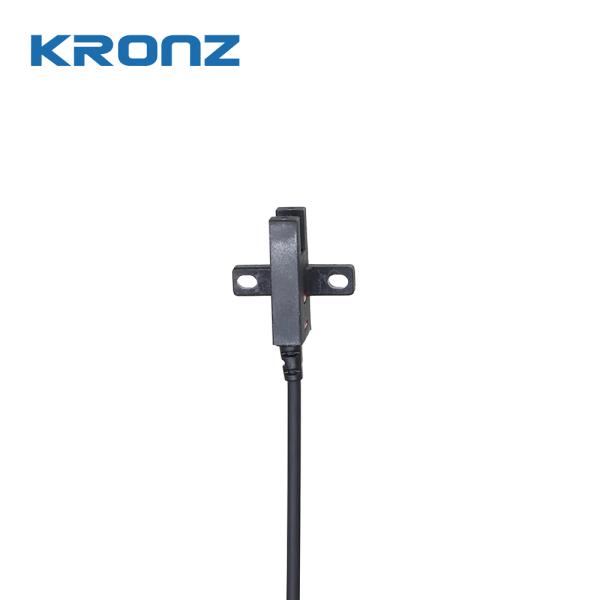

Slot-Type Photoelectric Sensor NPN BSM-202N Light Source GaAs IR LED（940nm)
Slot-Type Photoelectric Sensor NPN BSM-202N Light Source GaAs IR LED（940nm)
Slot-Type Photoelectric Sensor NPN BSM-202N Light Source GaAs IR LED（940nm)
Slot-Type Photoelectric Sensor NPN BSM-202N Light Source GaAs IR LED（940nm)
Specifications
Brand Name :
KRONZ
Model Number :
BSM-202N
Certification :
CE
Place of Origin :
Guangdong，China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
10000 pieces per month
Delivery Time :
5-8 working days
Packaging Details :
Polybag packing
Detection Mode :
Light ON during power-on, Light OFF during detection
Repeatablity :
＜0.03mm below
Switching Capacity :
0~200mA
Residual Voltage :
Below 3V (at load current 100mA, with 2m wire length)
Connection Method :
Connector type, customizable special drag chain cables
Protection Circuit :
Reverse Polarity Protection、Overcurrent Protection、Short-Circuit Protection
Insulation Resistance :
≥50 MΩ (measured at DC 500V megohmmeter) between charging terminal and housing.
Ambient Temperature :
Operating：-25~70°C（non-condensing、Ice-resistant）
Ambient Humidity :
Operating/Storage Humidity: 35~95% RH (non-condensing)
Description
Slot-Type Photoelectric Sensor NPN BSM-202N Light Source GaAs IR LED (940nm)
Product Attributes
Attribute Value
Detection Mode Light ON during power-on, Light OFF during detection
Repeatability <0.03mm below
Switching Capacity 0~200mA
Residual Voltage Below 3V (at load current 100mA, with 2m wire length)
Connection Method Connector type, customizable special drag chain cables
Protection Circuit Reverse Polarity Protection, Overcurrent Protection, Short-Circuit Protection
Insulation Resistance ≥50 MΩ (measured at DC 500V megohmmeter) between charging terminal and housing
Ambient Temperature Operating: -25~70°C (non-condensing, Ice-resistant)
Ambient Humidity Operating/Storage Humidity: 35~95% RH (non-condensing)
Product Description
The BSM-202N is a compact slot-type photoelectric sensor designed for precise object detection in automated systems. Utilizing a gallium arsenide infrared LED with a 940nm wavelength, it provides reliable and accurate sensing performance. This model features an NPN open collector output, making it ideal for integration into a wide range of industrial control circuits.
Key Features
  • Detection Type: Slot-type through-beam sensor for high-speed object detection
  • Output Type: NPN open collector
  • Light Source: GaAs IR LED (940nm) for stable performance and low interference
  • Slot Width: Optimized for detecting small parts or edges
  • Fast Response Time: Ideal for high-speed automation environments
  • U-Shaped Compact Design: Built-in emitter and receiver simplify alignment and installation
  • Infrared Light Source: Stable operation under ambient lighting conditions
  • Durable Build: Resistant to shock, vibration, and industrial contaminants
  • Easy Mounting: No need for separate alignment of emitter and receiver
Technical Parameters
Slot-Type Photoelectric Sensor NPN BSM-202N Light Source GaAs IR LED（940nm)
Product Images
Slot-Type Photoelectric Sensor NPN BSM-202N Light Source GaAs IR LED（940nm) Slot-Type Photoelectric Sensor NPN BSM-202N Light Source GaAs IR LED（940nm) Slot-Type Photoelectric Sensor NPN BSM-202N Light Source GaAs IR LED（940nm) Slot-Type Photoelectric Sensor NPN BSM-202N Light Source GaAs IR LED（940nm)
Product Dimension Drawing
Slot-Type Photoelectric Sensor NPN BSM-202N Light Source GaAs IR LED（940nm)
