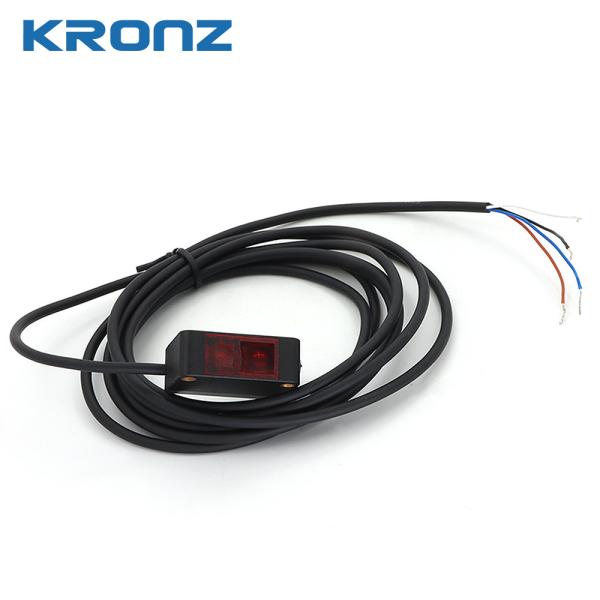

Linear Beam 30-300mm Sensing Range Photoelectric Sensors IP64 Rating Laser 655mm
Linear Beam 30-300mm Sensing Range Photoelectric Sensors IP64 Rating Laser 655mm
Linear Beam 30-300mm Sensing Range Photoelectric Sensors IP64 Rating Laser 655mm
Linear Beam 30-300mm Sensing Range Photoelectric Sensors IP64 Rating Laser 655mm
Specifications
Sensing Range :
30-300mm
Ip Rating :
IP64
Response Time :
<0.5ms
Distance Deviation :
<3%
Power Supply :
DC 12~24V; ripple :±10%
Storage Temperature :
-40°C+70°C (non-freezing,non-condensing)
Sensing Method :
Linear beam
Switching Mode :
Light/dark switching
Brand Name :
KRONZ
Model Number :
BLQ20S-G300P
Place of Origin :
Guangdong, China
Certification :
CE
MOQ :
1
Price :
Negotiable
Packaging Details :
Polybag packing
Delivery Time :
5-8 working days
Payment Terms :
T/T,Western Union,
Supply Ability :
10000 pieces per month
Description
Linear Beam 30-300mm Sensing Range Photoelectric Sensors IP64 Rating Laser 655mm
Product Specifications
Attribute Value
Sensing Range 30-300mm
IP Rating IP64
Response Time <0.5ms
Distance Deviation <3%
Power Supply DC 12~24V; ripple :±10%
Storage Temperature -40°C+70°C (non-freezing,non-condensing)
Sensing Method Linear beam
Switching Mode Light/dark switching
Product Overview

These photoelectric sensors provide a versatile and reliable solution for industrial automation applications. Featuring threaded mounting for secure installation and an IP64 rating for protection against dust and water ingress, they deliver consistent performance in challenging environments.

CMOS Laser Displacement Photoelectric Sensor Technology

A CMOS laser displacement photoelectric sensor is a precision measurement tool that determines position, height, or thickness without physical contact. The sensor projects a laser beam onto the target object and uses a CMOS image sensor to detect the reflected light with high accuracy and speed, capable of detecting changes at micron or sub-micron levels.

Linear Beam 30-300mm Sensing Range Photoelectric Sensors IP64 Rating Laser 655mm Linear Beam 30-300mm Sensing Range Photoelectric Sensors IP64 Rating Laser 655mm
Technical Details

NPN | BLQ20-G300N (Pointed beam)

  • Assured Sensing Range: 40-300mm (white paper:100mm), 40-280mm (black paper:100mm)
  • White/black deviation: 3%(160mm)
  • Sensing range: 30-300mm
  • Current consumption: <3mA
  • Wave length: Laser (655mm)
  • Control output: open collector; NPN/PNP
  • Switching mode: Light/dark switching
  • Power supply: DC 12~24V; ripple :±10%
  • Response time: <0.5ms
  • Ambient temperature: Operating: -25°C~+55°C; Storage: -40°C+70°C (non-freezing,non-condensing)
  • IP rating: IP64
Linear Beam 30-300mm Sensing Range Photoelectric Sensors IP64 Rating Laser 655mm Linear Beam 30-300mm Sensing Range Photoelectric Sensors IP64 Rating Laser 655mm
Industrial Applications

These photoelectric sensors are ideal for various industrial applications, particularly in packaging and logistics equipment:

  • Carton or Object Height Detection: Classifies or sorts packages based on height in conveyor systems
  • Labeling and Printing Height Calibration: Ensures printers or label applicators maintain correct distance from packaging
Linear Beam 30-300mm Sensing Range Photoelectric Sensors IP64 Rating Laser 655mm Linear Beam 30-300mm Sensing Range Photoelectric Sensors IP64 Rating Laser 655mm Linear Beam 30-300mm Sensing Range Photoelectric Sensors IP64 Rating Laser 655mm Linear Beam 30-300mm Sensing Range Photoelectric Sensors IP64 Rating Laser 655mm
