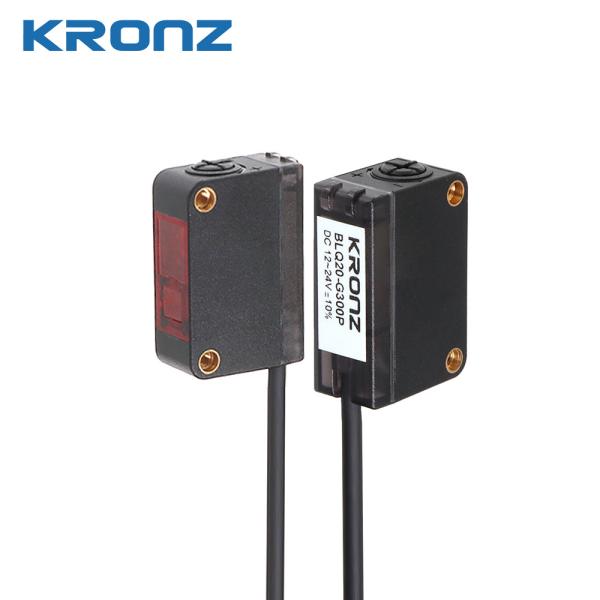

12-24V DC Photoelectric Sensors Diffuse Reflection 40-300mm Sensing Range For White Paper
12-24V DC Photoelectric Sensors Diffuse Reflection 40-300mm Sensing Range For White Paper
12-24V DC Photoelectric Sensors Diffuse Reflection 40-300mm Sensing Range For White Paper
12-24V DC Photoelectric Sensors Diffuse Reflection 40-300mm Sensing Range For White Paper
Specifications
Brand Name :
KRONZ
Model Number :
BLQ20-G300P
Place of Origin :
Guangdong, China
Certification :
CE
MOQ :
1
Price :
Negotiable
Packaging Details :
Polybag packing
Delivery Time :
5-8 working days
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
10000 pieces per month
Operating Temperature :
-25°C To 55°C
Light Source :
Infrared LED
Housing Material :
PBT
Sensing Distance :
30-300mm
Response Time :
<0.5ms
Wave Length :
Laser (655mm)
Storage Temperature :
-40°C To 70°C
Residual Voltage :
＜1V (operating current:＜10mA)
Description
12-24V DC Photoelectric Sensors Diffuse Reflection 40-300mm Sensing Range For White Paper
Product Specifications
Attribute Value
Operating Temperature -25°C To 55°C
Light Source Infrared LED
Housing Material PBT
Sensing Distance 30-300mm
Response Time <0.5ms
Wave Length Laser (655mm)
Storage Temperature -40°C To 70°C
Residual Voltage ＜1V (operating current:＜10mA)
Product Overview
Photoelectric Sensors detect the presence or absence of objects using light transmission and reception. These industrial-grade sensors feature infrared LED light sources and offer reliable performance in automation applications.
Key Features
  • Diffuse reflection sensing method with 40-300mm range
  • Fast response time of <0.5ms for real-time detection
  • Durable PBT housing material for industrial environments
  • Precision laser wavelength (655mm) for accurate detection
  • Wide operating temperature range (-25°C to 55°C)
  • Low residual voltage (<1V) for energy efficiency
12-24V DC Photoelectric Sensors Diffuse Reflection 40-300mm Sensing Range For White Paper 12-24V DC Photoelectric Sensors Diffuse Reflection 40-300mm Sensing Range For White Paper
Technical Details
NPN | BLQ20-G300N (Pointed beam)
Assure Sensing range Sa: 40-300mm (white paper:100mm)
40-280mm (black paper:100mm)
White/black deviation: 3%(160mm)
Distance deviation: ＜3%
Sensing range Sn: 30-300mm
Current consumption: ＜3mA
Wave length: Laser (655mm)
JIS/IEC CLASS 1,FDA CLASS I ＜4.5mW
Control output: open collector; NPN/PNP
Switching mode: Light/dark switching
IP rating: IEC60529: IP64
Housing material: PBT
12-24V DC Photoelectric Sensors Diffuse Reflection 40-300mm Sensing Range For White Paper 12-24V DC Photoelectric Sensors Diffuse Reflection 40-300mm Sensing Range For White Paper
Industrial Applications
These CE-certified photoelectric sensors are widely used in industrial automation for:
  • Object detection on conveyor systems
  • Part counting in production lines
  • Position sensing in automated machinery
  • Quality control inspection systems
  • Packaging and material handling equipment
Operation Principle
The sensor's emitter produces an infrared light beam that is either reflected by the target object (diffuse mode) or received directly. When an object interrupts or reflects this beam, the receiver detects the change and triggers an electrical output signal for process control.
12-24V DC Photoelectric Sensors Diffuse Reflection 40-300mm Sensing Range For White Paper 12-24V DC Photoelectric Sensors Diffuse Reflection 40-300mm Sensing Range For White Paper 12-24V DC Photoelectric Sensors Diffuse Reflection 40-300mm Sensing Range For White Paper
12-24V DC Photoelectric Sensors Diffuse Reflection 40-300mm Sensing Range For White Paper
