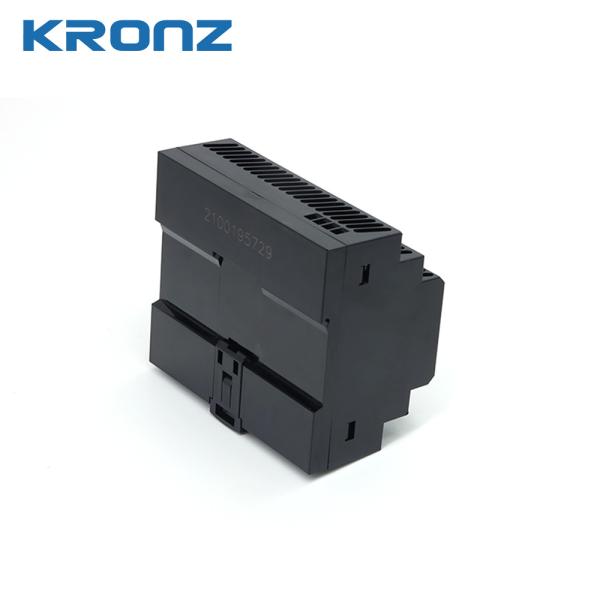

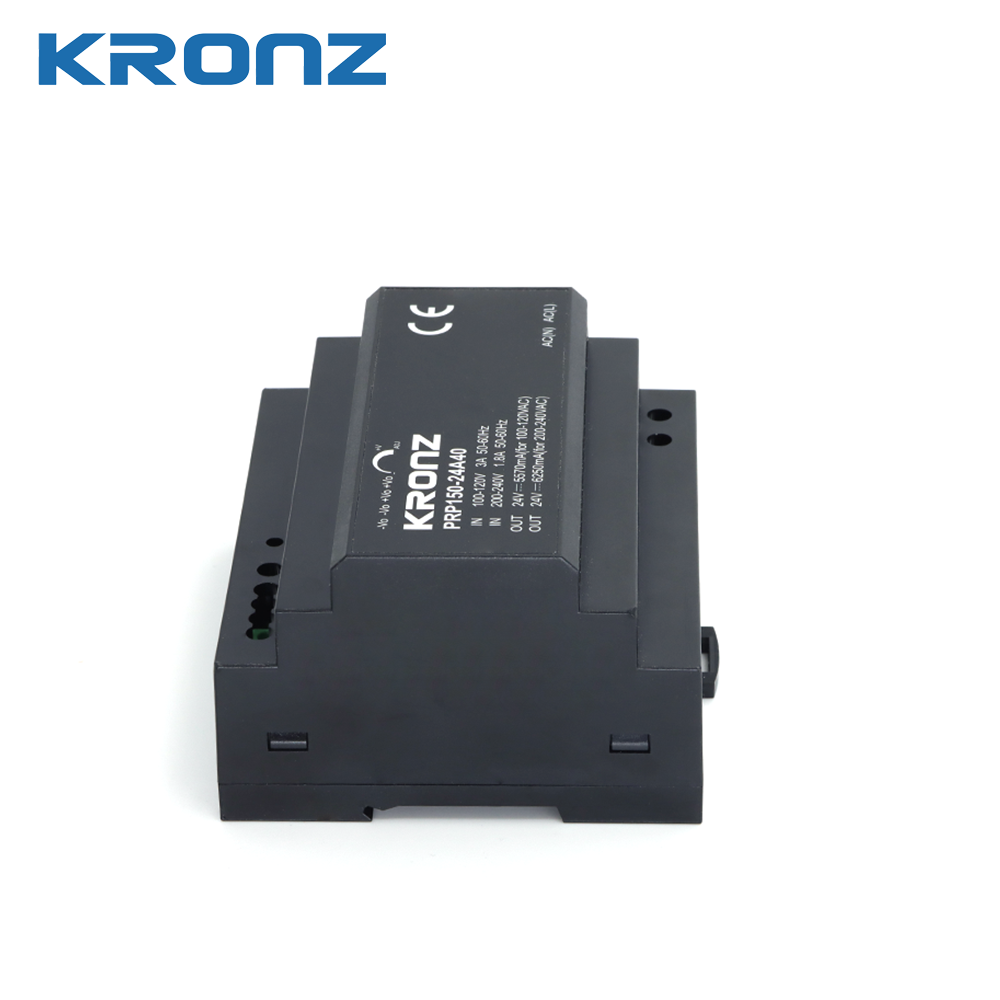

Industrial Power Supply 150W Ultra-thin 105mm Width 15V/9.5A DIN-rail Mini Power Supply
Industrial Power Supply 150W Ultra-thin 105mm Width 15V/9.5A DIN-rail Mini Power Supply
Industrial Power Supply 150W Ultra-thin 105mm Width 15V/9.5A DIN-rail Mini Power Supply
Industrial Power Supply 150W Ultra-thin 105mm Width 15V/9.5A DIN-rail Mini Power Supply
Specifications
Brand Name :
KRONZ
Model Number :
PRP150-15A40
Place of Origin :
Guangdong, China
Certification :
CE
MOQ :
1
Price :
Negotiable
Packaging Details :
Box Packing
Delivery Time :
5-8 working days
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
10000 pieces per month
Output Voltage&Current :
15V/9.5A
Adjustable output voltage range(ADJ) :
13.5-18.0
AC Input voltage :
85~264VAC
Ripple (20MHz ) :
Max. 120mV
Power-down hold time :
12ms(115VAC);30ms (230VAC)
Efficiency (230VAC, %/ Typ.) :
89.5
Weight :
330g
Load regulation :
±1.0% (230VAC)
Description
Industrial Power Supply 150W Ultra-thin 105mm Width 15V/9.5A DIN-rail Mini Power Supply
Key Specifications
Attribute Value
Output Voltage & Current 15V/9.5A
Adjustable output voltage range (ADJ) 13.5-18.0
AC Input voltage 85~264VAC
Ripple (20MHz) Max. 120mV
Power-down hold time 12ms(115VAC);30ms (230VAC)
Efficiency (230VAC, %/ Typ.) 89.5
Weight 330g
Load regulation ±1.0% (230VAC)
Product Overview

The Industrial Power Supply is a reliable and efficient solution designed to meet the power needs of industrial applications. This Industrial Power Converter operates with an input frequency range of 47~63Hz, making it suitable for various industrial environments.

What are industrial power supplies?

They're ruggedized units converting AC to clean DC power for factories. Key features:

  • Reliability: Operate in -25°C to +70°C & survive 5G vibrations
  • Stability: Keep voltage within ±0.2% during motor startups
  • Safety: Short-circuit protection & IP67 dust/water resistance
  • Smart: Monitor health via Modbus/IO-Link (e.g., predict failures)
Industrial Power Supply 150W Ultra-thin 105mm Width 15V/9.5A DIN-rail Mini Power Supply Industrial Power Supply 150W Ultra-thin 105mm Width 15V/9.5A DIN-rail Mini Power Supply
Technical Specifications
Model number for ordering PRP150-15A40
Output power 142.5w
Nominal output voltage & current 15V/9.5A
Adjustable output voltage range (ADJ) 13.5~18.0
Efficiency (230VAC, %/ Typ.) 89.5
Maximum capacitive load (μF) 8000
Input characteristics
AC Input voltage 85~264VAC
DC Input voltage 120~370VDC
Input current 3.0A (115VAC) ; 1.8A (230VAC)
Input frequency 47~63Hz
Output characteristics
Output voltage accuracy ±2%
Load regulation ±1% (230VAC)
Ripple (20MHz) Max. 120mV
Power-down hold time 12ms (115VAC) ; 30ms (230VAC)
Generic features
Operating temperature -40~+70°C
Weight 330g
Safety standards EN62368-1,IS13252(Part1);UL/IEC62368-1,EN/IEC60335-1,IEC61558-1,UL61010-1
Industrial Power Supply 150W Ultra-thin 105mm Width 15V/9.5A DIN-rail Mini Power Supply Industrial Power Supply 150W Ultra-thin 105mm Width 15V/9.5A DIN-rail Mini Power Supply
Applications

KRONZ Industrial Power Supply, model PRP150-14A40, is a versatile and reliable high voltage power supply designed for a wide range of industrial applications. With its robust design and precise output characteristics, this DC/DC converter is suitable for various occasions and scenarios where stable power supply is essential.

How do they differ from commercial power supplies?

Three critical gaps:

  • Durability: Industrial units last 5x longer (>500,000 hrs MTBF)
  • Noise Immunity: <50mv ripple noise vs. commercial>200mV
  • Certifications: Meet EN 61000-6-2 (EMC) & UL 61010 (safety)
Industrial Power Supply 150W Ultra-thin 105mm Width 15V/9.5A DIN-rail Mini Power Supply Industrial Power Supply 150W Ultra-thin 105mm Width 15V/9.5A DIN-rail Mini Power Supply
