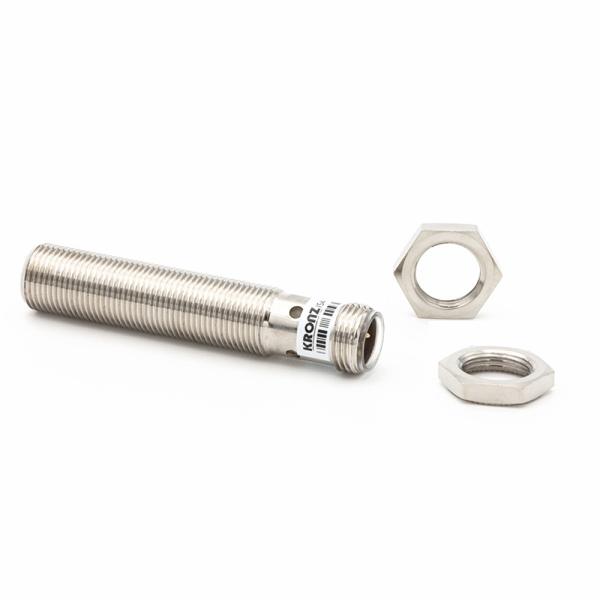

Quasi Flush Inductive Sensors PNP NO 4mm 10-30VDC Brass M12 Connector
Quasi Flush Inductive Sensors PNP NO 4mm 10-30VDC Brass M12 Connector
Quasi Flush Inductive Sensors PNP NO 4mm 10-30VDC Brass M12 Connector
Quasi Flush Inductive Sensors PNP NO 4mm 10-30VDC Brass M12 Connector
Specifications
Brand Name :
KRONZ
Model Number :
IS4-M12PO63-M0A/L
Certification :
CE
Place of Origin :
Guangdong, China
MOQ :
10 pieces
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
100000 pieces per month
Delivery Time :
5-8 working days
Packaging Details :
Polybag packing
Installation Type :
Quasi-flush
Snesing Range :
4mm
Assured sensing range(Sa) :
0…3.2mm
Standard target :
Fe 12*12*1t
Cylindrical size :
M12*1*63mm
Residual voltage :
≤2.5V
Ambient temperature :
-25℃…70℃
Ambient humidity :
35-95%RH
Description

Inductive Sensors Qiasi-flush PNP NO 4mm10-30VDC LED Display Brass M12 Connector

Product Description

Inductive sensors contribute significantly to quality control. They can precisely detect the presence and alignment of metal parts during production, reducing errors and improving product quality. Inductive sensors are also indispensable in industrial automation. They enable proximity detection in machinery, preventing accidents and minimizing damage. For example, in conveyor systems, they ensure that objects are properly positioned and avoid jams.

■ Installation type: Quasi-flush
■ Sensing range Sn: 4mm
■ Output function: PNP,NO
■ Supply voltage: 10-30VDC
■ Connection type: M12 connector
■ Housing material: Brass,nickel-plated

Technical Data

Installation type Quasi-flush
Sensing range(Sn) 4mm
Assured sensing range(Sa) 0…3.2mm
Standard target Fe 12*12*1t
Cylindrical size M12*1*63mm
Residual voltage ≤2.5V
Supply voltage 10…30VDC
Load current ≤200mA
Current consumption ≤15mA
Switching frequency 800Hz
Tolerance(Sr) ≤±10%
Hysteresis range 1…20%
Repeatability ≤3%
Ambient temperature -25℃…70℃
Ambient humidity 35-95%RH
Reverse polarity protection Yes
Short-circuit protection Yes
Withstand voltage 1000V/AC 50/60Hz 60s
Insulation resistance ≥50MΩ(500VDC)
Vibration resistance Complex amplitude 1.5mm 10…50Hz(2 hours in each of the X,Y,Z directions)
Enclosure rating IP 67
LED display Yellow LED
Housing material Brass, nickel-plated
Connection type M12 connector

Dimensional Drawing

Quasi Flush Inductive Sensors PNP NO 4mm 10-30VDC Brass M12 Connector

Wiring Diagram

Quasi Flush Inductive Sensors PNP NO 4mm 10-30VDC Brass M12 Connector
