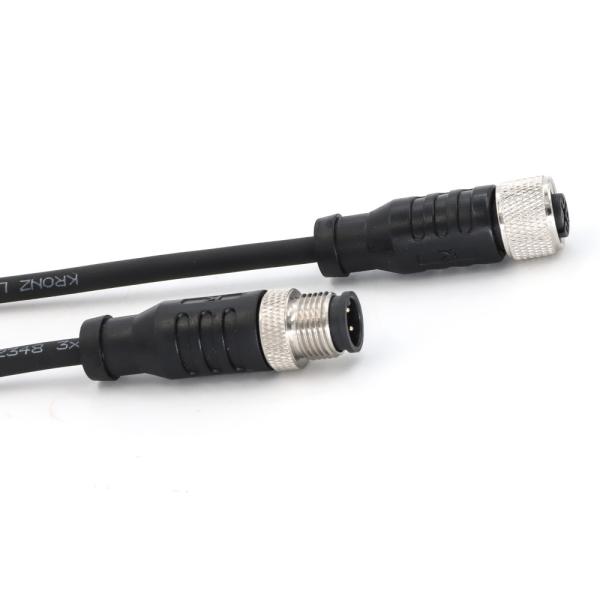

5 Pin M12 Connectors Pre Assembled 5M Cable Male Straight PVC IEC 61076-2-101
5 Pin M12 Connectors Pre Assembled 5M Cable Male Straight PVC IEC 61076-2-101
5 Pin M12 Connectors Pre Assembled 5M Cable Male Straight PVC IEC 61076-2-101
5 Pin M12 Connectors Pre Assembled 5M Cable Male Straight PVC IEC 61076-2-101
Specifications
Housing material :
TPU, black
Shielded :
No
Wire Color :
1=BN 2=WH 3=BU 4=BK 5=GY
Description :
M12 Pre-assembled Connectors
Voltage :
60V
Length :
5m
Wire Gauge :
5×0.34 (5×22AWG) PVC, black
Rated Current :
4A
Brand Name :
KRONZ
Certification :
CE
Payment Terms :
T/T, Western Union,
Supply Ability :
100000 pieces per month
Delivery Time :
5-8 working days
Packaging Details :
Polybag packing
Model Number :
M1205M-5/P00R
Place of Origin :
Guangdong, China
MOQ :
50 pieces
Price :
Negotiable
Description
5 Pin M12 Connectors Pre Assembled 5M Cable Male Straight PVC IEC 61076-2-101
Product Attributes
Attribute Value
Description M12 Pre-assembled Connectors
Housing material TPU, black
Wire Color 1=BN 2=WH 3=BU 4=BK 5=GY
Rated Current 4A
Voltage 60V
Wire Gauge 5×0.34 (5×22AWG) PVC, black
Length 5m
Shielded No
Product Description

The threaded locking mechanism of M12 connectors ensures a secure connection that is easy to install and remove. This feature reduces installation time and ensures reliable performance.

5 Pin M12 Connectors Pre Assembled 5M Cable Male Straight PVC IEC 61076-2-101
Technical Specifications
Standard: IEC 61076-2-101
Contact nut material: Brass, nickle-plated
Contact surface material: Brass, gold-plated
Contact carrier material: PA, black
Housing material: TPU, black
Seal material: FPM/FKM
Insulation resistance: ≥100MΩ
Contact resistance: ≤5mΩ
Pollution degree: 3
Ambient temperature: -25~+85℃
Mating cycles: >100
Degree of protection: IP67

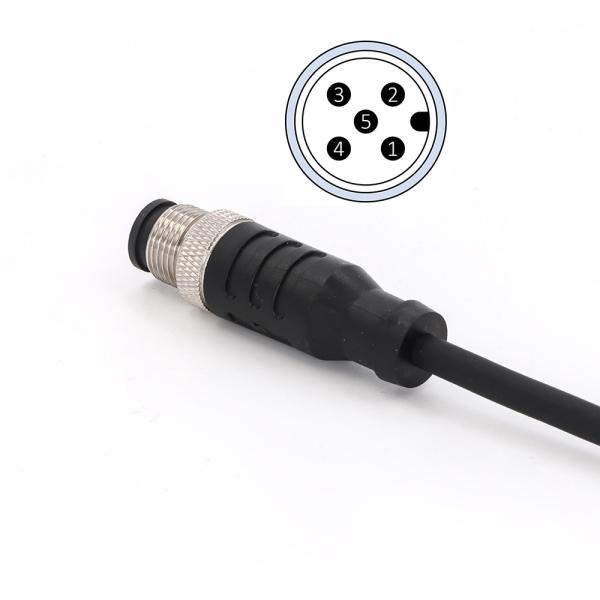

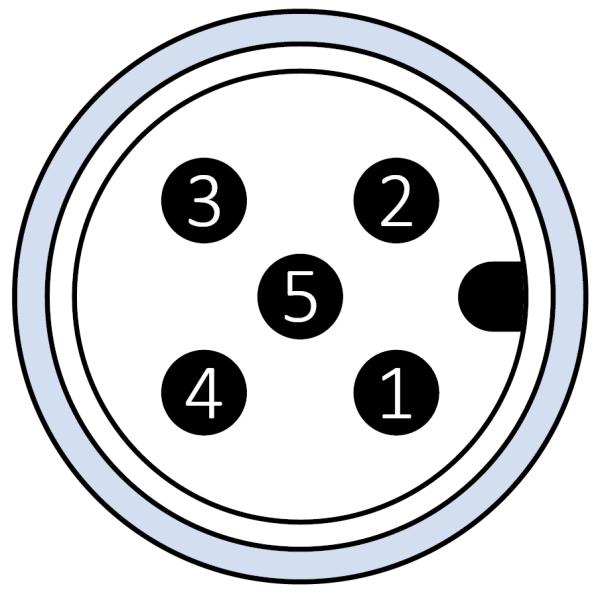

Pin Configuration
5 Pin M12 Connectors Pre Assembled 5M Cable Male Straight PVC IEC 61076-2-101
Pin assignment Wire color Coding Rated current Voltage Wire gauge Cable outlet Length Model No.
See diagram 1=BN 2=WH 3=BU 4=BK 5=GY A 4A 60V 5×0.34 (5×22AWG) PVC, black Straight 2M, 5M, 10M M1205M-2/P00R, M1205M-5/P00R, M1205M-10/P00R
