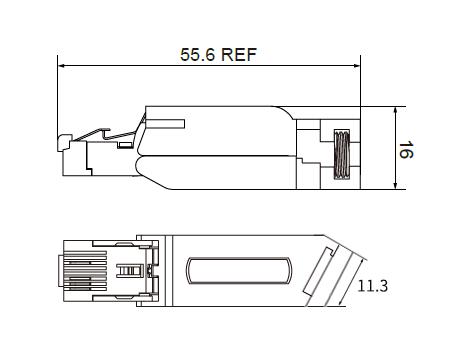

Fast Connect RJ45 Connector Plug 145 Metal Housing 4Pin 100MBit/S
Product Attributes
| Attribute |
Value |
| Product Name |
RJ45 Field-wirable Assembly Connector |
| Color |
Silver |
| Material |
Brass, gold-plated |
| IP rate |
IP20 |
| Contact Method |
IDC |
| Date Rate |
≥ 10/100 Mbit/s |
| Power Transmission |
POE, POE+ |
| Ambient Temperature |
-25~+85℃ |
Product Description
Fast Connect RJ45 Connector RJ45 Plug 145 Metal Housing 4 Pin 100MBit/S
Product Features
- Special tools can be used to connect 4-core twisted pair cables satisfactorily
- The compact, ruggedized RJ45 connectors can be used in industrial and office environments and allows for quick and easy cable connection
Technical Data
| Specification |
Value |
| Pin assignment |
4 PIN |
| Contact nut material |
Zinc alloy, nickel-plated |
| Contact surface material |
Brass, gold-plated |
| Contact carrier material |
Zinc alloy, nickel-plated |
| Contact method |
IDC |
| Degree of protection |
IP20 |
| Transmission characteristics |
≥Cat5 |
| Data rate |
≥ 10/100 Mbit/s |
| Power transmission |
POE, POE+ |
| Ambient temperature |
-20~+70℃ |
| Mating cycles |
≥10 |
Pin Assignment Specifications
| Pin assignment |
Type |
Rated current |
Voltage |
Wire gauge |
Cable outlet |
Model No. |
 |
RJ45 |
1.5A |
45V |
0.14~0.34 mm²
26~22 AWG
cable diameter: 6.5mm |
Straight |
RJ45S/C40/O |
