M12 Connectors Ethernet/IP Angled Male PVC Drag Chain Shielded M12 8 Pin X Code Connector
M12 Connectors Ethernet/IP Angled Male PVC Drag Chain Shielded M12 8 Pin X Code Connector
M12 Connectors Ethernet/IP Angled Male PVC Drag Chain Shielded M12 8 Pin X Code Connector
M12 Connectors Ethernet/IP Angled Male PVC Drag Chain Shielded M12 8 Pin X Code Connector
Specifications
Brand Name :
KRONZ
Model Number :
M1208XMA-2/E60K
Certification :
CE
Place of Origin :
Guangdong, China
MOQ :
50
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
100000 pieces per month
Delivery Time :
5-8 working days
Packaging Details :
Polybag packing
Cable :
Cate6A 26AWG
Coding :
X-Code
Pin :
8
Current :
0.5A
Wire gauge :
4 x 2 x 0.14
OD :
6.4
Cable color :
Green
Cable outlet :
Angled
Description

M12 Connectors Ethernet/IP Angled Male PVC Drag Chain Shielded M12 8 Pin X Code Connector

Product Description

The M12 Ethernet/IP cable is specifically designed for industrial environments, featuring an X-coded angled cable outlet. It uses a Category 6A wire gauge of 4×2×0.14 (26 AWG), with a yellowish-green PVC outer sheath and drag chain, making it highly durable and wear-resistant. The double-shielded cable provides superior protection and excellent anti-interference capabilities. M12 connectors are widely used in industrial automation, particularly in applications that require high reliability and resistance to vibration.

M12 Connectors Ethernet/IP Angled Male PVC Drag Chain Shielded M12 8 Pin X Code ConnectorM12 Connectors Ethernet/IP Angled Male PVC Drag Chain Shielded M12 8 Pin X Code Connector

Technical Data

Standard IEC 61076-2-101
Contact nut material Brass, nickle-plated
Contact surface material Brass, gold-plated
Contact carrier material PA, black
Housing material TPU, black
Seal material FPM/FKM
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Pollution degree 3
Ambient temperature -25~+85℃
Mating cycles >100
Degree of protection IP67

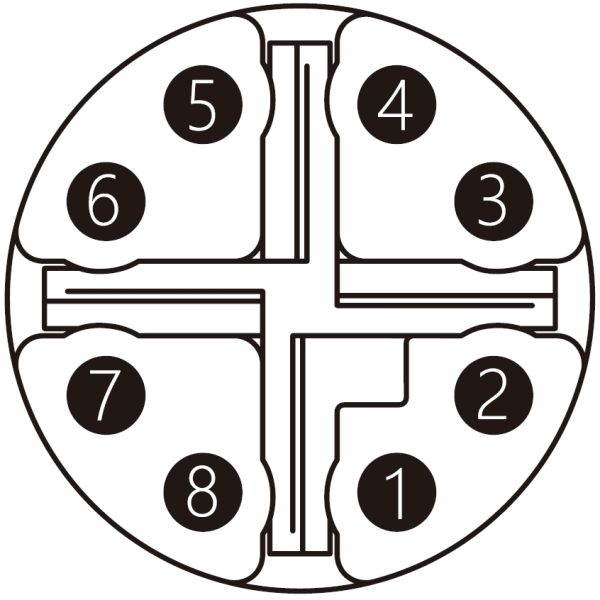

Pin assignment Wire color Coding Rated current Voltage Wire gauge Cable outlet Length Model No.
M12 Connectors Ethernet/IP Angled Male PVC Drag Chain Shielded M12 8 Pin X Code Connector

1 = WH/OR
2 = OR
3 = WH/GN
4 = GN
5 = WH/BN
6 = BN
7 = WH/BU
8 = BU

 X 0.5A 30V 4×2×0.14,
(4×2×26AWG)
yellowish green,
PVC,drag chain,
OD=6.4		 Angled 2M M1208XMA-2/E60K

M12 Connectors Ethernet/IP Angled Male PVC Drag Chain Shielded M12 8 Pin X Code Connector
