M12 male bent pre cast connector T-CODE IP67 Suitable for automated sensors
M12 male bent pre cast connector T-CODE IP67 Suitable for automated sensors
M12 male bent pre cast connector T-CODE IP67 Suitable for automated sensors
M12 male bent pre cast connector T-CODE IP67 Suitable for automated sensors
M12 male bent pre cast connector T-CODE IP67 Suitable for automated sensors
M12 male bent pre cast connector T-CODE IP67 Suitable for automated sensors
Specifications
Packaging Details :
Polybag packing
Contact resistance :
≤5mΩ
Brand Name :
KRONZ
MOQ :
80
Payment Terms :
T/T,Western Union,
Supply Ability :
100000 pieces per month
Line gauge :
4×1.5 (4×16AWG) black PVC
Wire color :
1=BN 2=WH 3=BU 4=BK
Degree of protection :
IP67
Ambient temperature :
-25~+85℃
Price :
Negotiable
Delivery Time :
5-8 working days
Mating cycles :
>100
Rated current :
12A
Certification :
CE
Implementation standards :
IEC 61076-2-101
Insulation resistance :
≥100MΩ
Seal material :
FPM/FKM
Housing material :
plastic,TPU, Black
Model Number :
M1204TMA-2/P00K
Coding system :
T-coded
Contact surface material :
Alloy, copper zinc, gold plated
Place of Origin :
Guangdong, China
Voltage :
63VDC
Description

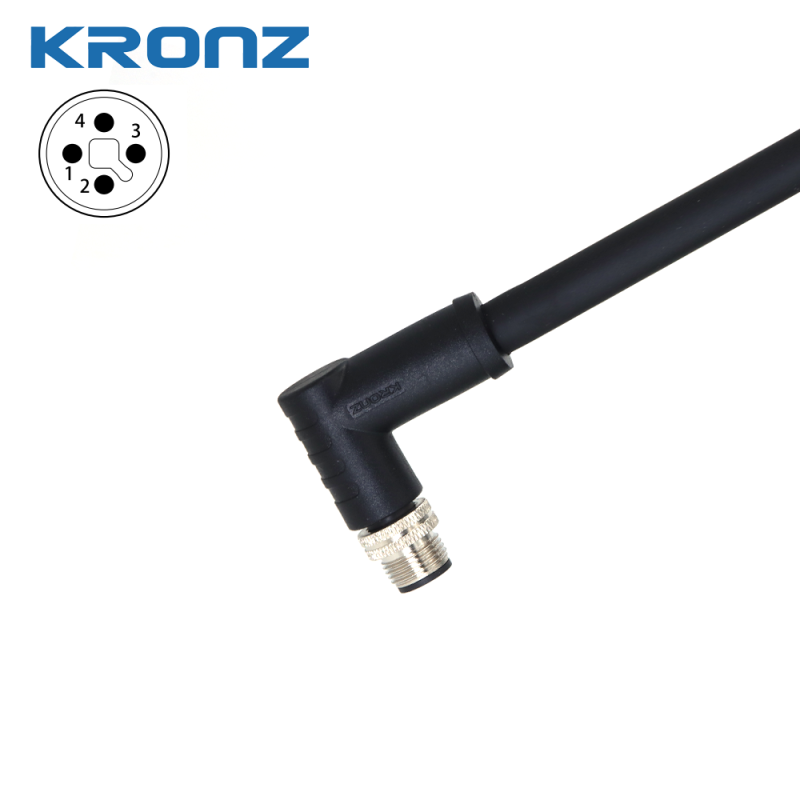

M12 Male Molded Cable, Angled, T-coded 4-CORE with IP67 Protection

KRONZ M12 Male Angled Pre-assembled Cable Connector - Power Series | IP67 Waterproof | T-coded | 4-CORE | Precast 4x16AWG | Black PVC | 63VDC| 2M/5M/10M

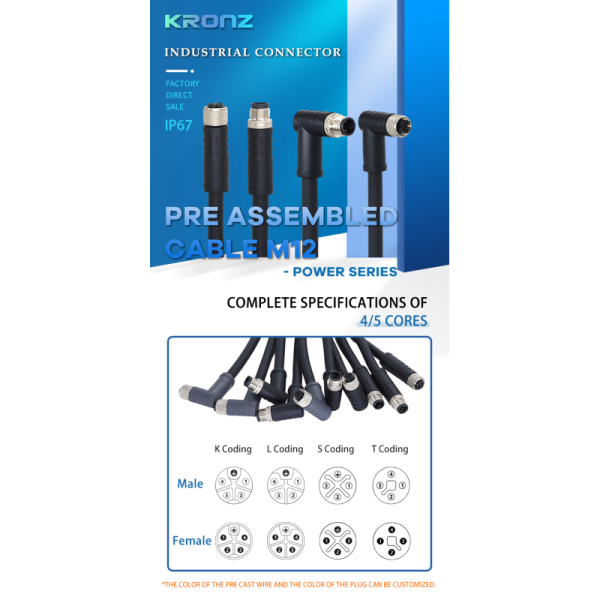

Product Specifications by Coding

M12 male bent pre cast connector T-CODE IP67 Suitable for automated sensors

Application Scenarios: DC sensor and actuator power connection (63VDC)
Number of Pins: 4 Pins
Rated Current/Voltage:12A / 63VDC
Wire Gauge: 4 x 1.5 mm² (Black PVC)
Wire Sequence Definition:
1 = Brown (BN)
2 = White (WH)
3 = Blue (BU)
4 = Black (BK)
Optional Lengths and Models:
2 meters: M1204TMA-2/P00K
5 meters: M1204TMA-5/P00K
10 meters: M1204TMA-10/P00K

Hero Section & Key Features

M12 male bent pre cast connector T-CODE IP67 Suitable for automated sensors

【Factory Direct Sales · Strength Guarantee】 KRONZ industrial-grade M12 connectors are designed for harsh industrial environments. Utilizing a pre-assembled process, they are plug-and-play, significantly reducing installation time.


IP67 Protection Rating: Excellent waterproof and dustproof performance, fearless of outdoor and humid environments.

Highly Flexible PVC Cable: Resistant to bending, cold and heat (-25°C ~ +85°C), adaptable to complex wiring needs.

Gold Plated Pins: Ensures stable signal transmission, resists oxidation, and has low contact resistance (≤ 5mΩ).

Rugged Housing: Injection molded from PA+GF material, combined with nickel-plated metal nuts, shock-resistant and tensile-resistant.

General Technical Data

Parameter Items Specifications
Standards IEC 61076-2-101
Connector Materials Alloy, Copper-Zinc, Nickel Plating
Contact Materials Alloy, Copper-Zinc,Gold plating
Contact Carrier/Housing Plastic, PA, Black
Clamping substrate material Plastic, TPU, Black
Sealing material FPM/FKM
Insulation resistance ≥ 100MΩ
Contact resistance ≤ 5mΩ
Pollution degree 3
Ambient temperature -25°C ~ +85°C
Mechanical life cycle > 100
Protection class IP67 (Waterproof & Dustproof)
Wire color Black PVC (customizable)
M12 male bent pre cast connector T-CODE IP67 Suitable for automated sensors M12 male bent pre cast connector T-CODE IP67 Suitable for automated sensors

Why Choose KRONZ?

M12 male bent pre cast connector T-CODE IP67 Suitable for automated sensors

Stable Performance: Precision manufacturing ensures industrial-grade connection stability.

Tensile and Wear-resistant: High-quality PVC outer sheath, suitable for cable chains and mobile equipment.

Technical Support: Professional team provides selection and installation guidance.

Quality Assurance: Rigorous factory testing, gold-plated contacts for oxidation resistance.

Fast Delivery: Factory direct sales, ample inventory, and fast shipping.

Intimate Service: Customization services available (wire length and color can be customized).

Why Choose This M12 Connector

This connector is specifically designed for demanding industrial applications where reliability, durability, and environmental protection are critical. The pre-molded construction ensures consistent performance in harsh conditions while simplifying installation and maintenance.

M12 male bent pre cast connector T-CODE IP67 Suitable for automated sensorsM12 male bent pre cast connector T-CODE IP67 Suitable for automated sensors

M12 male bent pre cast connector T-CODE IP67 Suitable for automated sensors

FAQ & Customization

Q: Can the cable color be customized?

A: Yes, the color of the precast cable and the plug can be customized according to your requirements (please contact customer service).

Q: What are the standard lengths?

A: The standard lengths are 2 meters / 5 meters / 10 meters. If you need other lengths, we can customize any length for you.

Q: Do you have both angled and straight connectors?

A: This page mainly displays angled male connectors. If you need straight or other specifications (such as female connectors), please contact customer service for the complete product catalog.
