M12 Panel Mount Male Connector with 5-Pin A-Code, Front Fastened and Solder Cup Termination for Industrial Automation
M12 Panel Mount Male Connector with 5-Pin A-Code, Front Fastened and Solder Cup Termination for Industrial Automation
Specifications
Brand Name :
KRONZ
Model Number :
F1205M-SF/M16C
Certification :
CE
Place of Origin :
Guangdong, China
MOQ :
10 pieces
Price :
Negotiable
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
100000 pieces per month
Delivery Time :
5-8 working days
Packaging Details :
Paper box packing
Execution Standard :
IEC 61076-2-101
Connecting Nut Material :
Alloy, Copper-Zinc, Nickel Plating
Contact Material :
Alloy, Copper-Zinc, Gold Plating
Contact Carrier Material :
Plastic, PA, Black
Clamping Base Material :
Alloy, Copper-Zinc, Nickel Plating
Sealing Material :
FPM/FKM
Description

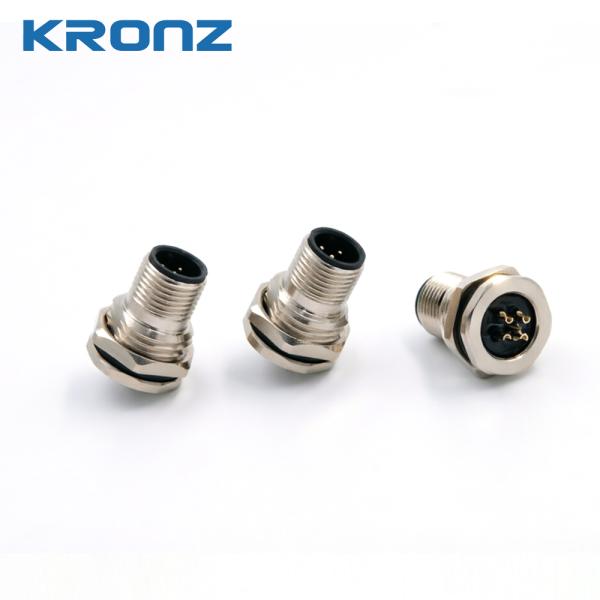

M12 Panel Mount Connector, Male, A-Code, 5-Pin, Front Fastened, Solder Cup - F1205M-SF/M16C
Product Overview

The KRONZ F1205M-SF is an M12 panel mount connector featuring a male plug with 5 pins in A-code configuration. Designed for front fastening installation with M16 panel cutout, this connector offers solder cup termination for flexible wire connections. With IP67 protection and compliance with IEC 61076-2-101 standard, it provides robust performance for industrial automation, sensors, and control applications.

Key Features
  • M12 panel mount male connector with A-code configuration
  • 5-pin design for multi-signal applications
  • Front fastened mounting for secure installation
  • Solder cup termination for reliable wire connections
  • M16 panel cutout compatible
  • Rated 4A current and 60V voltage capacity
  • IP67 protection against dust and water immersion
  • Gold-plated copper-zinc alloy contacts for excellent conductivity
  • FPM/FKM seal material for chemical and temperature resistance
  • Pollution degree 3 rated for industrial environments
  • Operating temperature: -25°C to +85°C
  • > 100 mating cycles mechanical life
  • ≥100MΩ insulation resistance
  • ≤5mΩ contact resistance
  • Nickel-plated zinc alloy nut and clamping body
  • Black PA contact carrier for visual identification
Technical Specifications
Specification Value
Product Model F1205M-SF/M16C
Connector Type M12 Panel Mount
Gender Male (Plug)
Coding A-Code
Number of Pins 5
Pin Arrangement 4-1-5-3-2
Rated Current 4A
Rated Voltage 60V
Mounting Type Front Fastened
Connection Type Solder Cup
Panel Cutout M16C
Standard IEC 61076-2-101
Protection Class IP67
Insulation Resistance ≥100MΩ
Contact Resistance ≤5mΩ
Pollution Degree 3
Operating Temperature -25°C ~ +85°C
Mechanical Life >100 Mating Cycles
Nut Material Alloy, copper-zinc, nickel-plated
Contact Material Alloy, copper-zinc, gold-plated
Contact Carrier Plastic, PA, black
Clamping Body Alloy, copper-zinc, nickel-plated
Seal Material FPM/FKM
Pin Configuration
Pin Function
1 Pin 1
2 Pin 2
3 Pin 3
4 Pin 4
5 Pin 5
Application Scenarios
  • Industrial automation and control systems
  • PLC and DCS system connections
  • Sensor and instrumentation interfaces
  • Fieldbus communication (DeviceNet, CANopen)
  • Machine vision and embedded systems
  • Robotics and automated machinery
  • Process control and monitoring
  • Factory automation equipment
About KRONZ

KRONZ (Guangzhou) Electronics Co., Ltd. is a leading manufacturer of industrial circular connectors, specializing in M12, M8, and specialty connector solutions. Located in Guangzhou, China, KRONZ serves global markets with products designed for reliability in harsh industrial environments. Our connectors meet international standards including IEC 61076-2-101, providing consistent quality for automation, instrumentation, and control applications.
