M12 Panel Mount Female Connector with Square Flange, IP67 Protection, Gold-Plated Contacts, IEC 61076-2-101 Standard
M12 Panel Mount Female Connector with Square Flange, IP67 Protection, Gold-Plated Contacts, IEC 61076-2-101 Standard
Specifications
Brand Name :
KRONZ
Model Number :
F1203F-SFLC/F1204F-SFLC/F1205F-SFLC/F1208F-SFLC/F1212F-SFLC
Certification :
CE
Place of Origin :
Guangdong, China
MOQ :
10 pieces
Price :
Negotiable
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
100000 pieces per month
Delivery Time :
5-8 working days
Packaging Details :
Paper box packing
Standard :
IEC 61076-2-101
Connecting Nut Material :
Alloy, copper-zinc, nickel-plated
Protection Rating :
IP67
Contact Material :
Alloy, copper-zinc, gold-plated
Sealing Material :
FPM/FKM
Contact Carrier Material :
Plastic, PA, black
Clamping Base Material :
Alloy, copper-zinc, nickel-plated
Operating Temperature :
-25~+85℃
Description

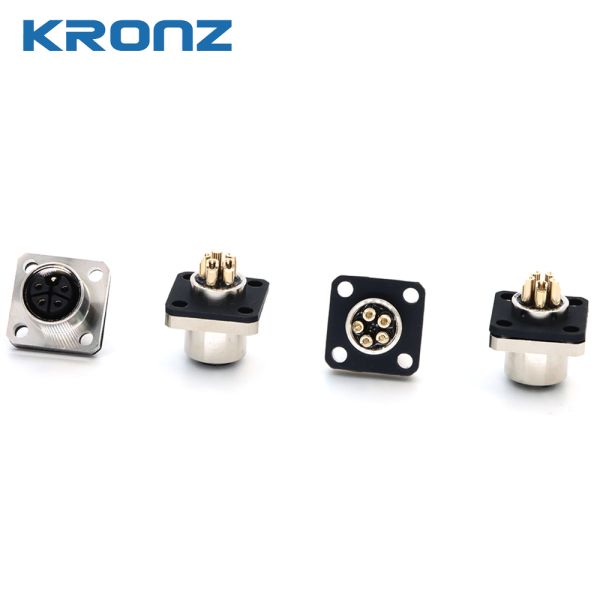

M12 Panel Mount Connector, Female, Square Flange, A-Code, Solder Cup
The KRONZ M12 panel mount connector features a square flange design for secure, four-point mounting in industrial equipment. This female connector comes with solder cup terminations for flexible wiring assembly. The robust metal flange with brushed finish provides reliable mechanical stability and IP67 protection against dust and moisture ingress.
Key Features
  • Square flange design with four corner mounting holes for superior installation stability
  • Front-fastened panel mount for easy front-panel installation
  • Gold-plated copper-zinc alloy contacts ensure excellent conductivity and corrosion resistance
  • Solder cup termination accepts flexible wiring for custom assemblies
  • IP67 protection rating for harsh industrial environments
  • Operating temperature range: -25°C to +85°C
  • IEC 61076-2-101 standard compliance
  • Pollution degree 3 rated for industrial applications
  • 100 mating cycles mechanical durability
  • FPM/FKM seal material provides chemical resistance
  • Nickel-plated alloy housing for durability
  • A-code configuration for sensor and actuator connections
Product Models
Model Coding Pins Rated Current Rated Voltage
F1203F-SFLCA-Code34A250V
F1204F-SFLCA-Code44A250V
F1205F-SFLCA-Code54A60V
F1208F-SFLCA-Code82A30V
F1212F-SFLCA-Code121.5A30V
Technical Specifications
Specification Value
StandardIEC 61076-2-101
CodingA-Code
GenderFemale
Connection TypeSolder Cup
MountingFront Fastened (Panel Mount)
Flange TypeSquare Flange
AngleStraight
Rated Current1.5A / 2A / 4A (model dependent)
Rated Voltage30V / 60V / 250V (model dependent)
Insulation Resistance≥ 100MΩ
Contact Resistance≤ 5mΩ
Pollution Degree3
Operating Temperature-25°C to +85°C
Mechanical Life>100 mating cycles
Protection DegreeIP67
Nut MaterialAlloy, Copper-Zinc, Nickel-Plated
Contact MaterialAlloy, Copper-Zinc, Gold-Plated
Contact Carrier MaterialPA, Black
Clamping Body MaterialAlloy, Copper-Zinc, Nickel-Plated
Seal MaterialFPM/FKM
Pin Configuration
Note: Actual pin assignments should be configured according to specific application requirements.
3-Pin Model (F1203F-SFLC)
Pin Function
1--
2--
3--
4(Earth/Key)
4-Pin Model (F1204F-SFLC)
Pin Function
1--
2--
3--
4--
5-Pin Model (F1205F-SFLC)
Pin Function
1--
2--
3--
4--
5--
8-Pin Model (F1208F-SFLC)
Pin Function
1--
2--
3--
4--
5--
6--
7--
8--
12-Pin Model (F1212F-SFLC)
Pin Function
1--
2--
3--
4--
5--
6--
7--
8--
9--
10--
11--
12--
Application Scenarios
  • Industrial automation and control systems
  • Sensor connections in manufacturing equipment
  • Factory automation and robotics
  • Process control instrumentation
  • Harsh environment industrial enclosures
  • Equipment panel mounting applications
  • Transportation and logistics systems
  • Machine building and mechanical engineering
About KRONZ
KRONZ (Guangzhou) Electronics Co., Ltd. is a professional manufacturer specializing in industrial circular connectors. Our products serve automation, instrumentation, and industrial control applications worldwide.
