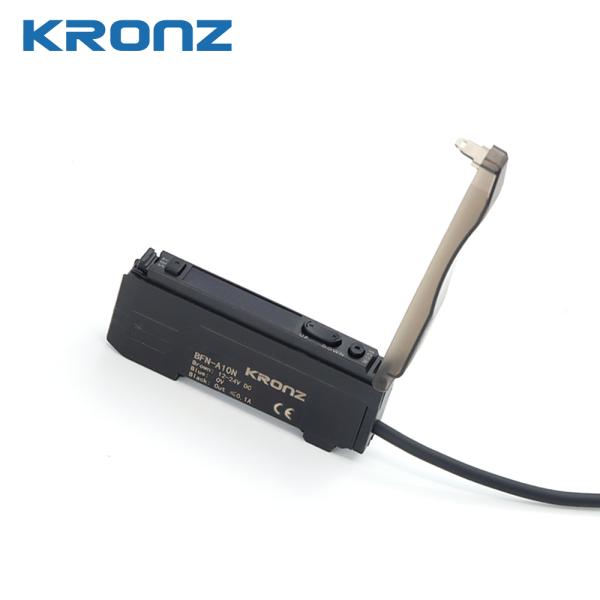

High-Speed Fiber Optic Amplifier NPN/PNP Selectable Output 50μs Response Time Timer Function 12-24VDC Input
High-Speed Fiber Optic Amplifier NPN/PNP Selectable Output 50μs Response Time Timer Function 12-24VDC Input
High-Speed Fiber Optic Amplifier NPN/PNP Selectable Output 50μs Response Time Timer Function 12-24VDC Input
High-Speed Fiber Optic Amplifier NPN/PNP Selectable Output 50μs Response Time Timer Function 12-24VDC Input
High-Speed Fiber Optic Amplifier NPN/PNP Selectable Output 50μs Response Time Timer Function 12-24VDC Input
High-Speed Fiber Optic Amplifier NPN/PNP Selectable Output 50μs Response Time Timer Function 12-24VDC Input
Specifications
Brand Name :
KRONZ
Model Number :
BFH-A10N
Certification :
CE
Place of Origin :
Guangdong, China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
10000 pieces per month
Delivery Time :
5-8 working days
Packaging Details :
Polybag packing
Indicator :
LED
Housing Material :
Polycarbonate
Light Source :
Red LED
Countrol Output :
NPN
Wavelength :
630nm
Power Consumption :
＜ 870 mw
Ambient Temperature :
-20℃ to +55℃
Ambient Humidity :
35 to 85%RH
Description
Industrial Fiber Optic Sensor Amplifier | 630nm Red LED | Ultra-Fast 50μs Response | Light/Dark Mode (LIGHT ON/DARK ON) | 4-Channel Mutual Interference Prevention
Product Description

Multi-Function Digital Fiber Optic Amplifier for Precision Detection | NPN/PNP Output (300mA/100mA) | Delay Timer & Real-Time Settings | Robust PC Housing for Industrial Automation

Ultra-Fast Response Time (50μs, 250μs, 500μs, 1ms Selectable), 630nm Red LED Light Source, High Immunity to Ambient Light (Sunlight 30,000 lux).Selectable NPN/PNP Output (Max 300mA/100mA), Configurable Light-On/Dark-On Mode via Switch.Multi-Mode Timer (Delay On/Off, One-Shot, etc.), Real-Time Function Setting (Two-Point Threshold, Auto/Manual, Key Lock).

High-Speed Fiber Optic Amplifier NPN/PNP Selectable Output 50μs Response Time Timer Function 12-24VDC Input

High-Speed Fiber Optic Amplifier NPN/PNP Selectable Output 50μs Response Time Timer Function 12-24VDC Input

NPN BFN-A10N
Countrol Output NPN: External voltage: below 30V DC (between detection output and 0V); maximum output current: 300mA;
residual voltage: below 2V
Timer Function / Range Delay off, delay on, one-shot timer, on/off, on one-shot; adjustment range: 1–9999 ms
Rated Value NPN: Typical: Maximum 900 mW (max 32 mA at 24V; max 47 mA at 13V
Mutual Interference Prevention F0,F1,F2,F3Four-channel interference suppression

High-Speed Fiber Optic Amplifier NPN/PNP Selectable Output 50μs Response Time Timer Function 12-24VDC Input

High-Speed Fiber Optic Amplifier NPN/PNP Selectable Output 50μs Response Time Timer Function 12-24VDC Input
