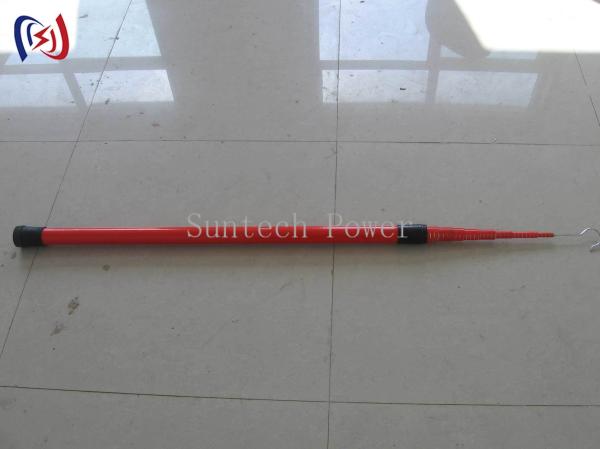

​​Professional Telescopic Measuring Rod For Power Line Height Inspection

The ​​Height Measuring Telescopic Rod​​ is an essential tool for electrical utility workers conducting line inspections, clearance measurements, and height assessments of power infrastructure. This professional-grade measuring device combines precision measurement capabilities with electrical safety features for use in high-voltage environments.

​​Construction & Safety Features:​​

• ​​Rod Material:​​ High-strength fiberglass with epoxy resin coating (100kV/ft dielectric strength)
• ​​Extension System:​​ Locking telescopic sections with position indicators
• ​​Measurement Scale:​​ Laser-etched graduations in feet/inches and metric
• ​​Tip Design:​​ Non-conductive rubberized contact point
• ​​Handles:​​ Textured EPDM rubber with ergonomic grip
• ​​Visibility:​​ High-contrast markings for easy reading
• ​​Accessories:​​ Carrying case and cleaning cloth included

​​Technical Specifications:​​

• ​​Voltage Rating:​​ Up to 36kV (customizable)
• ​​Length Range:​​ 6ft to 16ft (1.8m to 4.9m) extended
• ​​Collapsed Length:​​ 3ft (0.9m) for easy transport
• ​​Weight:​​ 2.2-4.4 lbs (1-2 kg)
• ​​Measurement Accuracy:​​ ±0.5% of reading
• ​​Standards Compliance:​​ ANSI/NETA ATS-2017, IEC 61235
• ​​Operating Temp:​​ -40°F to +140°F (-40°C to +60°C)

​​Performance Advantages:​​
✔ ​​Non-conductive materials​​ ensure electrical safety
✔ ​​Precision measurements​​ for compliance documentation
✔ ​​Easy one-hand operation​​ with locking mechanism
✔ ​​Durable construction​​ withstands job site conditions
✔ ​​Clear visibility​​ of measurement markings
✔ ​​Compact storage​​ when collapsed

​​Professional Applications:​​

1. ​​Power line inspections​​ - conductor height verification
2. ​​Clearance assessments​​ - vegetation management
3. ​​Substation work​​ - equipment height measurements
4. ​​New construction​​ - installation verification
5. ​​Safety audits​​ - regulatory compliance checks

​​Available Configurations:​​

• ​​Basic measuring rod​​ (manual reading)
• ​​Digital model​​ (with LCD display)
• ​​Insulated version​​ (for live-line work)
• ​​Extended reach​​ (up to 20ft/6m)
• ​​Custom graduations​​ (special scales available)

​​Why Choose Our Measuring Telescopic Rod:​​

• Manufactured to IEEE 516 standards
• Used by major utility companies
• Annual dielectric testing recommended
• 1-year warranty against material defects
• Field-tested by electrical professionals
