Powered Winch Belt Drive Heavy-Duty 8T Capacity For Industrial Construction Use​
Powered Winch Belt Drive Heavy-Duty 8T Capacity For Industrial Construction Use​
Powered Winch Belt Drive Heavy-Duty 8T Capacity For Industrial Construction Use​
Powered Winch Belt Drive Heavy-Duty 8T Capacity For Industrial Construction Use​
Powered Winch Belt Drive Heavy-Duty 8T Capacity For Industrial Construction Use​
Powered Winch Belt Drive Heavy-Duty 8T Capacity For Industrial Construction Use​
Powered Winch Belt Drive Heavy-Duty 8T Capacity For Industrial Construction Use​
Powered Winch Belt Drive Heavy-Duty 8T Capacity For Industrial Construction Use​
Specifications
Brand Name :
Suntech
Model Number :
JJQ
Certification :
ISO
Place of Origin :
Ningbo
MOQ :
1 PCS
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
800 PCS/Month
Delivery Time :
5-8days
Packaging Details :
Plywood Case
Name :
Powered Winch(Belt drive)
Item No. :
09121-09125A
Model :
JJQ-30-JJQ-80
Rotation direction :
Corotation/reversal
Rotational speed :
5-19RPM
Tractive force :
3-8T
Power :
4.04-9.6KW
Weight :
82-230KG
Description

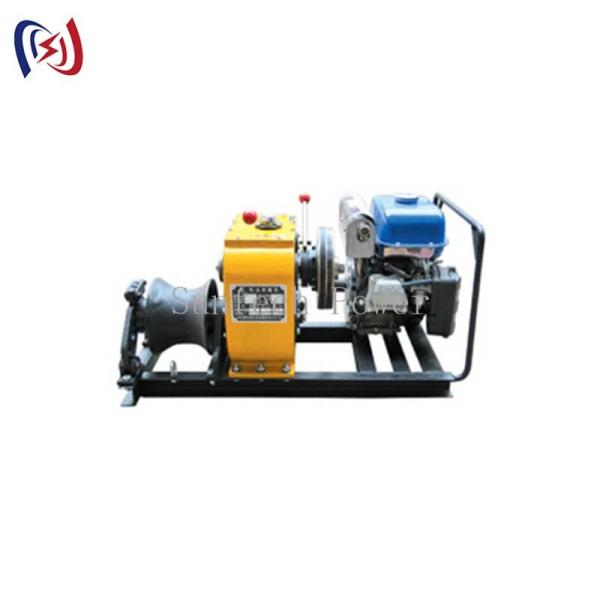

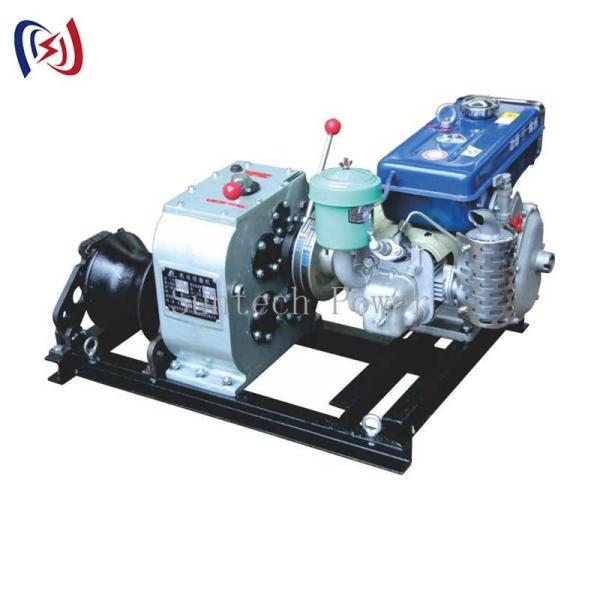

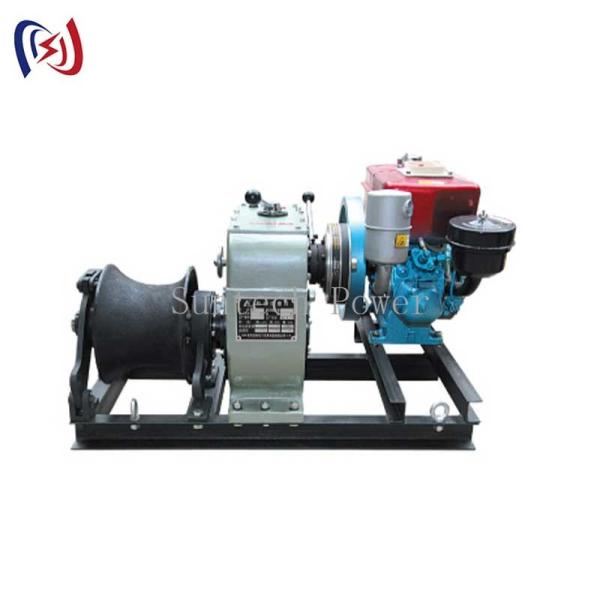

Powered Winch (Belt Drive) - Heavy-Duty 8T Capacity for Industrial & Construction Use​


The ​​Powered Winch (Belt Drive)​​ is a ​​high-performance lifting and pulling system​​ designed for ​​demanding industrial, construction, and recovery applications​​. Featuring a ​​heavy-duty belt drive mechanism​​, this winch delivers ​​smoother operation and 30% more power​​ than traditional gear drive models, with a ​​5000lb (2268kg) load capacity​​. The ​​12V/24V electric motor​​ provides reliable performance in all conditions, while the ​​automatic brake system​​ ensures safe load holding.


​​Key Features:​​
✔ ​​Advanced Belt Drive System​​ - Reduced noise and vibration for smoother operation
✔ ​​Dual-Power Options​​ - Compatible with both 12V and 24V power systems
✔ ​​Automatic Braking​​ - Holds loads securely without manual intervention
✔ ​​Thermal Protection​​ - Prevents motor burnout during extended use
✔ ​​Weather-Resistant Design​​ - IP65-rated enclosure protects against dust and water


​​Performance Benefits:​​

  • ​​30% faster line speed​​ compared to gear drive winches
  • ​​10,000+ operating cycles​​ before first maintenance required
  • ​​5000lb pulling capacity​​ for heavy-duty applications
  • ​​50% quieter operation​​ than standard winches


​​Technical Specifications:​​

  • ​​Model:​​ JJQ-30
  • ​​Load Capacity:​​ 8T
  • ​​Motor Power:​​ 4-9KW
  • ​​Compliance:​​ ISO 9001, CE, ANSI B30.7
  • ​​Warranty:​​ 1 years


​​Ideal Applications:​​

  • Construction site material handling
  • Off-road vehicle recovery
  • Marine and boat launching
  • Industrial maintenance and repair

Item number

Model


Rotation

direction

 Gear


rotational

speed

()

Traction

speed

(m/min)

Tractive

force

(T)

Power

(KW)

Outline

size

(mm)

Weight

(kg)
09121

JJQ-3Q

6HP

Gasoline

engine


corotation

Ⅰ

Slow

9.0

 4.0 3.0 4.04 840x450x500 82

Ⅱ

Fast

 16.0 6.6 1.8 780x450x500 85


reversal

Reverse

 7.5 3.3

No lifting
09121A

JJC-30

170F

Diesel

engine


corotation

Ⅰ

Slow

11.5

 5.0 3.0 2.94 840x600x500 108

Ⅱ

Fast

 21.0 9.0 1.8

reversal

Reverse

 10.0 4.5

No lifting
09121B

JJD-30

3KW

Electromotor

corotation

Ⅰ

Slow

8.5

 4.0 3.0 3.00 770x600x460 108

Ⅱ

Fast

 10.5 6.5 1.8

reversal

Reverse

 7.0 3.0

No lifting
09123

JJQ-50

9HP

Gasoline

engine

corotation

Ⅰ

Slow

6.5

 4.0 5.0 6.61 1000x550x520 135

Ⅱ

Fast

 16.0 9.0 2.2

reversal

Reverse

 7.0 4.0

No lifting
09123A

JJC-50

6.6HP

Diesel

engine

corotation

Ⅰ

Slow

8.0

 4.5 5.0 4.41 1000x750x600 168

Ⅱ

Fast

 19.0 11.0 2.3

reversal

Reverse

 10.0 5.5

No lifting
09123B

JJD-50

4KW

Electromotor

corotation

Ⅰ

Slow

5.5

 3.5 5.0 4.00 1000x850x520 160

Ⅱ

Fast

 14.0 8.0 3.0

reversal

Reverse

 7.0 4.0


No lifting
09125

JJQ-80

13HP

Gasoline

engine

corotation

Ⅰ

Slow

 5 3 8 9.60 1000x550x520 168

Ⅱ

Fast

 9 5 4.5

reversal


Reverse

 5 3


No lifting
09125A

JJC-80

10.5HP

Diesel

engine

corotation

Ⅰ

Slow

 7 4 8

7.86		 1000x750x630 230

Ⅱ

Fast

13

 7.5 4

reversal


Reverse

 6.5 3.7


No liftin
