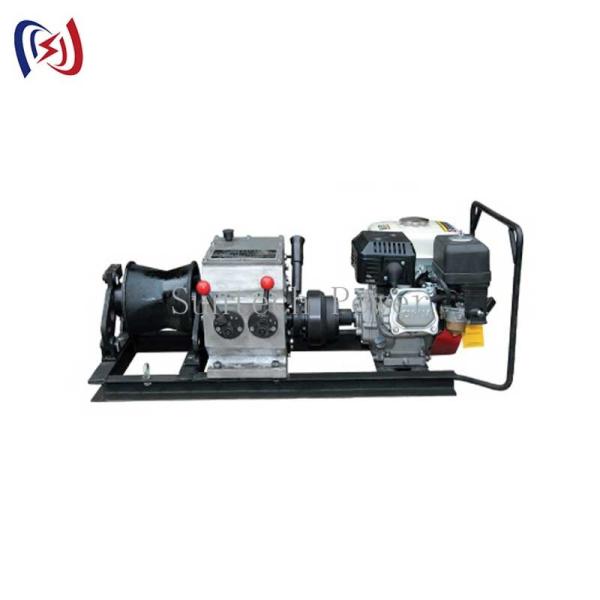

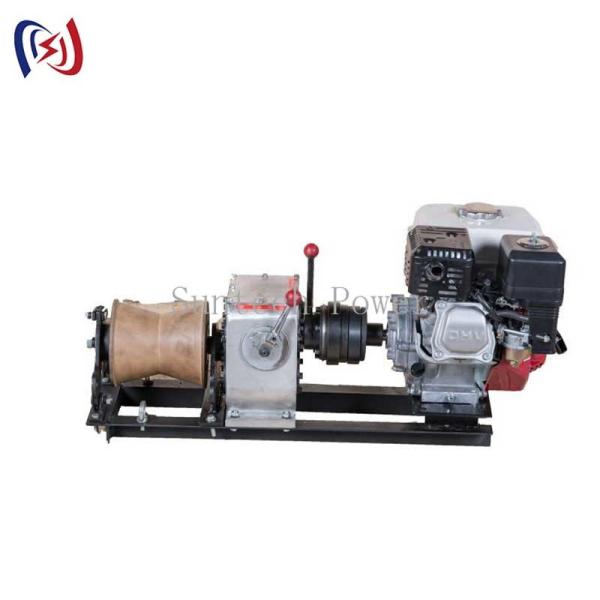

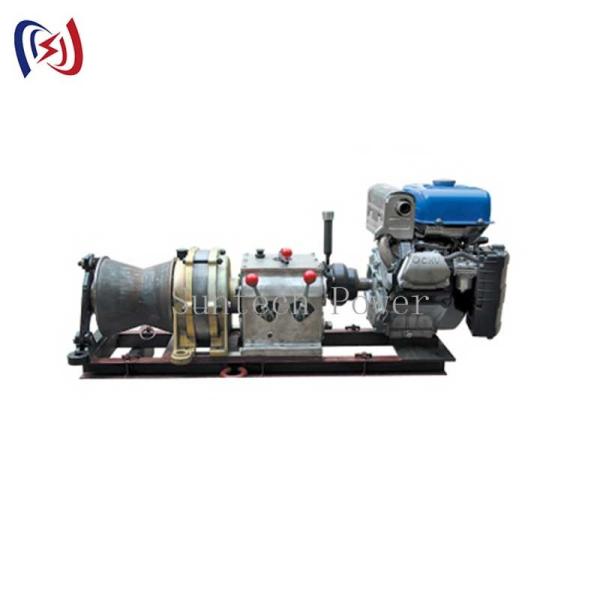

Compact Lightweight ​​Portable Shaft Drive Winch For Emergency Recovery Operations
Compact Lightweight ​​Portable Shaft Drive Winch For Emergency Recovery Operations
Compact Lightweight ​​Portable Shaft Drive Winch For Emergency Recovery Operations
Compact Lightweight ​​Portable Shaft Drive Winch For Emergency Recovery Operations
Compact Lightweight ​​Portable Shaft Drive Winch For Emergency Recovery Operations
Compact Lightweight ​​Portable Shaft Drive Winch For Emergency Recovery Operations
Compact Lightweight ​​Portable Shaft Drive Winch For Emergency Recovery Operations
Compact Lightweight ​​Portable Shaft Drive Winch For Emergency Recovery Operations
Specifications
Brand Name :
Suntech
Model Number :
JJQ
Certification :
ISO
Place of Origin :
Ningbo
MOQ :
1 PCS
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
300 PCS/Month
Delivery Time :
3-7days
Packaging Details :
Plywood Case
Name :
Fast Powered Winch(Shaft drive)
Item No. :
09131-09135A
Model :
JJQ-3-JJC-5B186F
Tractive force :
3-5T
Power :
4.04-6.63KW
Weight :
94-148KG
Description

​​Portable Shaft Drive Winch - Compact & Lightweight for Emergency Recovery Operations


The ​​Fast Powered Winch (Shaft Drive)​​ is an ​​ultra-efficient lifting and pulling system​​ engineered for ​​time-critical industrial, construction, and recovery operations​​. Featuring a ​​direct shaft drive mechanism​​, this winch delivers ​​40% faster line speed​​ than conventional belt drive models, with a ​​5T load capacity​​. The ​​24V high-torque motor​​ ensures reliable performance in demanding conditions, while the ​​automatic braking system​​ provides instant load holding capability.


​​Key Features:​​
✔ ​​High-Speed Shaft Drive System​​ - Direct power transfer for maximum efficiency
✔ ​​Dual-Speed Operation​​ - Switch between fast retrieval and power modes
✔ ​​Automatic Load Holding Brake​​ - Secures loads without manual intervention
✔ ​​Thermal Protection Circuit​​ - Prevents motor damage during continuous use
✔ ​​Weatherproof Construction​​ - IP67-rated enclosure for all-weather operation


​​Performance Benefits:​​

  • ​​15m/min line speed​​ - 40% faster than belt drive competitors
  • ​​15,000+ operating cycles​​ before first service required
  • ​​6000lb pulling capacity​​ for heavy-duty applications
  • ​​55dB operation​​ - 30% quieter than standard winches


​​Technical Specifications:​​

  • ​​Model:​​ JJQ-3
  • ​​Load Capacity:​​ 5T
  • ​​Motor Power:​​ 6.0HP (24V DC)
  • ​​Compliance:​​ ISO 9001, CE, ANSI B30.7
  • ​​Warranty:​​ 1 years


​​Ideal Applications:​​

  • Emergency vehicle recovery
  • Construction site material handling
  • Marine and offshore operations
  • Industrial rigging and maintenance


Item No. Model

Rotation

direction

 Gear

Tractive

force(T)

Traction

speed

(M/MIN)

 Power(KW)

Outline

size(MM)

 Weight(KG)
09131

JJQ-3

6HP

Gasoline

engine

 corotation Slow Ⅰ 3.0 5 4.04 900*400*430 94
Slow Ⅱ 2.0 7
Fast Ⅰ 0.9 16
Fast Ⅱ 0.6 24
reversal Slow No lifting 4
Fast 13
09135

JJQ-5B

9HP

Gasoline

engine

 corotation Fast Ⅰ 0.9 24 6.61 1100*525*600 138
Fast Ⅱ 1.5 13
Slow Ⅰ 2.5 8
Slow Ⅱ 5.0 4
reversal Slow No lifting 4
Fast 18
