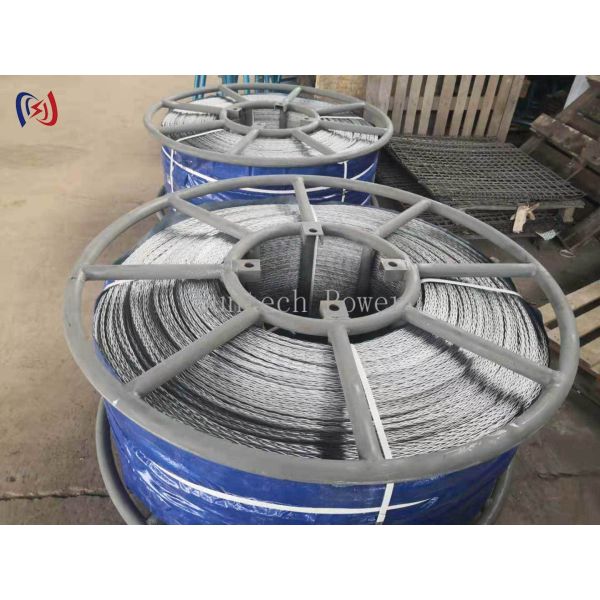

Heavy Duty 12 Strand/18 Strand Anti-Twisting Braided Steel Rope with 9-42mm Diameter and 54-817KN Breaking Force for Crane and Rigging
Heavy Duty 12 Strand/18 Strand Anti-Twisting Braided Steel Rope with 9-42mm Diameter and 54-817KN Breaking Force for Crane and Rigging
Heavy Duty 12 Strand/18 Strand Anti-Twisting Braided Steel Rope with 9-42mm Diameter and 54-817KN Breaking Force for Crane and Rigging
Heavy Duty 12 Strand/18 Strand Anti-Twisting Braided Steel Rope with 9-42mm Diameter and 54-817KN Breaking Force for Crane and Rigging
Heavy Duty 12 Strand/18 Strand Anti-Twisting Braided Steel Rope with 9-42mm Diameter and 54-817KN Breaking Force for Crane and Rigging
Heavy Duty 12 Strand/18 Strand Anti-Twisting Braided Steel Rope with 9-42mm Diameter and 54-817KN Breaking Force for Crane and Rigging
Specifications
Brand Name :
Suntech
Model Number :
12 -18 Strand
Certification :
ISO
Place of Origin :
Ningbo
MOQ :
100 Meter
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
300000 Meter/ Month
Delivery Time :
3-7days
Packaging Details :
Plywood Case
Name :
Anti-Twisting Braided Steel Rope
Item No. :
18117-18156
Structure :
12 Strand/18 Strand
Diameter :
9-42mm
Breaking force :
>54->817KN
Weight :
0.3-4.08KG/M
Description

Heavy Duty Anti Twisting Braided Steel Rope for Crane and Rigging Applications in Power Construction


Item number Structure Diameter Breaking Force Weight
18117 12 Strand 9 ≥54 0.3
18118 11 ≥81 0.45
18119 13 ≥115 0.58
18120 15 ≥157 0.82
18121 18 ≥205 1.03
18122 20 ≥260 1.33
18123 23 ≥320 1.63
18124 25 ≥387 2.03
18125 27 ≥461 2.37
18126 28 ≥520 2.6
18127 30 ≥560 3.12
18140 21 ≥173 0.87
18141 18 Strand 24 ≥236 1.24
18151 27 ≥309 1.55
18152 30 ≥389 1.99
18153 33 ≥481 2.45
18154 36 ≥581 3.05
18155 39 ≥692 3.56
18156 42 ≥817 4.22


Anti Twisting Braided Steel Rope represents a significant advancement in lifting and rigging technology specifically designed for the demanding requirements of the power construction industry. Unlike standard twisted wire ropes that tend to rotate under load, this specially engineered rope features a unique braided construction that effectively counteracts rotational forces. This design ensures exceptional stability when handling suspended loads, making it the ideal choice for precision lifting operations where load control is paramount. In applications such as hoisting electrical transformers, positioning transmission tower sections, or handling sensitive equipment in substations, the anti rotation characteristic prevents dangerous spinning and provides predictable, controlled movement. This rope combines high tensile strength with operational safety, offering professional crews a reliable solution for their most critical lifting challenges.
  • Superior Anti Rotation Performance:​ The core benefit of this rope is its ability to resist twisting and spinning when supporting suspended loads. The braided construction balances internal forces, ensuring the rope remains stable and the load does not rotate uncontrollably. This characteristic is crucial when precision positioning of expensive and sensitive electrical equipment is required, as it eliminates the risk of damaging equipment or causing hazardous situations due to unwanted rotation.
  • Enhanced Lifting Safety and Control:​ By minimizing load rotation, this rope significantly enhances safety during lifting operations. Crews can maintain better control over the load's movement and orientation, reducing the risk of accidents, collisions, or sudden shifts in weight distribution. This increased control is essential when working in confined spaces or when lifting components over live electrical equipment.
  • Exceptional Flexibility and Handling Ease:​ Despite its high strength, the braided design offers excellent flexibility, making the rope easier to handle, coil, and uncoil compared to stiffer traditional ropes. This flexibility also allows it to bend more readily over sheaves and drums with a smaller bend radius, reducing wear and extending the service life of both the rope and the lifting equipment.
  • High Tensile Strength and Durability:​ Manufactured from high grade steel wires, this rope provides immense breaking strength to handle the heaviest loads encountered in power construction, from large transformers to tower sections. The robust construction is resistant to abrasion, crushing, and other forms of mechanical damage, ensuring reliable performance under tough working conditions.
  • Reduced Wear and Extended Service Life:​ The anti rotation property not only improves safety but also contributes to the rope's longevity. By preventing spinning, it minimizes internal friction between wire strands and external abrasion against guides or other surfaces. This reduction in wear and tear leads to a longer operational life and lower long term replacement costs.
  • ​ suitability for Demanding Environments:​ Many of these ropes are available with protective coatings, such as zinc galvanization, to provide excellent corrosion resistance. This makes them suitable for use in harsh outdoor environments, coastal areas, or industrial settings where exposure to moisture, salt, or chemicals is a concern, ensuring reliability over time.
  • Versatility Across Power Industry Applications:​ This rope is incredibly versatile and is suitable for a wide range of tasks. It is ideal for use in assembly and maintenance of transmission towers, installation of substation equipment, stringing heavy conductors, and any lifting task where load stability cannot be compromised.
  • Improved Workflow Efficiency:​ The stability and control offered by the rope allow lifting operations to be performed more smoothly and efficiently. Crews can position loads accurately on the first attempt, reducing the time spent on adjustments and maneuvers. This efficiency leads to faster project completion times and reduced labor costs.
  • Compliance with Industry Standards:​ High quality anti twisting braided steel ropes are manufactured to meet or exceed stringent international safety and quality standards for lifting equipment. This provides assurance to contractors and safety officers that the equipment is fit for purpose and helps in maintaining compliance with workplace safety regulations.
  • A Wise Investment for Professional Operations:​ While the initial investment may be higher than standard rope, the benefits in enhanced safety, reduced equipment damage, longer service life, and improved operational efficiency make it a cost effective choice for any serious power industry contractor. It is an essential tool for mitigating risk and ensuring the success of critical lifts.
Investing in Anti Twisting Braided Steel Rope is investing in the safety of your personnel, the protection of your assets, and the overall professionalism of your lifting operations.
