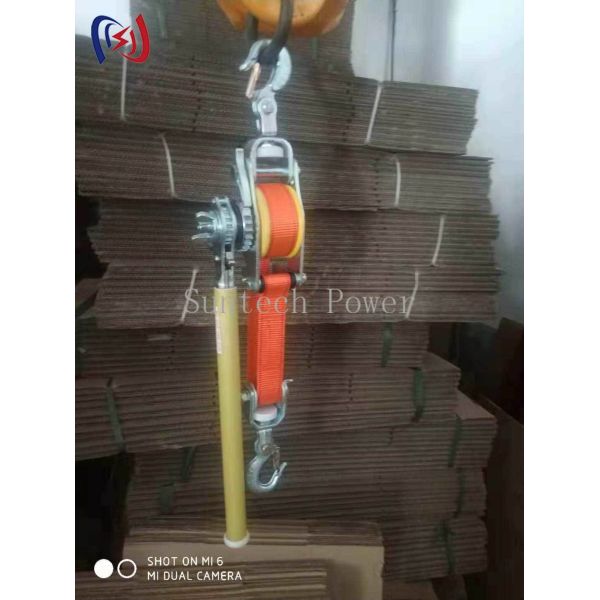

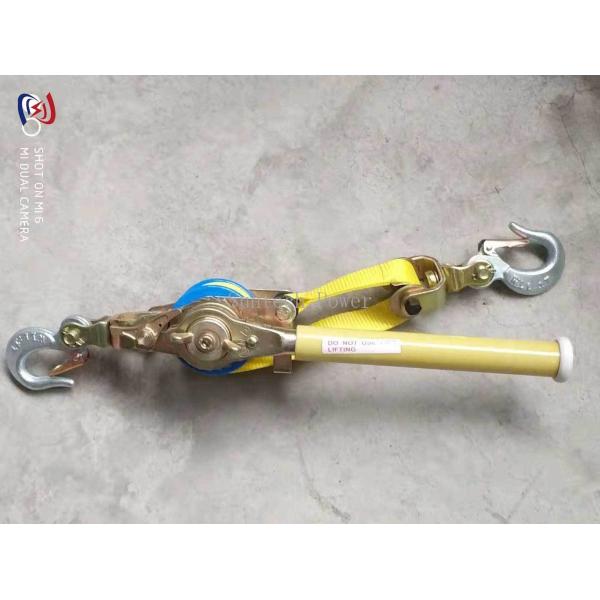

Tool-free Insulated Tightener 10-20KN Webbing Strap Conductor Stringing Tools
Tool-free Insulated Tightener 10-20KN Webbing Strap Conductor Stringing Tools
Tool-free Insulated Tightener 10-20KN Webbing Strap Conductor Stringing Tools
Tool-free Insulated Tightener 10-20KN Webbing Strap Conductor Stringing Tools
Tool-free Insulated Tightener 10-20KN Webbing Strap Conductor Stringing Tools
Tool-free Insulated Tightener 10-20KN Webbing Strap Conductor Stringing Tools
Tool-free Insulated Tightener 10-20KN Webbing Strap Conductor Stringing Tools
Tool-free Insulated Tightener 10-20KN Webbing Strap Conductor Stringing Tools
Tool-free Insulated Tightener 10-20KN Webbing Strap Conductor Stringing Tools
Tool-free Insulated Tightener 10-20KN Webbing Strap Conductor Stringing Tools
Specifications
Max Length :
1210-1400mm
Item No. :
14105 / 14106 / 14107
Min Length :
410-480mm
Weight :
3.3-4.5kg
Certification :
ISO 9001
Model :
SJJY-1 / SJJY-1.5 / SJJY-2
Webbing :
5x2300mm / 6x2300mm
Brand Name :
Suntech
Place of Origin :
Ningbo, China
Price :
Get the latest price
Payment Terms :
L/C,T/T
Name :
Insulated Tightener
Supply Ability :
3000 Pieces per Month
Packaging Details :
Plywood case with steel-banded reinforcement for export
Delivery Time :
3-5 working days for stock, 15-25 days for bulk orders
Rated Lifting / Pulling :
10/5 - 20/10 KN
Model Number :
SJJY-1
MOQ :
1 Piece
Description
Insulated Tightener for Live Line Tensioning and Electrical Maintenance Work
The insulated tightener is a live line tool for taking up tension on a conductor or strap during electrical maintenance. It uses a non-conductive body and an insulated webbing strap so the working parts stay clear of the operator, and it adjusts without extra tools. Three models cover rated lifting and pulling of 10KN to 20KN, with a working length from 410mm to 1400mm.
Design and Operation
  • Insulated, non-conductive body for live line work, used within your local voltage rating and work procedure.
  • Insulated webbing strap (5-6mm x 2300mm) for conductor and strap tensioning.
  • Positive locking mechanism to hold tension once it is set.
  • Non-marring contact surfaces to protect the conductor during use.
  • Tool-free adjustment for quick set-up and release.
  • Corrosion-resistant components for repeated field use.
Technical Specifications
Item No. Model Rated Lifting / Pulling (KN) Webbing Thickness x Length (mm) Min Length (mm) Max Length (mm) Weight (kg)
14105 SJJY-1 10 / 5 5 x 2300 410 1210 3.3
14106 SJJY-1.5 15 / 7.5 6 x 2300 480 1400 4.2
14107 SJJY-2 20 / 10 6 x 2300 480 1400 4.5
Quality Control and Testing
Bodies and insulated parts are assembled and checked for fit, lock operation and insulation integrity before packing. Webbing is inspected for thickness and stitching, and each batch is checked against its stated rating. Products are manufactured under ISO 9001 certified quality management, and an inspection record is supplied with every shipment.
Typical Applications
  • Live transmission line maintenance
  • Substation conductor tensioning
  • Temporary cable installations
  • Emergency repair work
Handling and Care
  • Before use: inspect for cracks or damage and check the webbing.
  • In use: keep a steady tension and watch the cable position.
  • After use: clean after exposure to contaminants and store in a dry case.
Factory Support and Buyer Assurance
  • Manufacturer-direct pricing with no trading-layer mark-up
  • OEM and ODM available with custom configurations and branding
  • Model selection support (SJJY-1 to SJJY-2) based on load and length
  • Spare webbing and parts available
  • 12-month limited warranty

Tool-free Insulated Tightener 10-20KN Webbing Strap Conductor Stringing Tools

Tell us your working voltage, required pull and length, and our engineers will recommend the right SJJY model and confirm a factory-direct quotation within one working day.
