Aluminium Dual Hook Turnbuckle 10-50KN Anodized Conductor Stringing Tools
Aluminium Dual Hook Turnbuckle 10-50KN Anodized Conductor Stringing Tools
Aluminium Dual Hook Turnbuckle 10-50KN Anodized Conductor Stringing Tools
Aluminium Dual Hook Turnbuckle 10-50KN Anodized Conductor Stringing Tools
Aluminium Dual Hook Turnbuckle 10-50KN Anodized Conductor Stringing Tools
Aluminium Dual Hook Turnbuckle 10-50KN Anodized Conductor Stringing Tools
Aluminium Dual Hook Turnbuckle 10-50KN Anodized Conductor Stringing Tools
Aluminium Dual Hook Turnbuckle 10-50KN Anodized Conductor Stringing Tools
Aluminium Dual Hook Turnbuckle 10-50KN Anodized Conductor Stringing Tools
Aluminium Dual Hook Turnbuckle 10-50KN Anodized Conductor Stringing Tools
Aluminium Dual Hook Turnbuckle 10-50KN Anodized Conductor Stringing Tools
Aluminium Dual Hook Turnbuckle 10-50KN Anodized Conductor Stringing Tools
Specifications
Model :
SJSL-1 / SJSL-2 / SJSL-3 / SJSL-5
Certification :
ISO 9001
Max Centre Distance :
768-1500mm
Payment Terms :
L/C,T/T
Name :
Dual-Hook Aluminium Alloy Turnbuckle
MOQ :
1 Piece
Weight :
2-6kg
Place of Origin :
Ningbo, China
Model Number :
SJSL-1
Adjustable Distance :
290-630mm
Delivery Time :
3-6 working days for stock, 15-25 days for bulk orders
Finish :
Anodized
Supply Ability :
4000 Pieces per Month
Item No. :
14121 / 14122 / 14123 / 14124
Packaging Details :
Plywood case with steel-banded reinforcement for export
Brand Name :
Suntech
Price :
Get the latest price
Rated Load :
10-50KN
Description

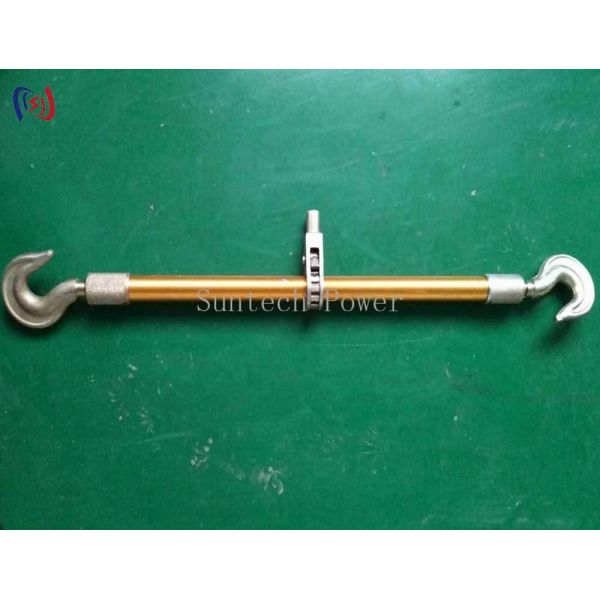

Dual Hook Aluminium Turnbuckle for Lightweight Cable Tensioning
The dual hook aluminium turnbuckle is a lightweight tensioning device for cable stringing and temporary stays. An aluminium alloy body and hook ends cut the weight a crew has to carry and handle compared with a steel turnbuckle of the same rating, while still taking up and releasing tension through a smooth thread. Four models cover rated loads from 10KN to 50KN, with maximum centre distances from 768mm to 1500mm.
Design and Operation
  • Dual hook ends: positive locking hooks reduce the risk of accidental disengagement.
  • Lightweight aluminium alloy body: easier to carry and handle on structures and in elevated work.
  • Anodized finish: corrosion protection for outdoor and damp exposure.
  • Marked load ratings: the rated load is stamped for quick identification on site.
  • Tool-free adjustment: turn the body by hand to change the length.
  • Smooth thread: reliable take-up and release under load.
Technical Specifications
Item No. Model Rated Load (KN) Max Centre Distance (mm) Adjustable Distance (mm) Weight (kg)
14121 SJSL-1 10 768 290 2
14122 SJSL-2 20 936 350 2.5
14123 SJSL-3 30 1296 530 4.5
14124 SJSL-5 50 1500 630 6
Quality Control and Testing
Bodies are formed and threaded from aluminium alloy, anodized, then checked for thread fit and hook operation before packing. Each batch is inspected against its stated rated load and marked before shipment. Products are manufactured under ISO 9001 certified quality management, and an inspection record is supplied with every shipment.
Typical Applications
  • Overhead transmission line tensioning
  • Substation equipment securing
  • Temporary cable installations and stays
  • Emergency repair work
Factory Support and Buyer Assurance
  • Manufacturer-direct pricing with no trading-layer mark-up
  • OEM and ODM available with custom sizes, finishes and branding
  • Model selection support (SJSL-1 to SJSL-5) based on load and reach
  • Matching rigging hardware available
  • 12-month limited warranty

Aluminium Dual Hook Turnbuckle 10-50KN Anodized Conductor Stringing Tools

Tell us your pulling load, required reach and end fitting type, and our engineers will confirm the right SJSL model and a factory-direct quotation within one working day.
