Galvanized Cable Reel Stand 50-300KN Load 2400-5000mm Conductor Drum Stand
Galvanized Cable Reel Stand 50-300KN Load 2400-5000mm Conductor Drum Stand
Galvanized Cable Reel Stand 50-300KN Load 2400-5000mm Conductor Drum Stand
Galvanized Cable Reel Stand 50-300KN Load 2400-5000mm Conductor Drum Stand
Galvanized Cable Reel Stand 50-300KN Load 2400-5000mm Conductor Drum Stand
Galvanized Cable Reel Stand 50-300KN Load 2400-5000mm Conductor Drum Stand
Galvanized Cable Reel Stand 50-300KN Load 2400-5000mm Conductor Drum Stand
Galvanized Cable Reel Stand 50-300KN Load 2400-5000mm Conductor Drum Stand
Galvanized Cable Reel Stand 50-300KN Load 2400-5000mm Conductor Drum Stand
Galvanized Cable Reel Stand 50-300KN Load 2400-5000mm Conductor Drum Stand
Specifications
Certification :
ISO 9001
Delivery Time :
3-7 working days for stock, 15-25 days for bulk orders
Model :
SI-5 / SI-10 / SI-10A / SI-16 / SI-20 / SI-30
Model Number :
SI
Name :
Hydraulic Type Cable Reel Stand
Supply Ability :
3000 Pieces per Month
Applicable Cable Reel Width :
1600-3100mm
Place of Origin :
Ningbo, China
Weight :
172-600kg
Brand Name :
Suntech
Core Hole Diameter :
76-200mm
Frame Material :
High-tensile steel
Payment Terms :
L/C,T/T
Rated Load :
50-300KN
MOQ :
1 Piece
Price :
Negotiable
Packaging Details :
Plywood case with steel-banded reinforcement for export
Applicable Cable Reel Diameter :
2400-5000mm
Description

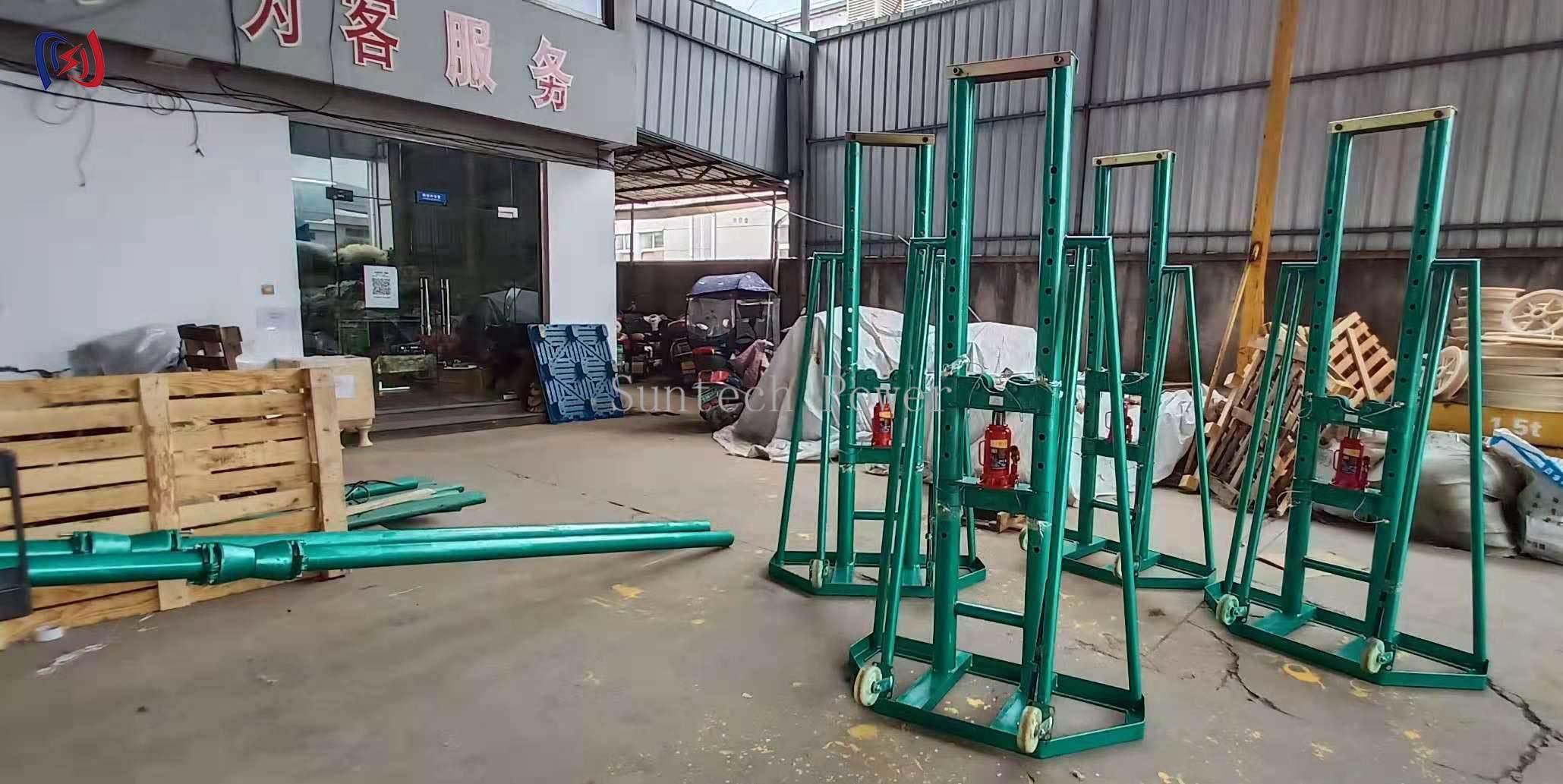

Hydraulic Type Cable Reel Stand for Safe and Efficient Handling of Heavy Power Cable Drums
The Hydraulic Type Cable Reel Stand is a purpose-built material-handling solution that raises heavy cable and conductor drums from ground level to a secure working height using a manual hydraulic pump. Mounted on a reinforced high-tensile steel chassis and offered in six load ratings from 50KN to 300KN, it lets a single operator position, lift and pay out drums up to 5000mm in diameter that would otherwise demand a crane and a full crew.
Engineered Around Real Cable-Stringing Work
  • Hydraulic lift system: a robust hand pump and cylinder raise the drum off the ground with minimal effort, removing the manual lifting and rolling that causes most back and crush injuries on site.
  • Adjustable arms accommodate drum core holes from 76mm to 200mm and lock the drum securely throughout payout.
  • Integrated braking applies precise back-tension so cable feeds evenly without slack, kinks or overrun.
  • Heavy-duty pneumatic wheels let one person move a loaded stand across uneven surfaces and align it with the pull direction.
  • Reinforced frame: welding is doubled at every stress point and the wide, low cradle keeps the unit stable under full rated load.
Technical Specifications
Item No. Model Rated Load (KN) Reel Diameter (mm) Reel Width (mm) Core Hole (mm) Weight (kg)
21346 SI-5 50 Max. 2400 Max. 1600 76-103 172
21347 SI-10 100 Max. 2700 Max. 1700 120-135 230
21348 SI-10A 100 Max. 3400 Max. 1900 120-135 230
21349 SI-16 160 Max. 4000 Max. 2500 125-200 325
21343 SI-20 200 Max. 4000 Max. 2500 135-160 450
21344 SI-30 300 Max. 5000 Max. 3100 160-200 600
Quality Control and Testing
Frame welding follows a documented procedure, and every chassis is checked for squareness on a jig before painting. Hydraulic cylinders and pumps are pressure-tested, and each finished unit is function-tested through a complete lift cycle before packing. Manufacturing runs under ISO 9001 certified quality management, and a factory inspection record is supplied with each shipment.
Typical Applications
  • Overhead transmission and distribution line stringing
  • Substation and switchyard cable installation
  • Underground and duct cable pulling projects
  • Railway catenary and telecom backbone works
  • Industrial plant and wind-farm power cabling
Factory Support and Buyer Assurance
  • Manufacturer-direct pricing with no trading-layer mark-up
  • OEM and ODM available with custom load ratings, colours and branding
  • Technical drawings and load calculations supplied before order
  • Spare hydraulic pumps, arms and wheels held in stock
  • 12-month limited warranty on hydraulic components

Galvanized Cable Reel Stand 50-300KN Load 2400-5000mm Conductor Drum Stand

Tell us your drum diameter, width, core hole and required load rating, and our engineers will recommend the right model and confirm a factory-direct quotation within one working day.
