Specifications
Model :
SIPZ-5H / SIPZ-7H
Model Number :
SIPZ-5H
Stand Weight :
270-350kg
Applicable Reel Diameter :
1250-2500mm
Max Speed :
45rpm
Name :
Hydraulic Conductor Reel Stands
Axle Hole Diameter :
80-125mm
Brand Name :
Sunatech
Supply Ability :
1000 Pieces per Month
Max Coil Width :
1400mm
Max Working Torque :
1200-2000 N.m
Price :
Negotiable
Item No. :
15151 / 15152
Payment Terms :
L/C,T/T
Place of Origin :
Ningbo, China
Delivery Time :
3-7 working days for stock, 15-25 days for bulk orders
Packaging Details :
Plywood case with steel-banded reinforcement for export
Max Reel Weight :
5000-7000kg
Certification :
ISO 9001
MOQ :
1 Piece
Description

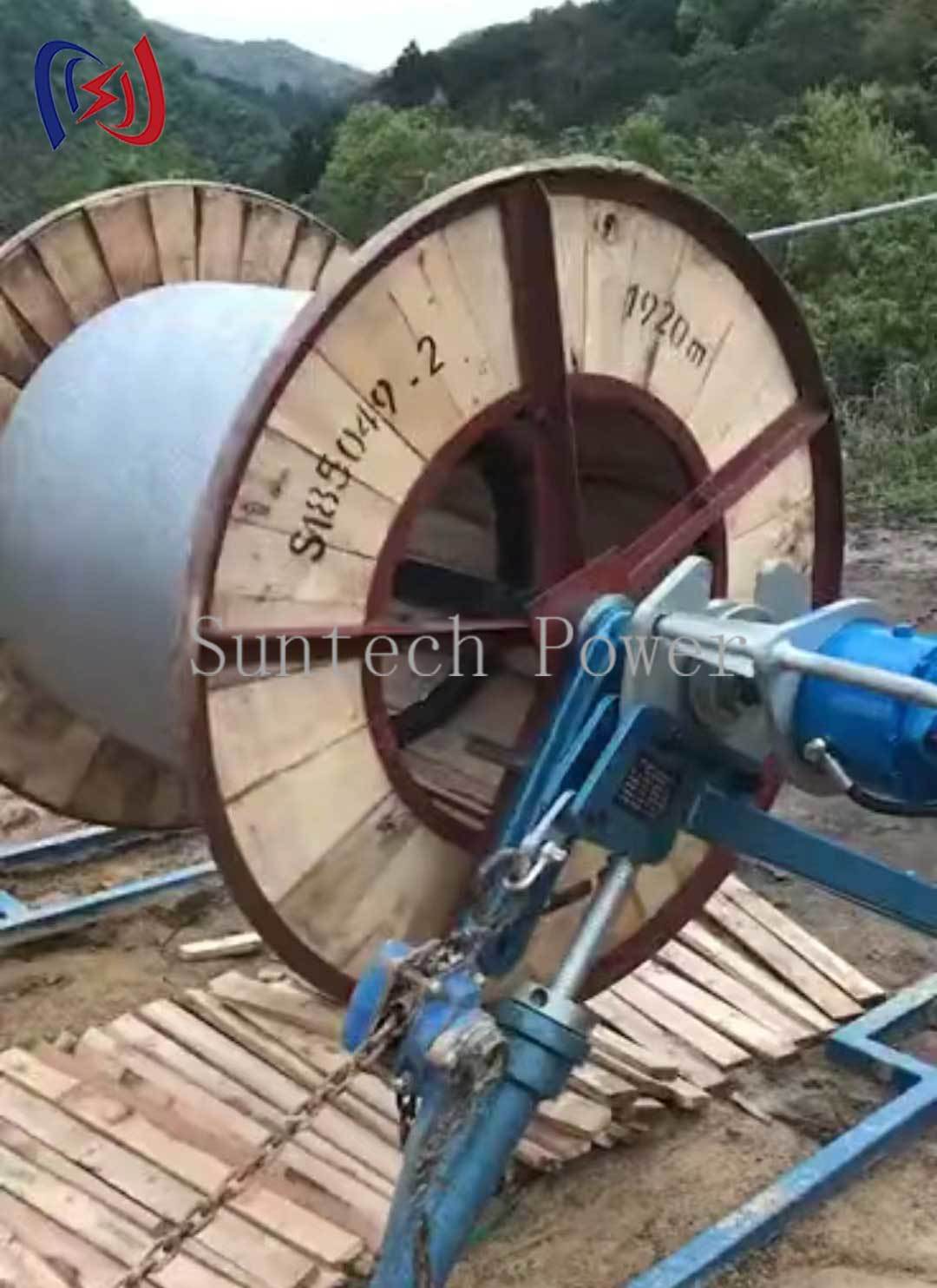

Hydraulic Conductor Reel Stand for Controlled Pay Out of Large Overhead Conductors
The Hydraulic Conductor Reel Stand is built for one of the toughest jobs on an overhead line project: lifting and paying out large, heavy conductor reels without exposing the crew to unnecessary risk. A self-contained hydraulic system raises reels weighing up to 7000kg to the correct working height, while sealed high-capacity bearings let a single operator rotate the drum smoothly at up to 45rpm. Two models, SIPZ-5H and SIPZ-7H, cover reel diameters from 1250mm to 2500mm.
Built for Real Stringing Crews
  • Hydraulic lifting: a hand-operated pump raises multi-ton reels to working height, replacing cranes and manual lifting that cause most back and crush injuries on site.
  • Stable wide base: a heavy-gauge steel frame and reinforced footprint resist tipping under full rated load and side pull.
  • Controlled pay out: high-capacity bearings and 1200-2000 N.m working torque feed conductor at a steady 45rpm without jerking, kinking or overrun.
  • Height adjustment: tune reel height to align with stringing blocks and the tensioner, keeping the conductor path straight and friction low.
  • Conductor protection: keeps reels off the ground and clear of grit, preserving the conductor surface and its mechanical integrity.
  • Low maintenance: corrosion-resistant finish and sealed hydraulic components suit harsh outdoor utility sites.
Technical Specifications
Item No. Model Applicable Reel Diameter (mm) Max Coil Width (mm) Axle Hole (mm) Max Weight (kg) Max Working Torque (N.m) Max Speed (rpm) Stand Weight (kg)
15151 SIPZ-5H 1250-2240 1400 80-125 5000 1200 45 270
15152 SIPZ-7H 1250-2500 1400 80-125 7000 2000 45 350
Quality Control and Testing
Every frame is fabricated from high-strength steel, checked for squareness on a jig, and finished with a corrosion-resistant coating. Hydraulic cylinders and pumps are pressure-tested, and each completed stand is run through a full lift-and-rotate cycle before packing. Units are produced under ISO 9001 certified quality management, and an inspection record is supplied with every shipment.
Typical Applications
  • Overhead transmission line conductor stringing
  • Distribution network and substation cable work
  • Tension stringing with pullers and tensioners
  • Conductor re-reeling and storage yards
  • Utility maintenance and emergency repair
Factory Support and Buyer Assurance
  • Manufacturer-direct pricing with no trading-layer mark-up
  • OEM and ODM available with custom capacities, colours and branding
  • Model selection support (SIPZ-5H vs SIPZ-7H) based on your reel size and weight
  • Spare hydraulic pumps, axles and bearings held in stock
  • 12-month limited warranty on hydraulic components

Overhead Line Conductor Reel Stand 5000-7000kg 45rpm Conductor Drum Stand

Share your maximum reel weight, reel diameter, coil width and axle hole, and our engineers will confirm the right SIPZ model and a factory-direct quotation within one working day.
