Specifications
Name :
Rope Reel And Stand
Packaging Details :
Plywood case with steel-banded reinforcement for export
MOQ :
1 Piece
Warranty :
1 year
Supply Ability :
9000 Pieces per Month
Reel Stand Dimension :
480x220x340 to 1200x400x640mm
Payment Terms :
L/C,T/T
Stand Weight :
12-39kg
Certification :
ISO 9001, CE
Model :
SE-1 / SE-2 / SE-3 / SE-4 / SE-5 / SE-6
Brand Name :
Suntech
Delivery Time :
3-5 working days for stock, 15-25 days for bulk orders
Reel Weight :
13-59kg
Model Number :
SE
Frame Material :
Galvanized steel
Price :
Get the latest price
Place of Origin :
China
Item No. :
15111-15116 (reel) / 15101-15106 (stand)
Description

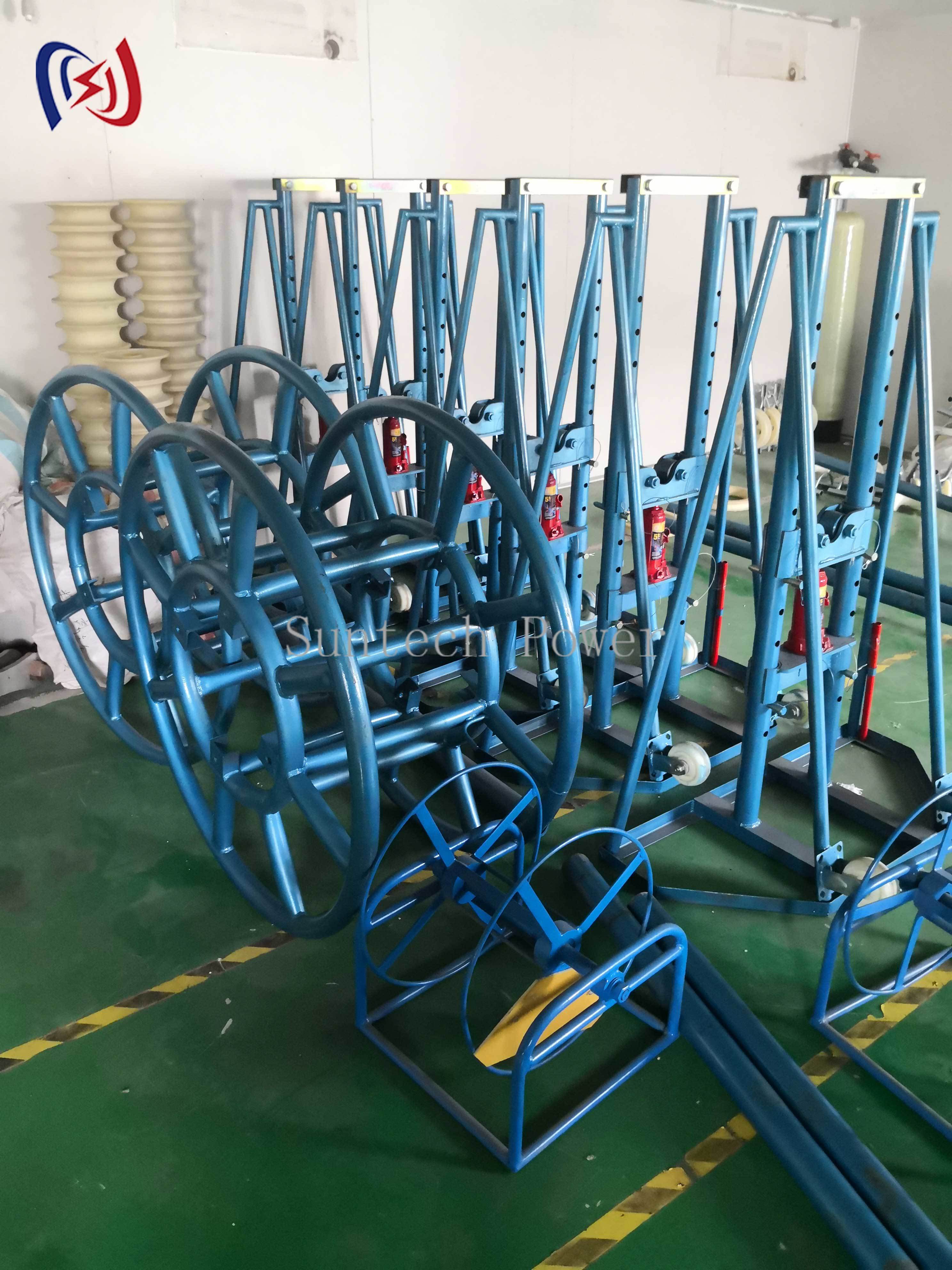

Rope Reel and Stand for Industrial Rope Storage and Controlled Deployment
The Rope Reel and Stand is a modular rope management system for workshops, yards and field stores. Each pair combines a welded steel stand with a matched driven reel so rope, wire rope and hybrid line feed out under control instead of being dragged across the floor. Six models cover reel sizes from 480mm to 1200mm, and because the base, column and reel mount separate, the unit can be moved, stored and reloaded without a crane.
Build and Operation
  • Matched reel and stand: supplied as a pair, so reel and stand dimensions are aligned for smooth rotation from the first use.
  • Heavy-duty steel frame: a welded base keeps the stand stable while the reel turns under load.
  • Sealed bearing rotation: the reel spins freely for even, low-effort payout and rewind.
  • Modular assembly: base, column and reel mount separate quickly for transport and compact storage.
  • Transport lock: drums are secured so the reel cannot spin loose while the unit is moved.
  • Multi-rope compatible: suits wire rope, nylon and polypropylene line.
Technical Specifications
Item No. (Reel) Item No. (Stand) Model Reel Stand Dimension (mm) Weight Reel (kg) Weight Stand (kg)
15111 15101 SE-1 480x220x340 13 12
15112 15102 SE-2 720x400x640 30 16
15113 15103 SE-3 850x400x640 40 16
15114 15104 SE-4 950x400x640 50 20
15115 15105 SE-5 1100x400x640 55 30
15116 15106 SE-6 1200x400x640 59 39
Quality Control and Testing
Frames are welded from steel sections, checked for squareness on a jig, and finished against corrosion before packing. Bearing rotation and drum-lock operation are verified during assembly, and each reel-and-stand pair is inspected before shipment. Production runs under ISO 9001 certified quality management, and an inspection record is supplied with every shipment.
Typical Applications
  • Dock line and mooring line management
  • Tower crane rigging and construction rope
  • Mining hoisting and ventilation ropes
  • Power line and telecom rope or cable pulling
  • Workshop and yard rope storage
Factory Support and Buyer Assurance
  • Manufacturer-direct pricing with no trading-layer mark-up
  • OEM and ODM available with custom reel sizes, colours and branding
  • Model selection support (SE-1 to SE-6) based on rope type and reel size
  • Spare bearings, brake parts and locking pins held in stock
  • 12-month limited warranty

Heavy Duty Galvanized Steel Rope Reel Stand Conductor Drum Stand Sealed Bearing

Tell us your rope type, diameter and required reel size, and our engineers will recommend the right SE model and confirm a factory-direct quotation within one working day.
