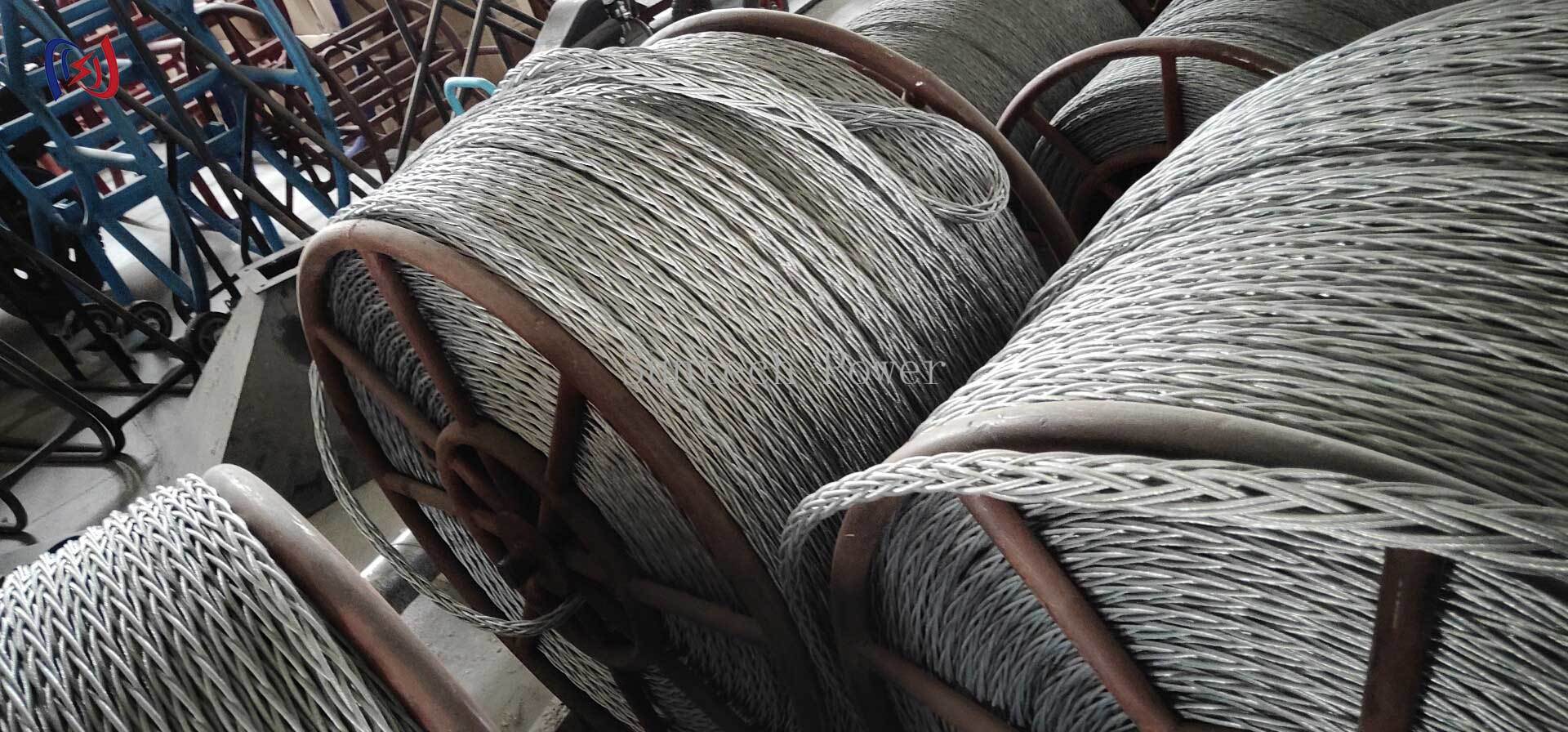

12 Strand Anti Twist Wire Rope 9-42mm 54-817KN Breaking Force Stable Lifting
12 Strand Anti Twist Wire Rope 9-42mm 54-817KN Breaking Force Stable Lifting
12 Strand Anti Twist Wire Rope 9-42mm 54-817KN Breaking Force Stable Lifting
12 Strand Anti Twist Wire Rope 9-42mm 54-817KN Breaking Force Stable Lifting
12 Strand Anti Twist Wire Rope 9-42mm 54-817KN Breaking Force Stable Lifting
12 Strand Anti Twist Wire Rope 9-42mm 54-817KN Breaking Force Stable Lifting
12 Strand Anti Twist Wire Rope 9-42mm 54-817KN Breaking Force Stable Lifting
12 Strand Anti Twist Wire Rope 9-42mm 54-817KN Breaking Force Stable Lifting
12 Strand Anti Twist Wire Rope 9-42mm 54-817KN Breaking Force Stable Lifting
12 Strand Anti Twist Wire Rope 9-42mm 54-817KN Breaking Force Stable Lifting
12 Strand Anti Twist Wire Rope 9-42mm 54-817KN Breaking Force Stable Lifting
12 Strand Anti Twist Wire Rope 9-42mm 54-817KN Breaking Force Stable Lifting
Specifications
Structure :
12 Strand / 18 Strand
MOQ :
1 Piece
Weight :
0.3-4.22kg/m
Model Number :
12 Strand / 18 Strand
Name :
Anti Twisting Braided Steel Rope
Place of Origin :
Ningbo, China
Certification :
ISO 9001
Construction :
Braided, torque-balanced
Brand Name :
Suntech
Payment Terms :
L/C,T/T
Delivery Time :
3-7 working days for stock, 15-25 days for bulk orders
Material :
High-carbon steel wire
Price :
Negotiable
Warranty :
1 year
Supply Ability :
30000 Pieces per Month
Diameter :
9-42mm
Breaking Force :
54-817KN
Packaging Details :
Plywood case with steel-banded reinforcement for export
Description
Anti Twist Wire Rope for Stable Lifting of Long and Asymmetrical Loads
Anti twist wire rope is made for lifts where a standard wire rope would spin. Its braided, torque-balanced construction keeps a suspended load from rotating, so long or asymmetrical items such as transmission tower sections, steel beams and conductor reels stay under control. This range covers diameters from 9mm to 42mm in 12-strand and 18-strand construction, with minimum breaking forces from 54KN to 817KN.
Why Torque-Balanced Rope Matters
  • Stops load spin: the braided strands counter the rotation that builds up in ordinary wire rope.
  • Holds load orientation: helps place heavy components accurately without fighting the load.
  • Suits long and asymmetrical lifts: transmission tower sections, steel beams and conductor reels.
  • Reduces hardware wear: less twisting fatigue on sheaves, blocks and hooks.
  • Works in multi-sheave systems: predictable behaviour without managing built-up torque.
  • Good flexibility: easier to handle on site than stiff rotation-resistant ropes.
Technical Specifications
Item No. Structure Diameter (mm) Min. Breaking Force (KN) Weight (kg/m)
18117 12 Strand 9 54 0.3
18118 12 Strand 11 81 0.45
18119 12 Strand 13 115 0.58
18120 12 Strand 15 157 0.82
18121 12 Strand 18 205 1.03
18122 12 Strand 20 260 1.33
18123 12 Strand 23 320 1.63
18124 12 Strand 25 387 2.03
18125 12 Strand 27 461 2.37
18126 12 Strand 28 520 2.6
18127 12 Strand 30 560 3.12
18140 18 Strand 21 173 0.87
18141 18 Strand 24 236 1.24
18151 18 Strand 27 309 1.55
18152 18 Strand 30 389 1.99
18153 18 Strand 33 481 2.45
18154 18 Strand 36 581 3.05
18155 18 Strand 39 692 3.56
18156 18 Strand 42 817 4.22
Material and Construction
  • High-carbon steel wire for strength and fatigue resistance
  • Braided, torque-balanced 12-strand and 18-strand construction
  • Protective coating options for outdoor and marine exposure
Quality Control and Testing
Rope is braided from high-carbon steel wire and inspected strand by strand during production. Minimum breaking force is checked against the specification for each diameter before a batch is released, and products are made under ISO 9001 certified quality management with a test record supplied with every shipment.
Typical Applications
  • Overhead transmission line construction
  • Substation equipment and transformer lifting
  • Steel structure and tower section rigging
  • Multi-sheave block and tackle systems
  • General heavy hoisting and pulling
Factory Support and Buyer Assurance
  • Manufacturer-direct pricing with no trading-layer mark-up
  • OEM and ODM available with custom diameters, lengths, coatings and terminations
  • Technical support for rope selection and load matching
  • Matching rigging hardware available
  • 12-month limited warranty

12 Strand Anti Twist Wire Rope 9-42mm 54-817KN Breaking Force Stable Lifting

Tell us your maximum load, rope diameter and required length, and our engineers will recommend the right structure and confirm a factory-direct quotation within one working day.
