Bolt Type Anti-Twist Steel Rope Gripper Come Along Clamp with 20-100KN Rated Load for 7-24mm Diameter Ropes
Bolt Type Anti-Twist Steel Rope Gripper Come Along Clamp with 20-100KN Rated Load for 7-24mm Diameter Ropes
Bolt Type Anti-Twist Steel Rope Gripper Come Along Clamp with 20-100KN Rated Load for 7-24mm Diameter Ropes
Bolt Type Anti-Twist Steel Rope Gripper Come Along Clamp with 20-100KN Rated Load for 7-24mm Diameter Ropes
Bolt Type Anti-Twist Steel Rope Gripper Come Along Clamp with 20-100KN Rated Load for 7-24mm Diameter Ropes
Bolt Type Anti-Twist Steel Rope Gripper Come Along Clamp with 20-100KN Rated Load for 7-24mm Diameter Ropes
Bolt Type Anti-Twist Steel Rope Gripper Come Along Clamp with 20-100KN Rated Load for 7-24mm Diameter Ropes
Bolt Type Anti-Twist Steel Rope Gripper Come Along Clamp with 20-100KN Rated Load for 7-24mm Diameter Ropes
Specifications
Payment Terms :
L/C,T/T
Model :
SKGF
Supply Ability :
500 PCS/Month
Name :
Bolt Type Anti Twist Steel Rope Gripper
Model Number :
SKGF
Packaging Details :
Plywood Case
MOQ :
1 PCS
Delivery Time :
3-7days
Price :
Negotiable
Rated load :
20-100KN
Diameter :
7-24mm
Certification :
ISO
Place of Origin :
Ningbo
Brand Name :
Suntech
Description

Bolt Type Anti-Twist Steel Rope Gripper Come Along Clamp 20-100KN


Product Overview

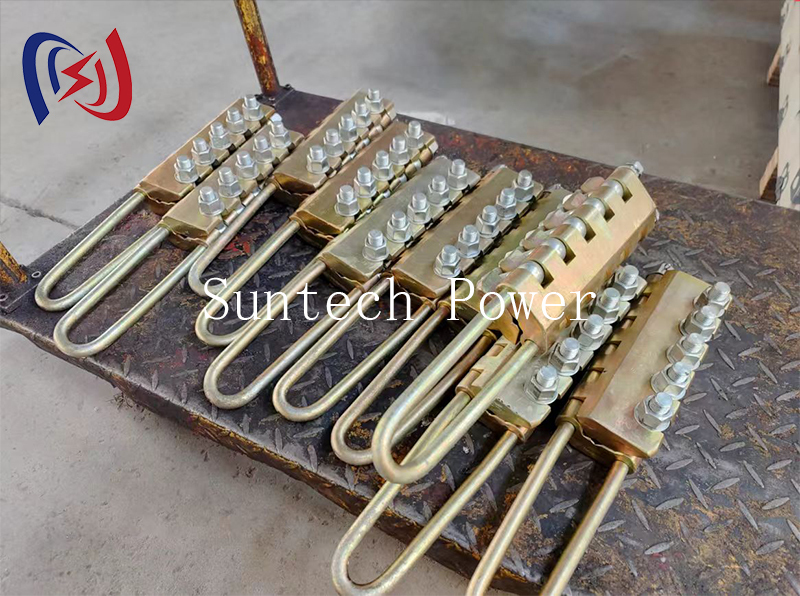

This bolt type anti-twist steel rope gripper come along clamp is fabricated from high tensile steel, with two halves hinged on one side and closed by high tensile bolts and nuts on the other. It is suitable for gripping anti-twisting steel rope for conductor stringing, covering rated loads from 20KN to 100KN for rope diameters of 7-24mm. The secure bolt closure ensures firm, reliable grip without rope twist or slippage.

Technical Specifications

Item No.

Model

Rated Load (KN)

Applicable Anti-Twist Rope (mm)

Weight (kg)

13171

SKGF-2

20

7, 9

5.6

13172

SKGF-3

30

11

5.6

13173

SKGF-5

50

13, 15

18

13174

SKGF-6

60

16, 18

18

13175

SKGF-8

80

20

20

13176

SKGF-10

100

22, 24

20

Applications

· Gripping anti-twist steel rope during conductor stringing

· Tensioning and holding round strand wire ropes

· Temporary anchoring of pull ropes on transmission lines

· Overhead line construction and maintenance operations

Product Advantages

· High Tensile Steel Body — fabricated from high tensile steel for maximum strength and resistance to deformation under 20-100KN loads.

· Hinged Two-Half Design with Bolt Closure — one side hinged, the other closed by high tensile bolts and nuts, giving a secure, twist-free grip on round strand wire rope.

· Anti-Twist Rope Compatibility — specifically designed for anti-twisting steel rope of 7-24mm diameter, preventing rope rotation during stringing.

· Wide Load Range 20-100KN — six models cover rated loads from 20KN to 100KN, matching different conductor stringing tension requirements.
