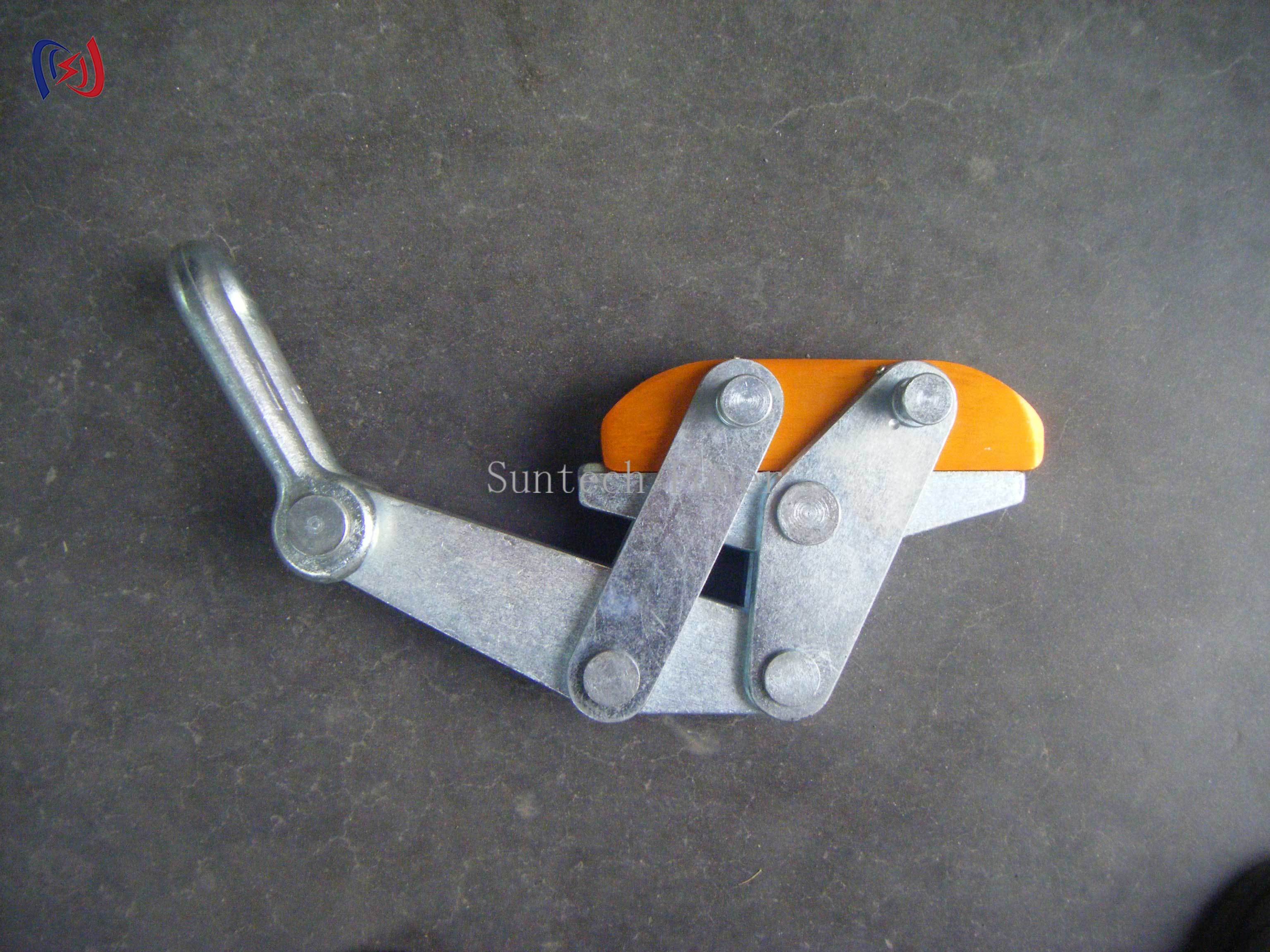

SKG Heavy Duty Come Along Clamp 50-200KN for Anti-Twist Steel Rope 11-30mm Wire Gripper
SKG Heavy Duty Come Along Clamp 50-200KN for Anti-Twist Steel Rope 11-30mm Wire Gripper
SKG Heavy Duty Come Along Clamp 50-200KN for Anti-Twist Steel Rope 11-30mm Wire Gripper
SKG Heavy Duty Come Along Clamp 50-200KN for Anti-Twist Steel Rope 11-30mm Wire Gripper
SKG Heavy Duty Come Along Clamp 50-200KN for Anti-Twist Steel Rope 11-30mm Wire Gripper
SKG Heavy Duty Come Along Clamp 50-200KN for Anti-Twist Steel Rope 11-30mm Wire Gripper
SKG Heavy Duty Come Along Clamp 50-200KN for Anti-Twist Steel Rope 11-30mm Wire Gripper
SKG Heavy Duty Come Along Clamp 50-200KN for Anti-Twist Steel Rope 11-30mm Wire Gripper
Specifications
Model Number :
SKG
MOQ :
1 PCS
Delivery Time :
3-7days
Price :
Negotiable
Rated Load :
50-200KN
Warranty :
1 year
Packaging Details :
Plywood Case
Payment Terms :
T/T,L/C
Model :
SKG
Supply Ability :
500 PCS/Month
Name :
Anti Twisting Steel Rope Gripper
Certification :
ISO
Place of Origin :
Ningbo
Brand Name :
Suntech
Description

SKG Heavy Duty Come Along Clamp 11-30mm Rope for Stringing


Product Overview

This heavy duty come along clamp is applied to grip anti-twist steel rope, featuring a single V-type clipper gap with two side-load symmetrical acting force for lighter weight. The clamp is forged from high-class steel with maximum durability, covering rated loads from 50KN to 200KN for applicable rope sizes from □11-15mm to □26-30mm. It is ideal for tensioning and holding anti-twist steel ropes during overhead transmission line stringing operations.

Technical Specifications

Item No.

Model

Rated Load (KN)

Applicable Rope (mm)

Weight (kg)

13155

SKG50N

50

□11-15

7

13156

SKG70N

70

□16-18

8

13157

SKG120N

120

□19-21 or □22-24

11.6

13158

SKG200N

200

□26-28 or □30

23.5

Applications

· Gripping and tensioning anti-twist steel ropes

· Conductor stringing and rope pulling operations

· Temporary anchoring of steel ropes during line construction

· Hoisting and pulling applications on transmission line projects

Product Advantages

· High-Class Steel Forging — thick and heavy forged body delivers maximum durability, with all gripping jaws produced using new technology to increase jaw life.

· Symmetric V-Type Loading — single V-type clipper gap with two side-load symmetrical acting force keeps the clamp lighter while maintaining firm grip.

· Enhanced Thickness Pulling Handle — compact smooth gap with reinforced handle provides flexible, easy operation under heavy tension.

· Wide Load Range 50-200KN — four models cover anti-twist steel ropes from □11-15mm to □26-30mm, matching project-specific tension requirements.
