Specifications
Model Number :
SLU
Packaging Details :
Plywood Case
MOQ :
1 PCS
Delivery Time :
3-7days
Price :
Negotiable
Rated Load :
10-250KN
Max dia :
10-32mm
Payment Terms :
L/C,T/T
Model :
SLU
Supply Ability :
500 PCS/Month
Name :
Fixed Joints
Brand Name :
Suntech
Certification :
ISO
Place of Origin :
Ningbo
Description

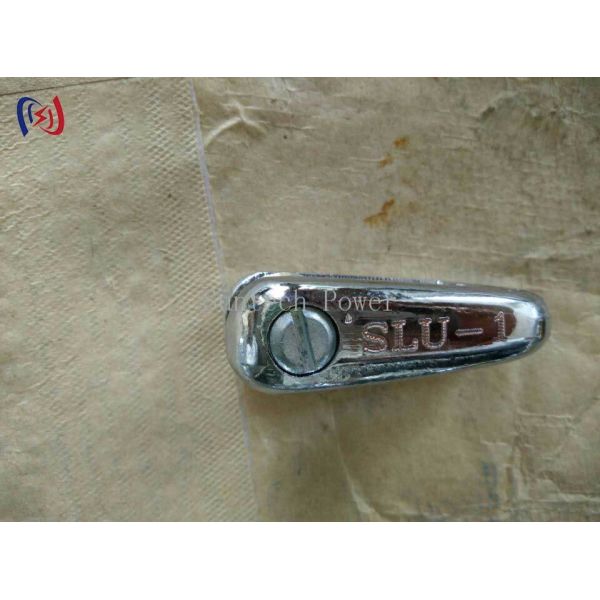

Fixed Joints for Power Transmission Lines 10-250KN Alloy Steel


Product Overview

The SLU series fixed joints are key structural connection components in power transmission systems, with rated loads from 10KN to 250KN. They are used for tower structure connections, cross arm installation, insulator string fixation and temporary support systems. Manufactured from high quality alloy steel with precision machining and hot-dip galvanized anti-corrosion treatment, the precisely matched contact surfaces ensure even load distribution and reliable structural integrity.

Technical Specifications

Model

A (mm)

B (mm)

C (mm)

d (mm)

D (mm)

E (mm)

Rated Load (KN)

Weight (kg)

SLU-1

36

68

18

10

14

29

10

0.2

SLU-3

37

76

20

12

17

31

30

0.22

SLU-5

50

96

23

18

19

42

50

0.6

SLU-8

56

110

28

20

22

50

80

0.8

SLU-10

59

126

30

22

26

54

100

1.2

SLU-13

61

134

32

24

27

56

130

1.3

SLU-15

63

138

37

27

28

58

150

1.4

SLU-25

80

178

44

30

35

72

250

3.0

SLU-28

80

178

44

30

35

72

280

3.0

SLU-32

85

186

42

30

38

80

320

3.9

Applications

· Tower structure connections on transmission lines

· Cross arm installation and fixation

· Insulator string connections

· Temporary support systems during construction

Product Advantages

· Precision Machined Contact Surfaces — even load distribution across the joint, maintaining complete and reliable structural integrity under 10-320KN loads.

· Quality Alloy Steel with Reinforced Stress Points — strengthened at critical stress points for durability in permanent transmission line connections.

· Hot-Dip Galvanized + Weather-Resistant Coating — excellent anti-corrosion performance for decades of outdoor service on towers.

· Fail-Safe Locking and Quick Assembly — optional non-conductive insulation scheme and fail-safe locking mechanism, with pre-drilled holes and locating slots for fast assembly.
