High Strength Aluminum Alloy OPGW Conductor Gripper with 16-45KN Rated Load for 8-20mm Cable Diameter
High Strength Aluminum Alloy OPGW Conductor Gripper with 16-45KN Rated Load for 8-20mm Cable Diameter
High Strength Aluminum Alloy OPGW Conductor Gripper with 16-45KN Rated Load for 8-20mm Cable Diameter
High Strength Aluminum Alloy OPGW Conductor Gripper with 16-45KN Rated Load for 8-20mm Cable Diameter
High Strength Aluminum Alloy OPGW Conductor Gripper with 16-45KN Rated Load for 8-20mm Cable Diameter
High Strength Aluminum Alloy OPGW Conductor Gripper with 16-45KN Rated Load for 8-20mm Cable Diameter
High Strength Aluminum Alloy OPGW Conductor Gripper with 16-45KN Rated Load for 8-20mm Cable Diameter
High Strength Aluminum Alloy OPGW Conductor Gripper with 16-45KN Rated Load for 8-20mm Cable Diameter
Specifications
Model Number :
OPGW
Packaging Details :
Plywood Case
MOQ :
1 PCS
Delivery Time :
3-7days
Price :
Negotiable
Cable diameter :
8-20mm
Rated Load :
16-45KN
Payment Terms :
L/C,T/T
Model :
OPGW
Supply Ability :
500 PCS/Month
Name :
Optical Cable Wire Gripper
Certification :
ISO
Place of Origin :
Ningbo
Brand Name :
Suntech
Description

OPGW Conductor Gripper High Strength Aluminum Alloy 16-45KN


Product Overview

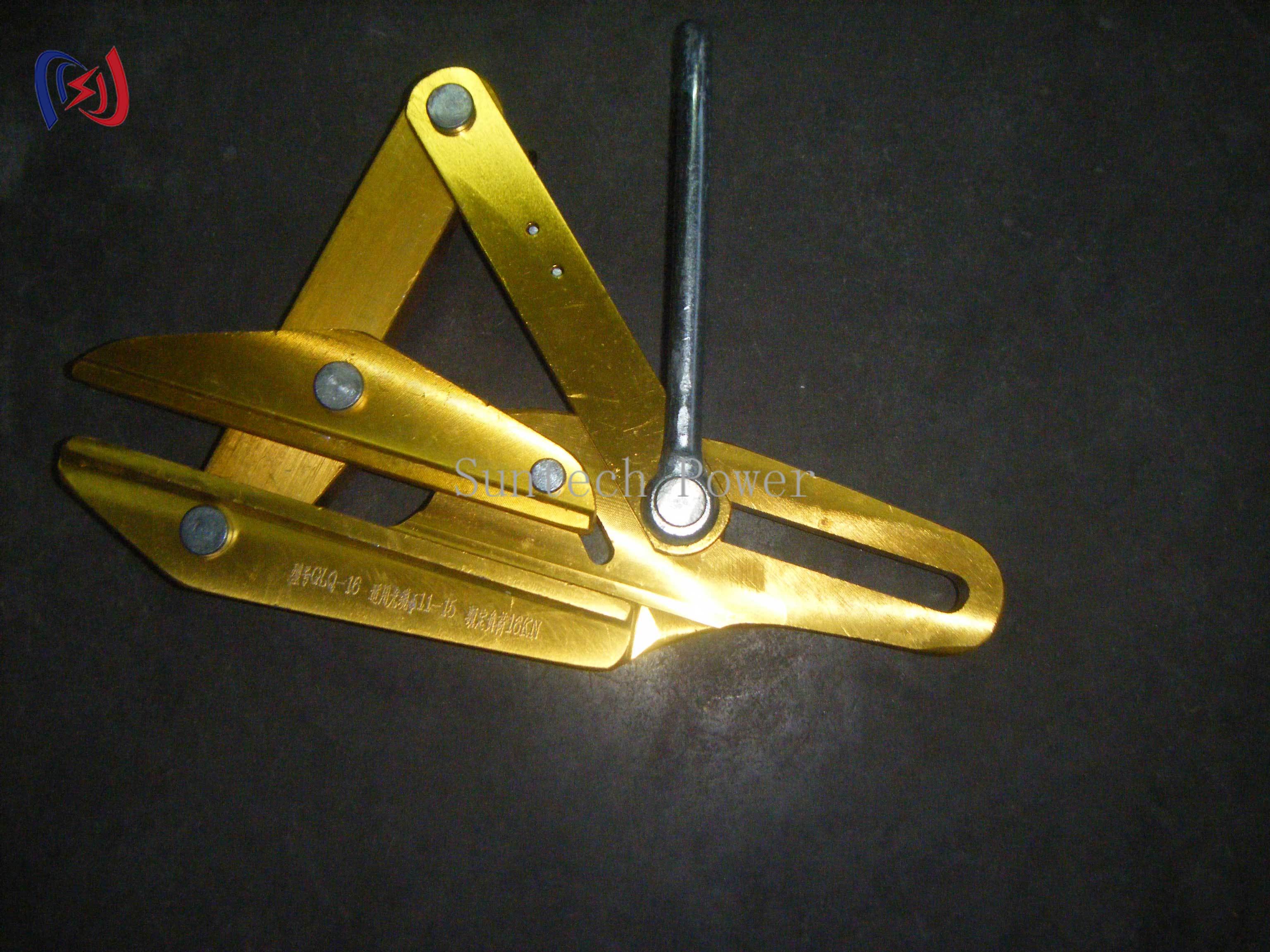

These high performance conductor stringing tools are designed for holding OPGW overhead optical ground wires during fast and accurate power line stringing operations. The forged high-strength aluminum alloy body protects the OPGW effectively while the bolt design prevents slippage and cable damage, covering cable diameters of Φ8-20mm with rated loads of 16-45KN. All gripping jaws are produced with new technology to increase jaw life.

Technical Specifications

Item No.

Cable Dia. (mm)

Rated Load (KN)

Weight (kg)

20101

Φ8-20

25

3.8

20102

Φ20

45

3.8

20103

Φ11-15

16

5.6

20104

Φ15-17

16

5.6

Applications

· OPGW overhead optical ground wire stringing

· Optical ground wire installation on transmission lines

· Fiber optic cable pulling and tensioning

· Fast and accurate power line stringing operations

Product Advantages

· High Strength Aluminum Alloy Forging — forged body protects the OPGW effectively while keeping the tool light for work at height.

· Anti-Slip Bolt Design — bolt design prevents the line from slipping and being hurt during pulling, protecting the inner optical fiber.

· Grip Size Matches Cable Diameter — cable diameter matches grip size to ensure firm clamping and protect the inner fiber from compression damage.

· New-Technology Jaws — all gripping jaws are produced with new technology to increase jaw life and maintain reliable performance.
