Specifications
Model Number :
SLX
Price :
Negotiable
Rated Load :
5-250KN
Max dia :
8-30mm
Packaging Details :
Plywood Case
MOQ :
1 PCS
Delivery Time :
3-7days
Payment Terms :
L/C,T/T
Model :
SLX
Supply Ability :
500 PCS/Month
Name :
Swivel Joint
Brand Name :
Suntech
Certification :
ISO
Place of Origin :
Ningbo
Description

Heavy Duty Swivel Joint 5-250KN for Transmission Line Stringing


Product Overview

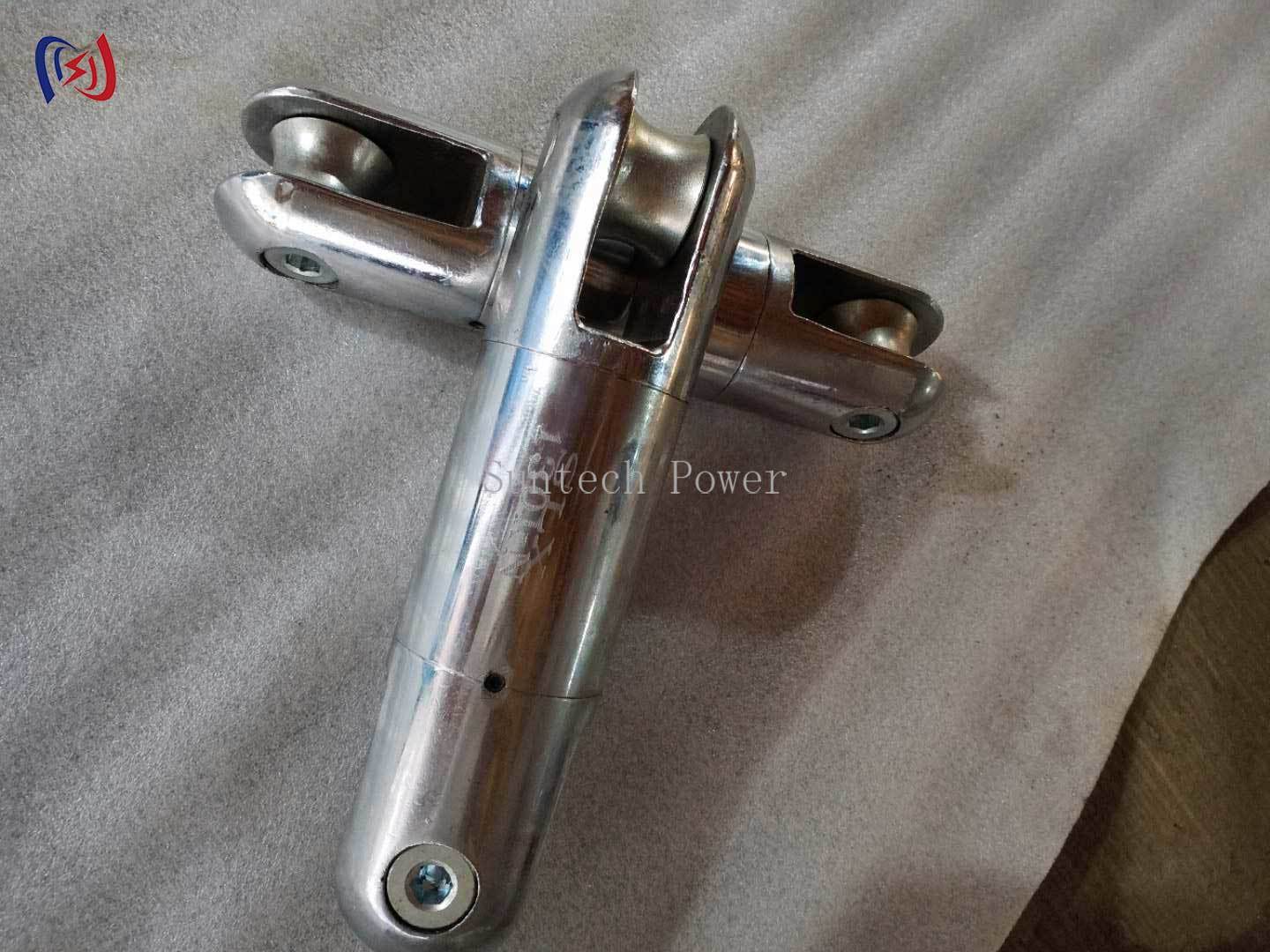

The SLX series heavy duty swivel joint is a key rotating connection component for transmission line stringing construction and maintenance, with rated loads from 5KN to 250KN. It supports 360° rotation to smoothly change cable laying direction and reduce twisting. Featuring a forged steel body with reinforced bearing system, locking mechanism and cable protection design, it is widely used in overhead line stringing, underground cable pulling and substation equipment connection.

Technical Specifications

Item No.

Model

Rated Load (KN)

Main Size (mm)

Weight (kg)

17121

SLX-0.5

5

19

0.20

17122

SLX-1

10

30

0.40

17123

SLX-2

20

35

0.55

17124

SLX-3

30

37

0.65

17125

SLX-5

50

42

1.50

17126

SLX-8

80

57

2.40

17127

SL130

130

62

3.50

17128

SL180

180

75

7.20

17129

SL250

250

85

10.5

17130

SL250V

250

80

8.0

Applications

· Overhead transmission line stringing and maintenance

· Underground cable pulling and laying

· Substation equipment connection

· Direction changes in cable routing to prevent twisting

Product Advantages

· 360° Rotation Capability — smooth rotation reduces cable twisting and maintains conductor alignment during stringing and pulling operations.

· Forged Steel Body with Reinforced Bearings — forged steel body withstands extreme loads up to 250KN, with a reinforced bearing system for heavy duty durability.

· Cable-Friendly Rounded Edges — rounded edges prevent cable sheath abrasion and protect contact surfaces during pulling.

Locking Mechanism and Safety Design — locking mechanism prevents accidental disconnection, with high-visibility safety marking and self-lubricating bearings for long service life.
