Stainless Steel Wire Mesh Connector for ACSR70-1250 Conductors with Zinc-Nickel Alloy Coating
Stainless Steel Wire Mesh Connector for ACSR70-1250 Conductors with Zinc-Nickel Alloy Coating
Stainless Steel Wire Mesh Connector for ACSR70-1250 Conductors with Zinc-Nickel Alloy Coating
Stainless Steel Wire Mesh Connector for ACSR70-1250 Conductors with Zinc-Nickel Alloy Coating
Stainless Steel Wire Mesh Connector for ACSR70-1250 Conductors with Zinc-Nickel Alloy Coating
Stainless Steel Wire Mesh Connector for ACSR70-1250 Conductors with Zinc-Nickel Alloy Coating
Stainless Steel Wire Mesh Connector for ACSR70-1250 Conductors with Zinc-Nickel Alloy Coating
Stainless Steel Wire Mesh Connector for ACSR70-1250 Conductors with Zinc-Nickel Alloy Coating
Specifications
Model Number :
SLW
MOQ :
1 PCS
Delivery Time :
3-7days
Price :
Negotiable
Rated Load :
15-120KN
Breaking Load :
30-250KN
Payment Terms :
L/C,T/T
Model :
SLW
Supply Ability :
500 PCS/Month
Name :
Conductor Mesh Sock Joints
Packaging Details :
Plywood Case
Brand Name :
Suntech
Certification :
ISO
Place of Origin :
Ningbo
Description

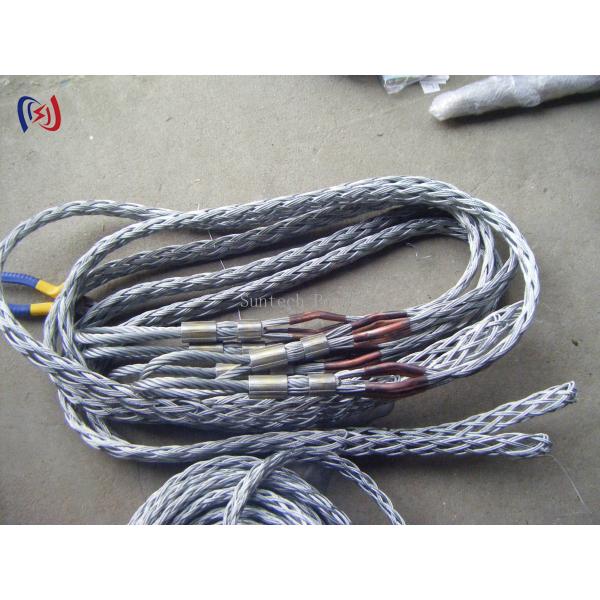

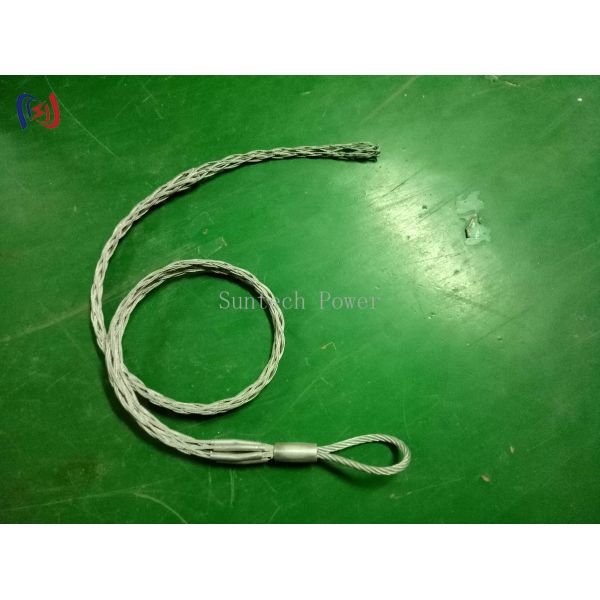

Stainless Steel Wire Mesh Connector for ACSR70-1250 Conductors


Product Overview

The SLW(S) series conductor mesh sock joints are specially designed for conductor mesh connection in transmission line construction and maintenance, with rated loads of 15-120KN and breaking loads of 30-250KN, fitting ACSR70-1250 conductors. The high-strength stainless steel mesh with interlocking mesh design provides uniform grip, while the zinc-nickel alloy coating offers corrosion protection. It is suitable for overhead line terminations, substation cable connections and underground cable joints.

Technical Specifications

Item No.

Model

Applicable Conductor (ACSR)

Rated Load (KN)

17161

SLW(S)-1.5

ACSR70-95

15

17162

SLW(S)-2

ACSR120-150

20

17163

SLW(S)-2.5

ACSR185-240

25

17164

SLW(S)-3

ACSR300-400

30

17165

SLW(S)-4

ACSR500-600

40

17166

SLW(S)-5

ACSR720

50

17167

SLW(S)-7

ACSR900

70

17168

SLW(S)-8

ACSR1000-1120

80

17169

SLW(S)-12

ACSR1250

120

Applications

· Overhead transmission line terminations

· Substation cable connections

· Underground cable joints

· Temporary repair and emergency line fixing

Product Advantages

· Interlocking Mesh Design — interlocking mesh pores provide firm holding with uniform pressure distribution, delivering 40% stronger grip than standard connectors.

· High-Strength Stainless Steel Mesh — reinforced at stress points for durability, with rated loads of 15-120KN and breaking loads up to 250KN.

· Zinc-Nickel Alloy Coating — anti-corrosion coating suits long-term outdoor use in humid and coastal environments.

· Tool-Free Quick Assembly — color-coded size identification and tool-free assembly make installation fast; optional non-conductive insulation scheme with visual inspection window.


Stainless Steel Wire Mesh Connector for ACSR70-1250 Conductors with Zinc-Nickel Alloy Coating
