Specifications
Model Number :
1000
Wire Dia :
2.5-32mm
Packaging Details :
Plywood Case
MOQ :
1 PCS
Delivery Time :
3-7days
Price :
Negotiable
Rated Laod :
10-30KN
Payment Terms :
L/C,T/T
Model :
1000
Supply Ability :
500 PCS/Month
Name :
Universal Gripper
Certification :
ISO
Place of Origin :
Ningbo
Brand Name :
Suntech
Description

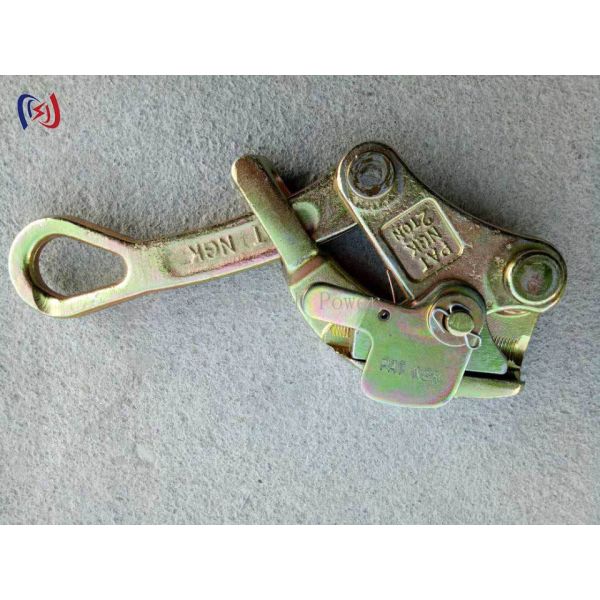

Universal Wire Rope Gripper Come Along Clamp 4-32mm 10-30KN


Product Overview

This universal wire rope gripper come along clamp is forged from alloy steel with heat treatment, providing strong anti-tension and high occlusion strength that resists sliding and deformation. It is a versatile wire rope gripping solution for high competition industries, covering applicable wire diameters from 4mm to 32mm with rated loads of 10-30KN. The strong anti-tension rack keeps the rope securely locked during pulling and lifting operations.

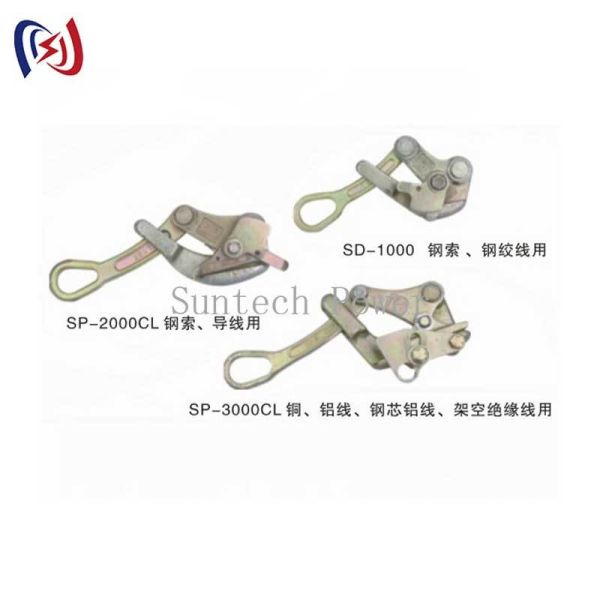

Technical Specifications

Item No.

Model

Rated Load (KN)

Applicable Wire Dia. (mm)

Weight (kg)

13310

1000

10

4-14

1.3

13311

2000

20

7-20

1.6

13312

3000

30

16-32

2.8

Applications

· Wire rope tensioning and pulling

· Conductor and cable stringing operations

· Rigging, hoisting and lifting applications

· Temporary anchoring of ropes in construction

Product Advantages

· Forged Alloy Steel with Heat Treatment — delivers high strength and hardness, resisting deformation and wear under heavy pulling loads.

· Strong Anti-Tension Rack — high occlusion strength keeps the wire rope securely locked, preventing sliding even under rated load.

· Universal 4-32mm Coverage — three models grip wire ropes from 4mm to 32mm diameter, covering most common rope sizes in one product family.

· Compact and Lightweight — only 1.3-2.8kg per unit, easy to handle during pulling, lifting and rigging work.
