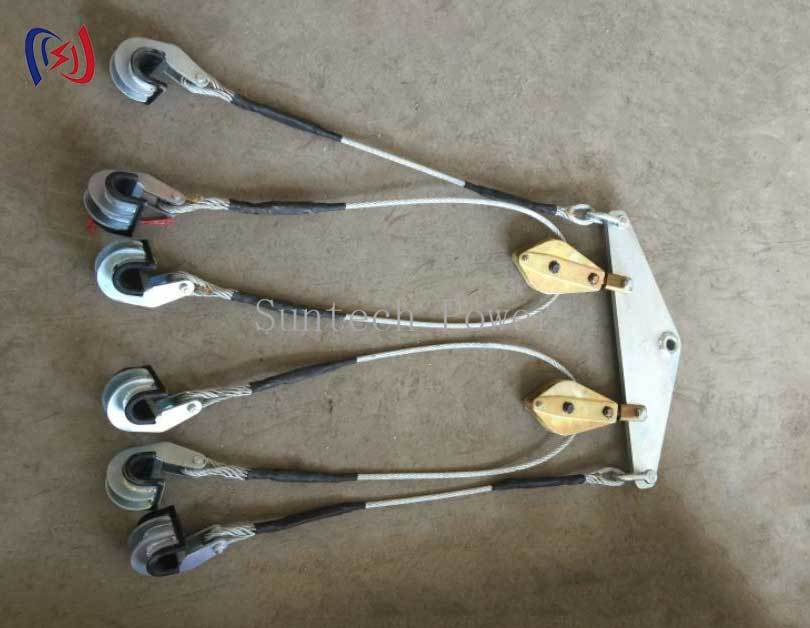

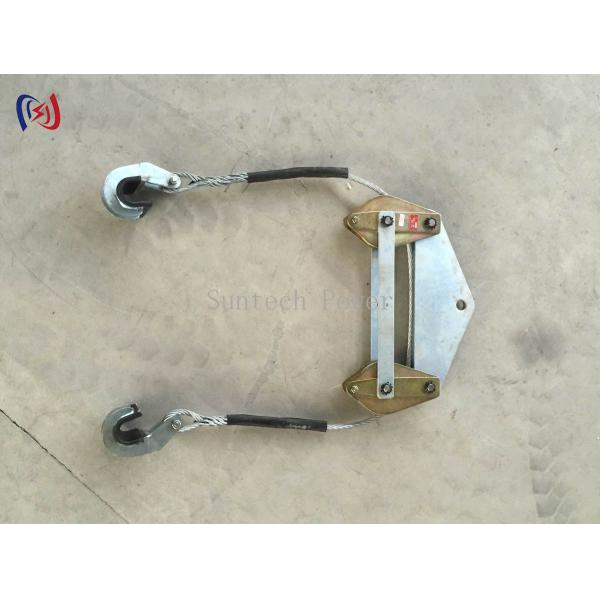

ST Series Multiple Bundle Conductor Lifter for 2-8 Conductors with 24-320KN Rated Load and Aluminum Alloy Frame
ST Series Multiple Bundle Conductor Lifter for 2-8 Conductors with 24-320KN Rated Load and Aluminum Alloy Frame
ST Series Multiple Bundle Conductor Lifter for 2-8 Conductors with 24-320KN Rated Load and Aluminum Alloy Frame
ST Series Multiple Bundle Conductor Lifter for 2-8 Conductors with 24-320KN Rated Load and Aluminum Alloy Frame
ST Series Multiple Bundle Conductor Lifter for 2-8 Conductors with 24-320KN Rated Load and Aluminum Alloy Frame
ST Series Multiple Bundle Conductor Lifter for 2-8 Conductors with 24-320KN Rated Load and Aluminum Alloy Frame
Specifications
Model Number :
ST
MOQ :
1 PCS
Delivery Time :
3-7days
Payment Terms :
L/C,T/T
Model :
ST
Supply Ability :
500 PCS/Month
Name :
Multiple Fission Conductor Lifter
Price :
Negotiable
Rated Load :
24-320KN
Hook slot length :
60-160mm
Packaging Details :
Plywood Case
Certification :
ISO
Place of Origin :
Ningbo
Brand Name :
Suntech
Description

Multiple Bundle Conductor Lifter ST Series 2-8 Conductors


Product Overview

This heavy duty multiple fission conductor lifter is essential equipment for handling multiple bundle conductors, specially designed for transmission line construction and maintenance. It simultaneously lifts 2-8 bundle conductors while maintaining proper spacing, with rated loads from 2x12KN to 8x40KN. The high-grade aluminum alloy frame with reinforced lifting points, non-marring contact surfaces and load-rated safety locks deliver safe, efficient multi-conductor lifting.

Technical Specifications

Item No.

Model

Rated Load (KN)

Hook Slot Length (mm)

Weight (kg)

Note

19112

ST25-2

2x12

120

13

Two

19113

ST50-2

2x15

160

25

Two

19114

ST80-2

2x40

250

40

Two

19108

ST36-3

3x12

120

21

Three

19109

ST75-3

3x25

160

35

Three

19110

ST120-3

3x40

250

60

Three

19115

ST48-4

4x12

120

35

Four

19116

ST100-4

4x25

160

60

Four

19117

ST160-4

4x40

250

90

Four

19118A

ST150-6

6x25

160

70

Six

19118B

ST240-6

6x40

250

110

Six

19119A

ST200-8

8x25

160

120

Eight

19119B

ST320-8

5+6

250

160

Eight

Applications

· Lifting multiple bundle conductors simultaneously

· Transmission line construction and maintenance

· Conductor spacing maintenance during lifting operations

· Heavy bundle conductor installation and repair

Product Advantages

· Multiple Bundle Support — simultaneously lifts 2-8 bundle conductors and maintains proper spacing during lifting, covering 13 models from 2x12KN to 8x40KN.

· Robust Aluminum Alloy Frame — high-grade aluminum alloy frame with reinforced lifting points handles heavy bundle loads reliably.

· Conductor Protection — non-marring contact surfaces and smooth edges prevent insulation damage during lifting.

· Safety and Efficiency — load-rated safety locks with non-conductive lifting arms; quick-adjust mechanism supports one-handed operation for fast rigging.
