Specifications
Brand Name :
Suntech Tower
Model Number :
SWL
Certification :
ISO, CE
Place of Origin :
China
MOQ :
1 PCS
Price :
Get the newest price
Payment Terms :
L/C,T/T
Supply Ability :
9000 PCS/Month
Delivery Time :
3-7days
Packaging Details :
Plywood Case
Name :
Cable Mesh Sock joints
Item No. :
21361-21370
Model :
SWL-16-SWL-150
Cable Diameter :
12-150mm
Rated Load :
10-30KN
Weight :
0.8-2.6KG
Description

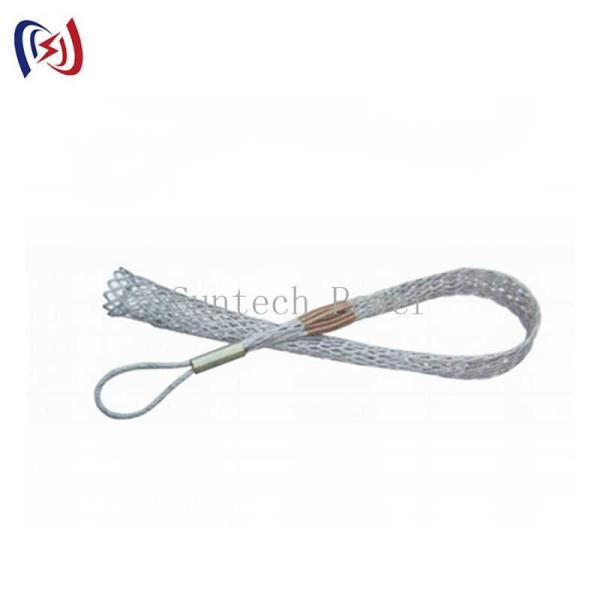

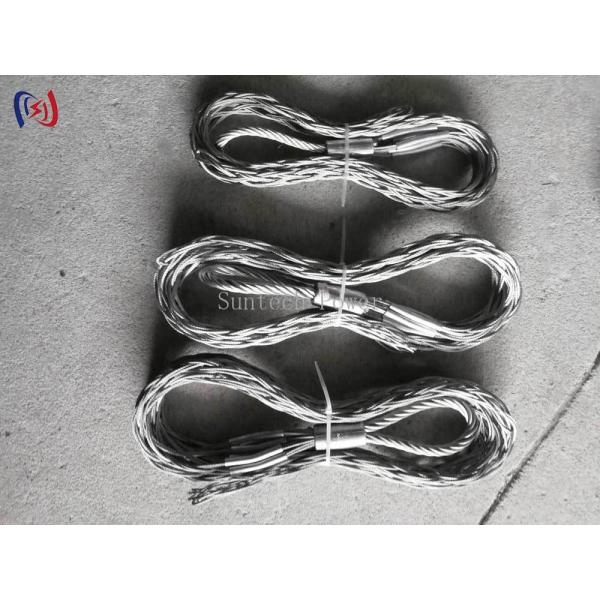

Cable Mesh Sock Joints Heavy Duty Termination System For Power Line Construction​


​​Core Design Features​​

  • ​​High-strength stainless steel mesh​​ (304/316 grade) with flexible braiding
  • ​​Forged carbon steel end fittings​​ (Grade 8.8) with hot-dip galvanized coating
  • ​​Working Load Limit (WLL):​​ 5-50 tons (color-coded identification)
  • ​​Compatible with 15-80mm diameter cables​​ (XLPE/EPR/OPGW types)
  • ​​Interchangeable mesh sleeves​​ for different cable types (3 standard sets)
  • ​​Mechanical overload protection​​ via shear pin (fails at 150% WLL)


​​Operational Advantages​​
✔ ​​Uniform pressure distribution​​ prevents cable insulation damage
✔ ​​40% faster installation​​ vs traditional cable grips
✔ ​​Corrosion-resistant​​ (ISO 9227 C5-M class for harsh environments)
✔ ​​Quick-change sleeve system​​ (tool-free in <90 seconds)
✔ ​​Integrated load indicator​​ with visual tension marks


​​Safety Certifications​​
✓ ​​IEC 60502​​ cable accessory standard compliance
✓ ​​IEEE 404​​ cable joint testing requirements
✓ ​​EN 50393​​ cable accessories for HV applications
✓ ​​Non-sparking materials​​ (ATEX Zone 2 compliant)


​​Maintenance Specifications​​
• ​​Self-cleaning mesh design​​ requires no lubrication
• ​​Field-replaceable wear parts​​ using standard tools
• ​​10,000-cycle​​ service life guarantee
• ​​UV-resistant markings​​ for long-term identification


​​Typical Applications​​
➔ ​​HV cable pulling termination​​
➔ ​​Submarine cable installation​​
➔ ​​Underground cable pulling heads​​
➔ ​​Temporary cable support systems​​
➔ ​​Cable splicing tension holding​


Item number Model

Applicable

Cable Diameter

(mm)

Rated Load

(KN)

Weight

(kg)
21361 SWL-16 Φ12-16 10 0.8
21362 SWL-20 Φ16-20 10 0.8
21363 SWL-25 Φ20-25 15 1.0
21364 SWL-37 Φ25-37 15 1.0
21365 SWL-50 Φ37-50 15 1.0
21366` SWL-60 Φ50-60 25 2.4
21367 SWL-80 Φ60-80 25 2.4
21368 SWL-100 Φ80-100 25 2.4
21369 SWL-120 Φ100-120 30 2.6
21370 SWL-150 Φ120-150 30 2.6


Cable Mesh Sock Joints Heavy Duty Termination System For Power Line Construction​
