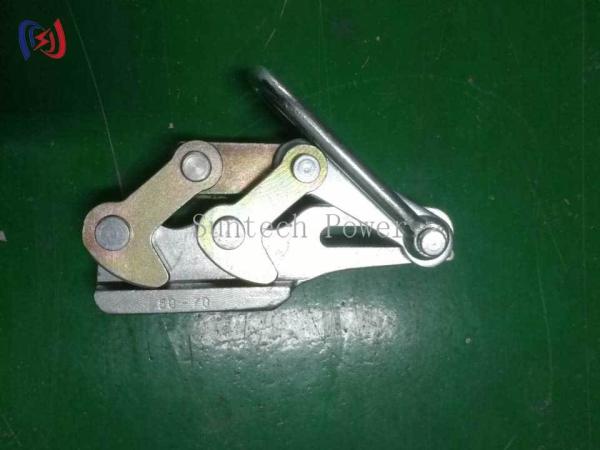

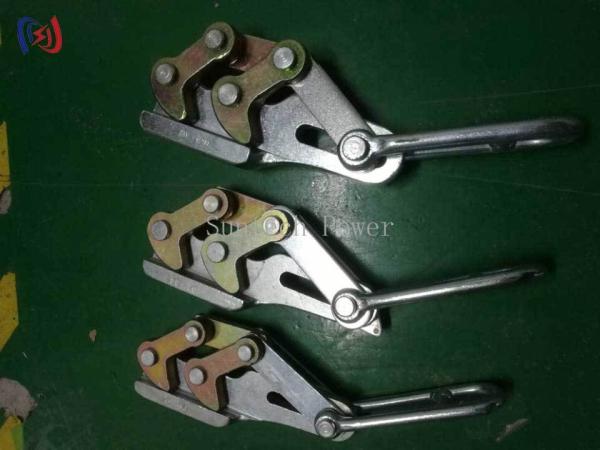

Dual Cam Earth Wire Gripper Industrial Grade Clamp For Overhead Ground Wire Work​

Core Design Features​​

• ​​Dual-cam locking mechanism​​ with 180° opposed cam profiles for balanced force distribution
• ​​Aerospace-grade aluminum alloy​​ (7075-T6) main body with stainless steel cam components
• ​​Self-adjusting jaw pressure​​ adapts to 8-16mm diameter earth wires (including OPGW 12-48 fibers)
• ​​Working Load Limit (WLL):​​ 10-50kN (color-coded by capacity)
• ​​Non-marring nylon jaw inserts​​ prevent damage to wire coatings
• ​​Integrated load indicator​​ shows real-time clamping force

​​Operational Advantages​​
✔ ​​40% faster installation​​ vs traditional screw-type clamps
✔ ​​Automatic grip compensation​​ maintains tension during vibration
✔ ​​One-handed operation​​ with ergonomic lever (EN 1005-2 compliant)
✔ ​​Corrosion-resistant​​ (ISO 9227 C5-M class for coastal areas)
✔ ​​Dual safety locks​​ prevent accidental release

​​Safety Certifications​​
✓ ​​IEEE 1138​​ OPGW installation standard compliance
✓ ​​OSHA 1910.269​​ live-line work certified
✓ ​​EN 13414-1:2020​​ dynamic load testing
✓ ​​Non-conductive materials​​ (100kV dielectric strength)

​​Maintenance Specifications​​
• ​​Self-lubricating cam bearings​​ (10,000-cycle service life)
• ​​Tool-free jaw replacement​​ in <30 seconds
• ​​UV-stabilized polymer components​​ (MIL-STD-810G UV resistance)

​​Typical Applications​​
➔ ​​OPGW initial stringing operations​​
➔ ​​Dead-end termination on lattice towers​​
➔ ​​Mid-span repair of ground wires​​
➔ ​​Temporary grounding during maintenance​​
➔ ​​High-altitude (>3000m) line projects​

​

​​Optional Accessories​​

• ​​Insulated hot-stick adapter​​ (for 220kV+ live work)
• ​​Laser alignment guide​​ for precise positioning
• ​​Load cell monitoring kit​​ (±0.5% accuracy)
• ​​Arctic-grade version​​ (-40°C operational)
