Specifications
Brand Name :
Suntech Tower
Model Number :
LBNX
Certification :
ISO, CE
Place of Origin :
China
MOQ :
1 PCS
Price :
Negotiation
Payment Terms :
L/C,T/T
Supply Ability :
5000 PCS/Month
Delivery Time :
3-5days
Packaging Details :
Plywood Case
Name :
Inner-suspended Lattice Gin Pole
Item No. :
03131-03605
Range :
8-32m
Section :
300*300-700*700mm
Main part size :
50*50*4-80*80*6mm
Accessory :
25*25*3-50*50*4mm
Safety Factor :
2.5K
Weight :
10.5-75KG/G
Description

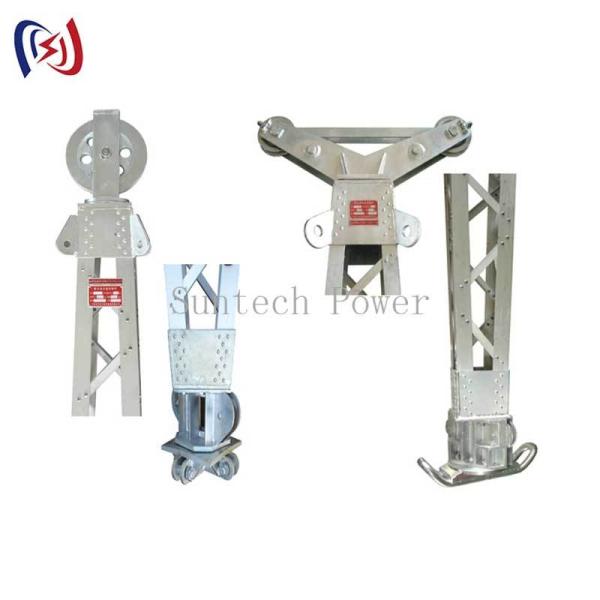

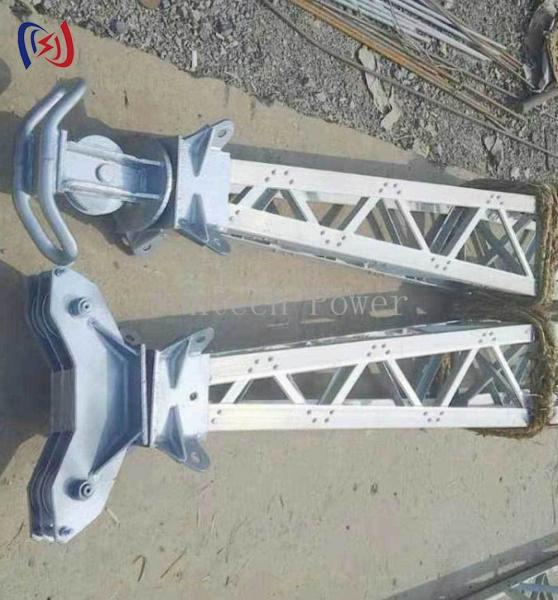

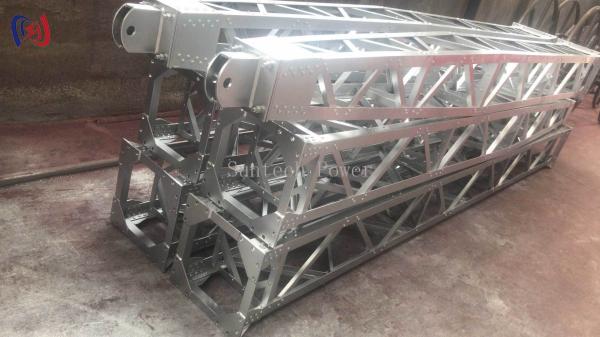

Heavy Duty Inner Suspended Lattice Gin Pole For Transmission Tower Construction


Superior Lifting Performance​​

  • High-strength steel lattice structure with reinforced joints
  • Precision-engineered suspension system for stable operation
  • 360° rotating capability for optimal positioning


​​Electrical Industry Applications​​

  • Essential for transmission tower construction crews
  • Perfect for substation structural installation
  • Ideal for heavy equipment positioning in power plants


​​Advanced Safety Features​​

  • Integrated load monitoring system
  • Redundant safety locking mechanisms
  • Overload protection with visual alarms


​​Material and Construction​​

  • High-grade structural steel components
  • Hot-dip galvanized finish for corrosion resistance
  • Modular design for easy assembly/disassembly


​​Operational Advantages​​

  • Lightweight yet extremely strong lattice design
  • Quick-setup system saves installation time
  • Adaptable to various tower configurations


​​Durability and Reliability​​

  • Weatherproof construction withstands outdoor elements
  • Sealed bearing systems prevent dirt ingress
  • Temperature resistant from -40°C to 80°C


​​Proper Usage Guidelines​​

  • Always inspect before each use
  • Verify all connection points are secure
  • Store in dry conditions when not in use


​​Maintenance Recommendations​​

  • Clean with soft brush after dusty jobs
  • Lubricate moving parts quarterly
  • Check structural integrity annually


​​Why Professionals Choose Our Product​​

  • Trusted by major power companies
  • Field-tested in extreme conditions
  • Backed by 10-year structural warranty


​​Customization Options​​

  • Available in multiple height configurations
  • Custom load capacities upon request
  • Special coatings for harsh environments


​​Purchasing Benefits​​

  • Bulk discounts for utility providers
  • On-site assembly training available
  • Flexible procurement solutions


​​Versatile Applications​​

  • Tower section lifting and positioning
  • Heavy equipment installation
  • Temporary structural support
  • Emergency repair situations


​​Safety Compliance​​

  • Meets ANSI/AISC 360 standards
  • Exceeds OSHA 1926 requirements
  • Certified for electrical infrastructure use


​​Performance Guarantee​​

  • Consistent lifting performance
  • Reliable in all weather conditions
  • Durable construction for long service life


Item number Model

Range
(M)

 Section(MM)

Main part
size
(MM)

Accessory
size
(MM)

Vertical
Load
(KN)


Safety
Factor
(K)


Weight
(KG/M)
03131 LBNX-300A 8-16 300*300 50*50*4 25*25*3 13-38 2.5 10.5
03141 LBNX-300B 11-18 300*300 50*50*5 30*30*3 15-40 2.5 11.0
03151 LBNX-400 12-20 400*400 50*50*5 30*30*3 14-43 2.5 14.6
03511 LBNX-500A 12-20 500*500 60*60*5 30*30*3 34-75 2.5 18
03515 LBNX-500B 14-22 500*500 60*60*5 40*40*3 2.5 20
03521 LBNX-500C 15-23 500*500 70*70*6 40*40*3 42.88 2.5 21
03525 LBNX-500D 17-25 500*500 70*70*6 50*50*4 2.5 22
03531 LBNX-600A 15-23 600*600 60*60*6 40*40*3 38.75 2.5 20
03535 LBNX-600B 17-25 600*600 70*70*6 40*40*3 2.5 21
03541 LBNX-600C 17-25 600*600 70*70*6 50*50*4 58.119 2.5 22
03545 LBNX-600D 17-25 600*600 75*75*6 50*50*4 2.5 24
03601 BNX-300 10-15 300*300 50*50*5 30*30*3 17-35 2.5 33
03602 BNX-400 12-16 400*400 50*50*5 30*30*3 29-51 2.5 43
03603 BNX-500 16-24 500*500 63*63*6 30*30*3 41-93 2.5 54
03604 BNX-600 16-32 600*600 70*70*6 40*40*4 72-221 2.5 63
03605 BNX-700 20-32 700*700 80*80*6 40*40*4 115-294 2.5 75
